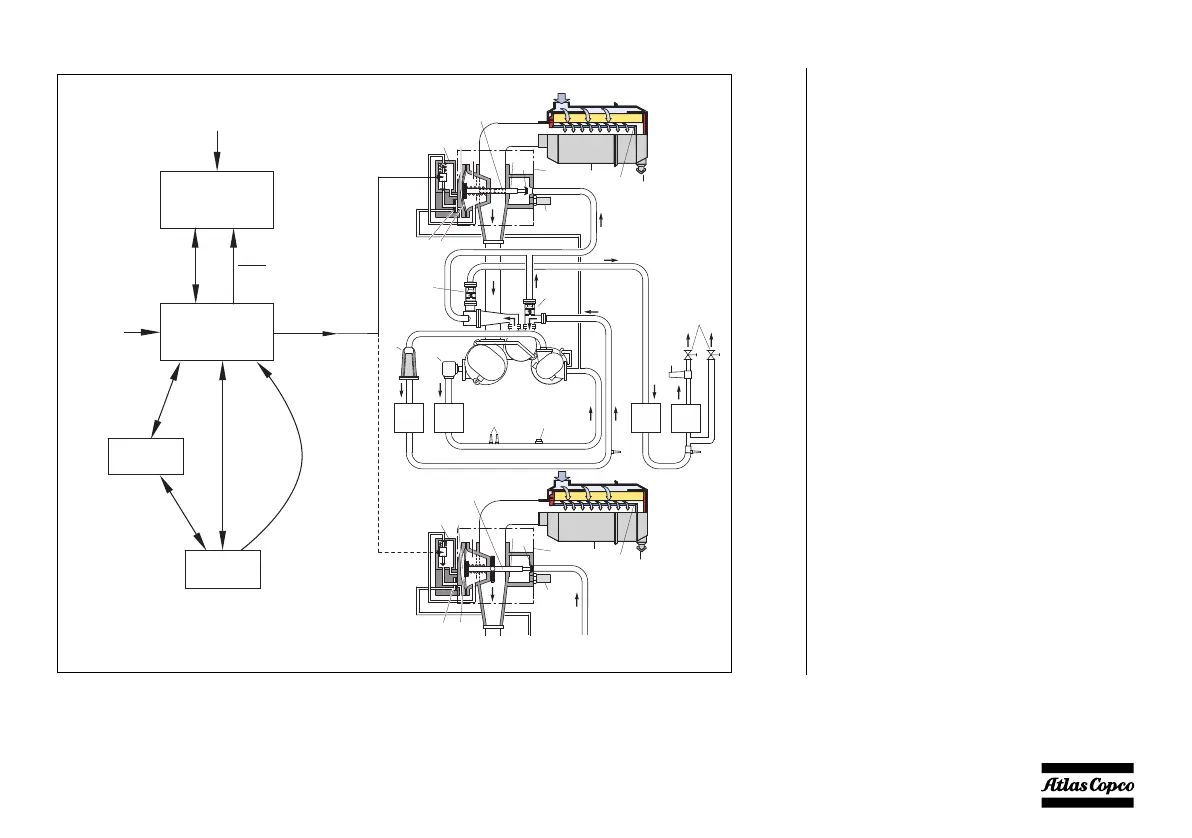

Overview
AC
1
Aftercooler 1
AC
2
Aftercooler 2
AF
C
Air intake filter (compressor)
AOV Air outlet valve
BOS Blow-off silencer
BOV Blow-off valve
BV By-pass valve
C
1
Chamber (unloader assembly)
C
2
Chamber (unloader assembly)
CE
HP
HP compressor element
CE
LP
LP compressor element
CE
MP
MP compressor element
CV Check valve
D Diaphragm (unloader assembly)
IC
LP
LP Intercooler
IC
MP
MP Intercooler
LSV Loading solenoid valve
M Membrane (unloader assembly)
RV Intercooler relief valve
S
1
Air outlet silencer (compressor element)
S
2
Air outlet silencer (compressor element)
SC Safety cartridge
SV
MP
MP safety valve
SV
HP
HP safety valve
TV Throttle valve (unloader assembly)
UA Unloader assembly
UP Unloader piston (unloader assembly)
UV Unloading valve (unloader assembly)
VV Vacuator valve (dust ejector)
WS Water separator
BV
CV
IC
LP
C
2
C
1
TV
M
BOS
AF
C
UV
UP
LSV
D
VV
SC
IC
MP
CE
LP
CE
HP
CE
MP
RV
BOV
CV
S
2
S
1
AC
2
AC
1
WS
AOV
SV
HP
C
1
C
2
TV
M
BOS
AF
C
UV
UP
LSV
D
VV
SC
UA
SV
MP
UA
BV
Compressor
Loaded
Compressor
Unloaded
Throttle
valve
signal
Compressor
sensor
inputs
ECM
Pc4003 + UI
CAN J1939
(RPM, Fault codes,... )
ON
OFF
USB
PAC
Engine
sensor
inputs
Compressor
outputs
PC
Remote
control
inputs
Pushbuttons
on UI
PC
control
User
