Mounting options

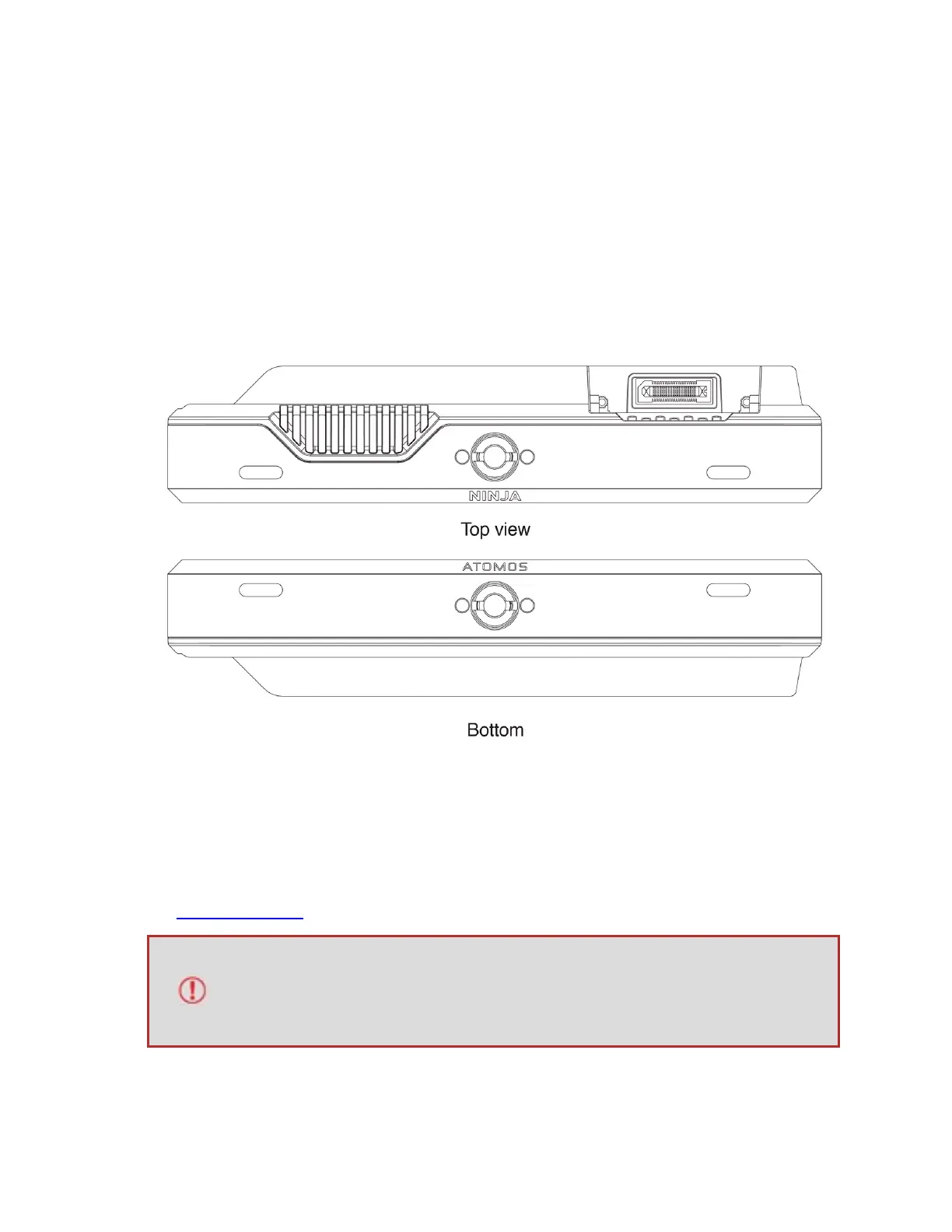

The NINJA V+ is designed for versatility, and includes multiple mounting options. The unit
has 3/8”-16 screw mounts on the top and bottom, and comes with removable 1/4”-20
adapters installed in both locations. This allows you to have the option for a 3/8”-16 or
1/4”-20 screw mount on the top and bottom of your NINJA V+.
The 1/4” adapter is easily removed for mounting on 3/8” fixtures. To remove it, use a flat
head screwdriver to gently loosen the adapter and store your adapter in a safe location.
The mounting points on the top and bottom of the unit feature ARRI style anti-rotational
pins, which allows for secure mounting of your NINJA V+ to a wide range of arms,
mounts, cages and gimbals. It is compatible with the latest mounting solutions from com-
panies such as Shape, SmallRig and Wooden Camera.
For information and to purchase the ATOMOS AtomX 5″ NINJA V+ Cage by SmallRig, visit
the 5" NINJA V Cage page on the ATOMOS website.
Ensure you do not over tighten the screw mounts as this may cause dam-
age. Do not insert a 1/4-20” or 3/8”-16 thread longer than 5mm or you will
risk causing damage to the aluminum chassis.
