The Main Screen - Information Bar

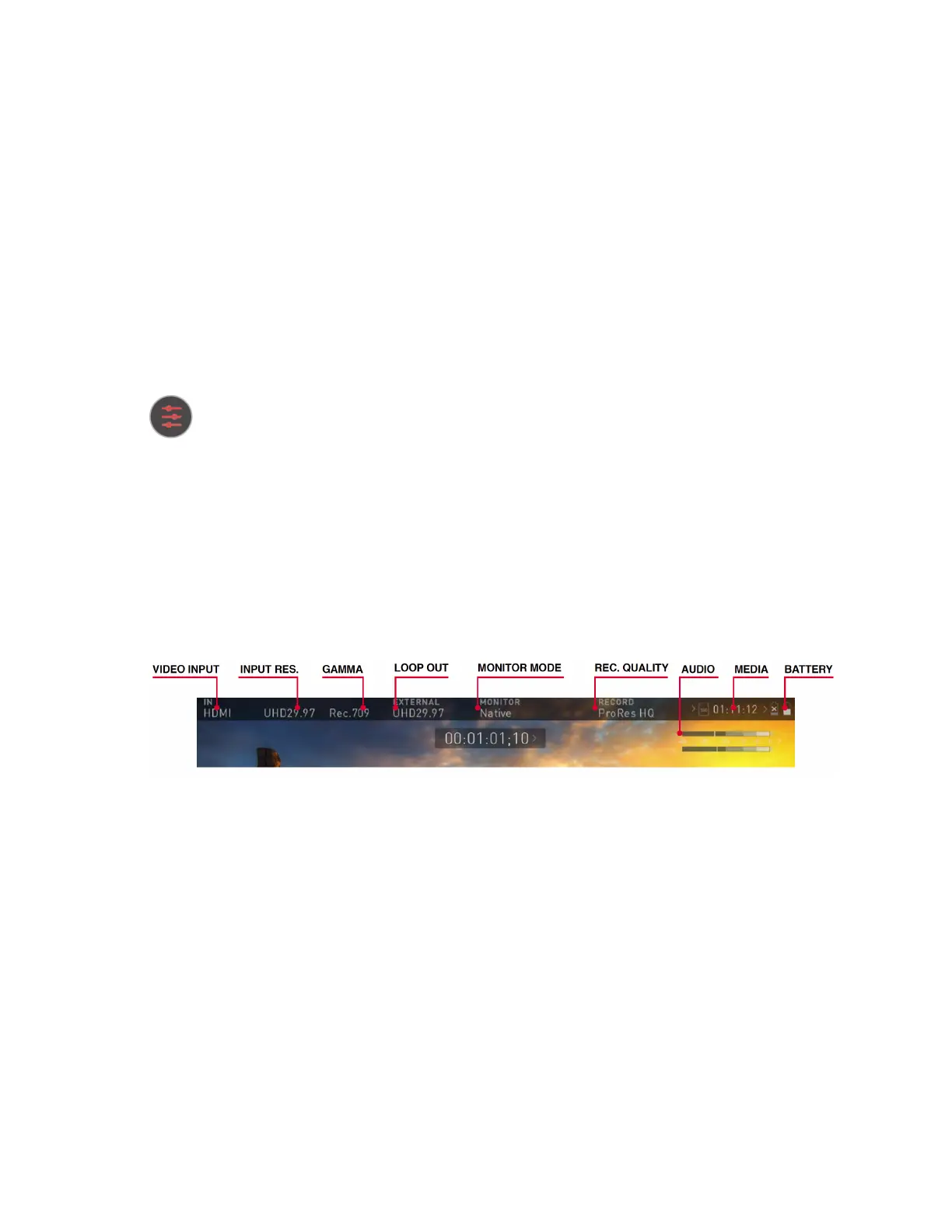

At the top of the SHOGUN STUDIO 2 screen is the area referred to as the Information
Bar.
It displays the input source as SDI or HDMI, the settings of your input device/camera, cur-
rent settings of your SHOGUN STUDIO 2, media, audio, disk capacity and more. Touching
any of these areas will take you to the relevant menu and allow you to make changes to
your setup.
Alternatively you can access these setting by tapping the Record Settings icon. Tapping
the Settings button will open the Record Settings menu, from where you will be able to
navigate to the required tab. Swipe left to see more tabs.
The content in the Information Bar is dependent on what mode you are in, for example
Recording and Monitoring will display the Video Input type, but if you are in Play mode,
Video Input will show the resolution and frame rate of the video clip currently cued or play-
ing.
Monitor Mode / Features
VIDEO INPUT: (Rec & Mon mode) Input source - HDMI or SDI
VIDEO INPUT: (Rec & Mon mode) Resolution and frame rate from input device
VIDEO INPUT: (Play & Edit mode) Resolution and frame rate of current playback clip
INPUT GAMMA: Displays the current input gamma. Tap to open Input menu to ensure it
matches the output coming from your camera or other input device. RAW inputs will auto-
matically be set to match the camera output. For some cameras further options can be
selected. During playback mode this setting will be determined by the metadata of the
recorded content.
VIDEO OUTPUT: This menu displays the active video resolution and frame rate being
output from the HDMI Out.
