Stereo EFX Inputs
The Stereo EFX Inputs allow stereo signals to be
brought back into the console from an eect unit
without using up a complete channel strip.
Often stereo signals can only be routed to the stereo
mix, however, the ASP8024-HE stereo inputs allow
routing back to the Multi-track in addition to the mix.
5
4
3
2
1

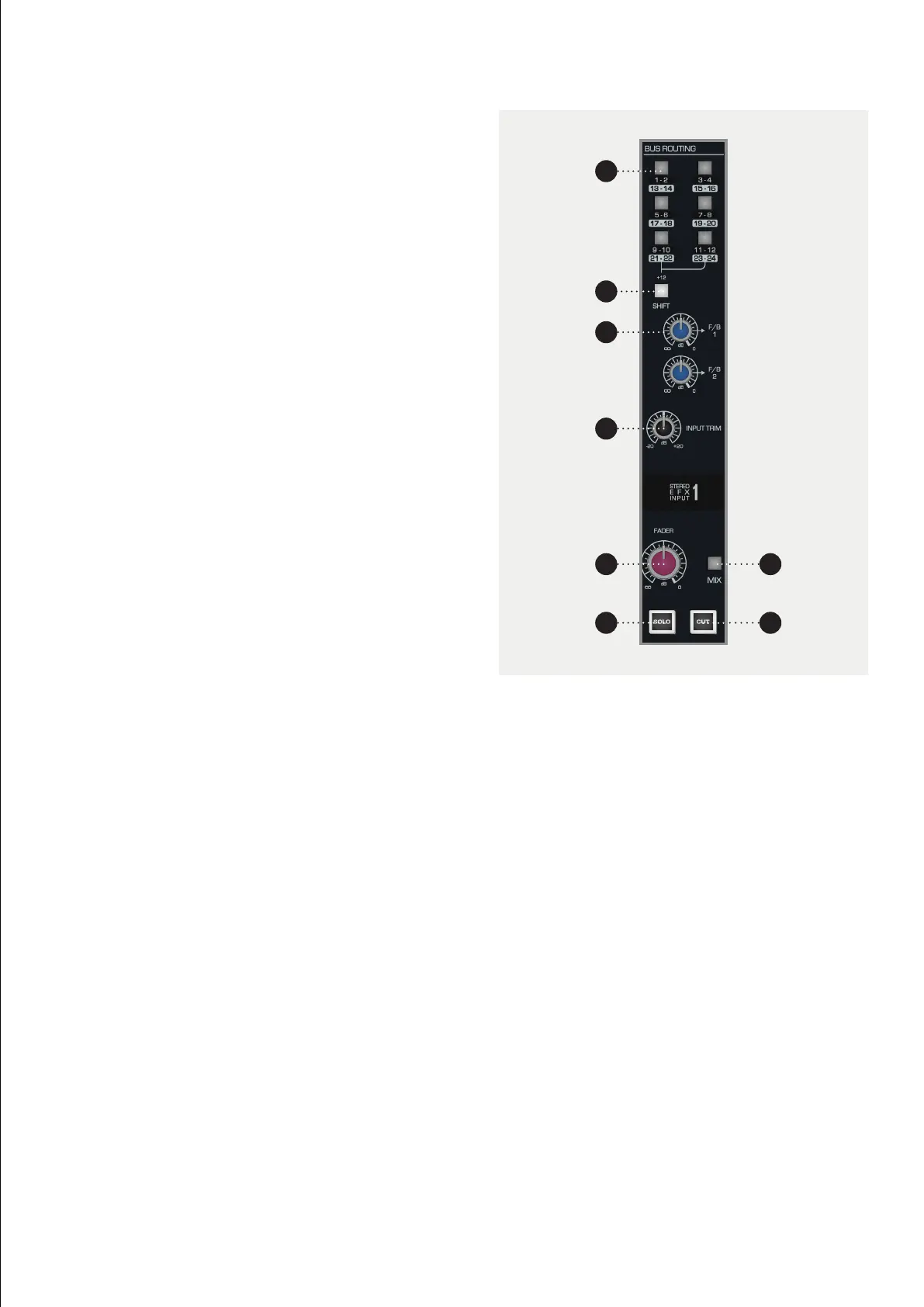

7 8
6
1 BUS ROUTING allows you to send the stereo inputs
to any of the Multi-track Buses. This is done in pairs
as the stereo signal takes up 2 buses.
2 SHIFT switches the functions of the routing switches
from the first 12 Multi-track Buses to the second 12
Multi- track Buses.
3 F/B 1 & 2 controls the signal sends to Foldback
Output 1 and Foldback Output 2.
4 INPUT TRIM reduces or increases the signal level
of the stereo EFX Input from -20dB to +20dB.
5 FADER a fader in disguise as a knob, which controls
the level being sent to the Mix Bus if the Mix Button
is engaged.
6 MIX sends the channel to the Mix Bus. To minimise
the noise floor of the console, this should be
disengaged if the channel is not in use.
7 SOLO mutes every channel except channels that
are soloed.
8 CUT is used to mute the sound output of that
particular Stereo EFX Input.
