This section of the manual explains the functionality
of the optional Patchbay Module and how it relates
to the features explained previously in the manual.

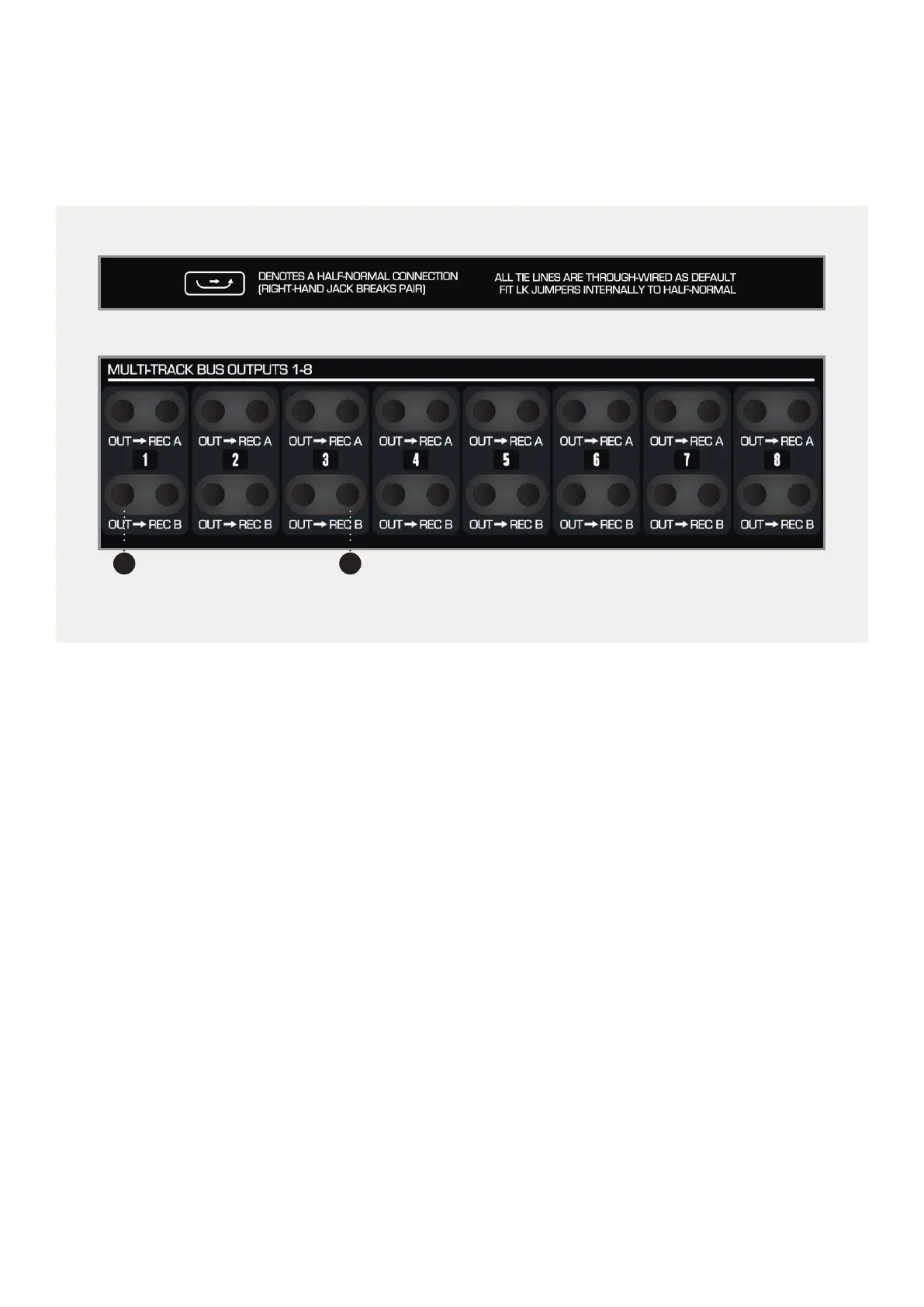

1 OUT. This is the signal from the Multi-track Bus
Outputs. This is available for each Multi-track Bus
from 1 to 24.
2 REC A, B. These are the outputs to the 24 track
recording medium, be that a DAW or a tape machine.
Each Multi-track Bus has a separate A and B output,
which allows you to simultaneously track to two
separate recording mediums.
