INSTALLATION and POWER
page 1 – 13
D-70 / Apr 2000

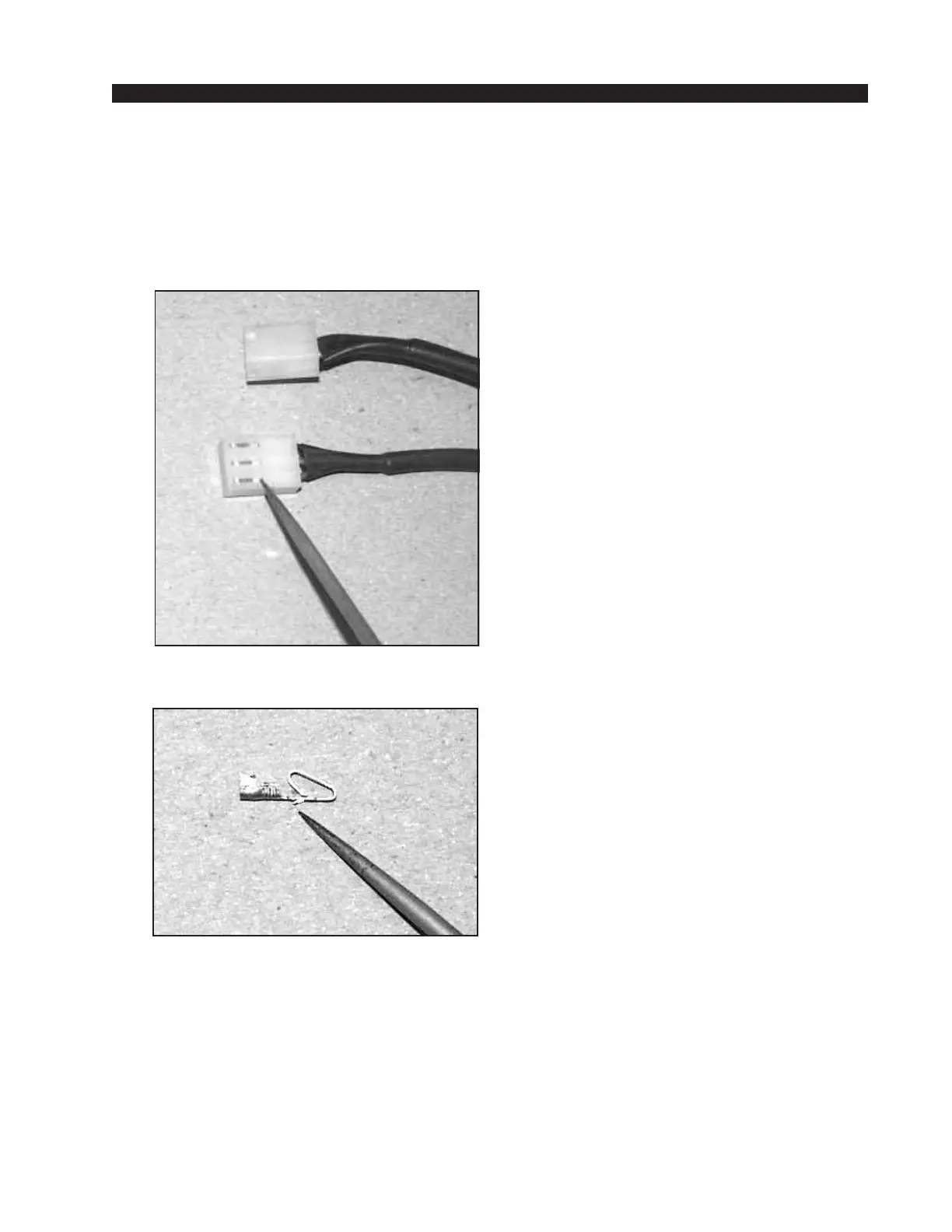

If you should accidentally insert a crimp
terminal pin into the wrong socket, you can easily
correct your mistake without having to sacrifice a
connector. Simple press down the pin’s spring
(see Figure 5 and 6) with a pointed object, and pin
terminal will extract from Nylon Housing.
EXTRACTOR PIN INSTRUCTIONS
(5) Press down pin’s spring
(6) Detail - Pin’s spring
