LINE SELECT MODULE
Hook-Ups

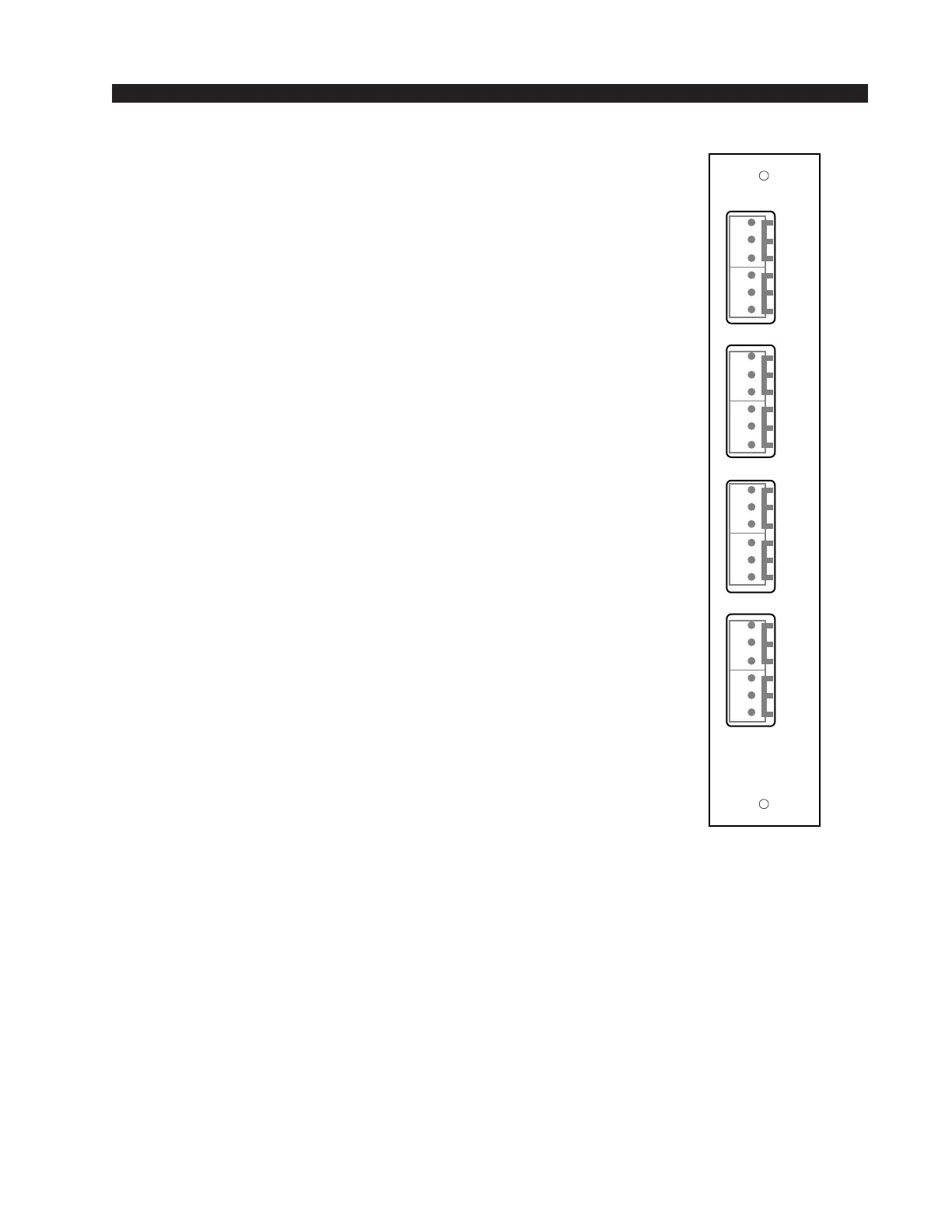

Rear panel LSR-70/A
Audio Inputs 1-4
Pin 6 – Line 1 Lt In LO
Pin 5 – Line 1 Lt In SH
Pin 4 – Line 1 Lt In HI
Pin 3 – Line 1 Rt In LO
Pin 2 – Line 1 Rt In SH
Pin 1 – Line 1 Rt In HI
Pin 6 – Line 2 Lt In LO
Pin 5 – Line 2 Lt In SH
Pin 4 – Line 2 Lt In HI
Pin 3 – Line 2 Rt In LO
Pin 2 – Line 2 Rt In SH
Pin 1 – Line 2 Rt In HI
Pin 6 – Line 3 Lt In LO
Pin 5 – Line 3 Lt In SH
Pin 4 – Line 3 Lt In HI
Pin 3 – Line 3 Rt In LO
Pin 2 – Line 3 Rt In SH
Pin 1 – Line 3 Rt In HI
Pin 6 – Line 4 Lt In LO
Pin 5 – Line 4 Lt In SH
Pin 4 – Line 4 Lt In HI
Pin 3 – Line 4 Rt In LO
Pin 2 – Line 4 Rt In SH
Pin 1 – Line 4 Rt In HI
