page 9 – 4
D-70 / Apr 2000
LINE SELECT MODULE

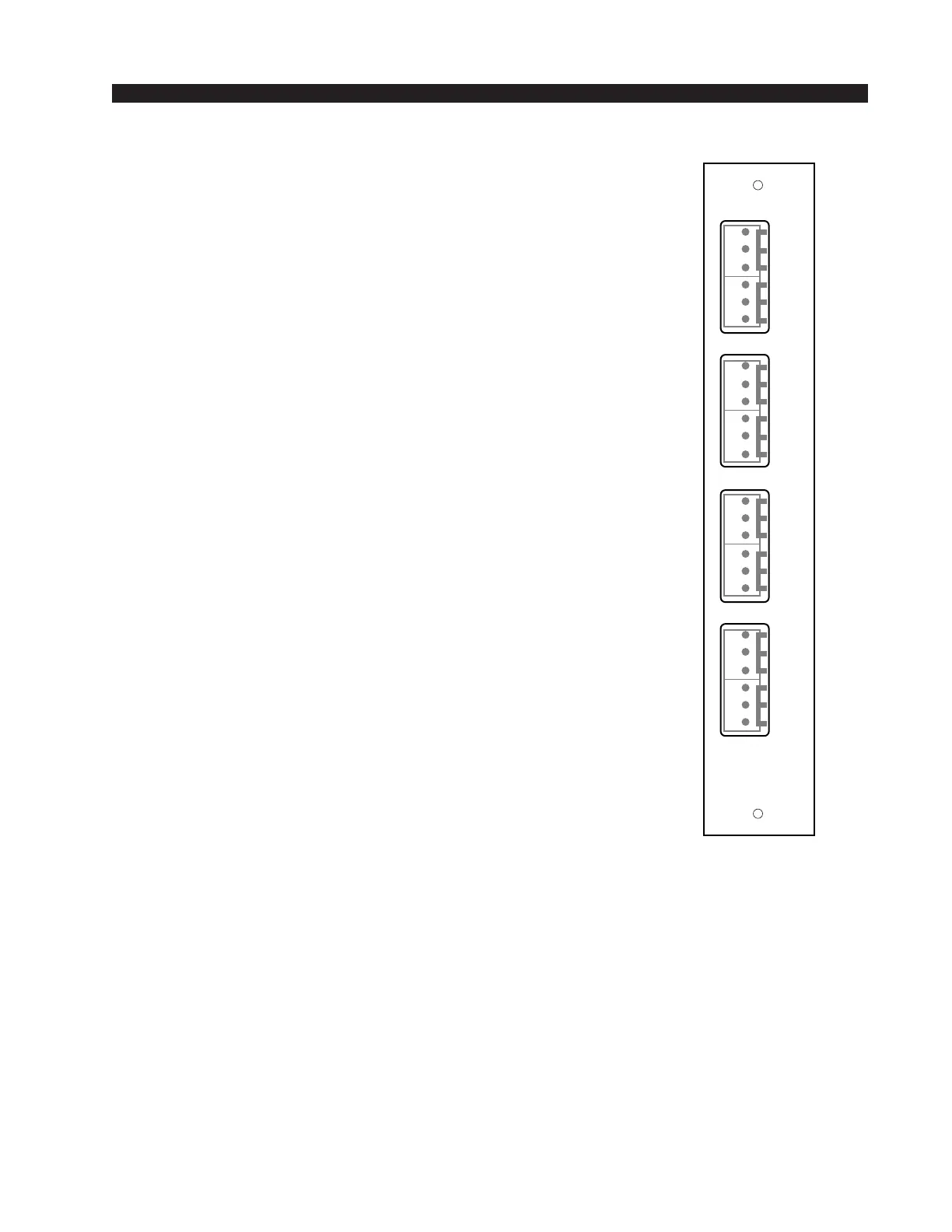

Rear panel LSR-70/B
Audio Inputs 5-7
Pin 6 – Line 5 Lt In LO
Pin 5 – Line 5 Lt In SH
Pin 4 – Line 5 Lt In HI
Pin 3 – Line 5 Rt In LO
Pin 2 – Line 5 Rt In SH
Pin 1 – Line 5 Rt In HI
Pin 6 – Line 6 Lt In LO
Pin 5 – Line 6 Lt In SH
Pin 4 – Line 6 Lt In HI
Pin 3 – Line 6 Rt In LO
Pin 2 – Line 6 Rt In SH
Pin 1 – Line 6 Rt In HI
Pin 6 – Line 7 Lt In LO
Pin 5 – Line 7 Lt In SH
Pin 4 – Line 7 Lt In HI
Pin 3 – Line 7 Rt In LO
Pin 2 – Line 7 Rt In SH
Pin 1 – Line 7 Rt In HI
Audio Outputs
Pin 6 – Line Lt Out LO
Pin 5 – Line Lt Out SH
Pin 4 – Line Lt Out HI
Pin 3 – Line Rt Out LO
Pin 2 – Line Rt Out SH
Pin 1 – Line Rt Out HI
LSR-70/2
Rear Panel
L
S
H
LT
RT
L
S
H
L
S
H
L
S
H
LT
RT
L
S
H
OUT
LT
RT
L
S
H
L
S
H
L
S
H
LT
RT
LINE
SELECT
B
5
6
7
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
