AudioArts Engineering D-70 - OMD-70 Connections - Digital Outputs

page 3 – 5
D-70 / Aug 2000
MASTER OUTPUTS
OMD-70 Connections – Digital Outputs
Handles digital Program, Audition, Auxiliary 1, and Auxiliary 2
outputs (AES format).
Pin 6 – PGM AES Out LO
Pin 5 – PGM AES Out SH
Pin 4 – PGM AES Out HI
Pin 6 – AUD AES Out LO
Pin 5 – AUD AES Out SH
Pin 4 – AUD AES Out HI
Pin 6 – AUX1 AES Out LO
Pin 5 – AUX1 AES Out SH
Pin 4 – AUX1 AES Out HI
Pin 6 – AUX2 AES Out LO
Pin 5 – AUX2 AES Out SH
Pin 4 – AUX2 AES Out HI

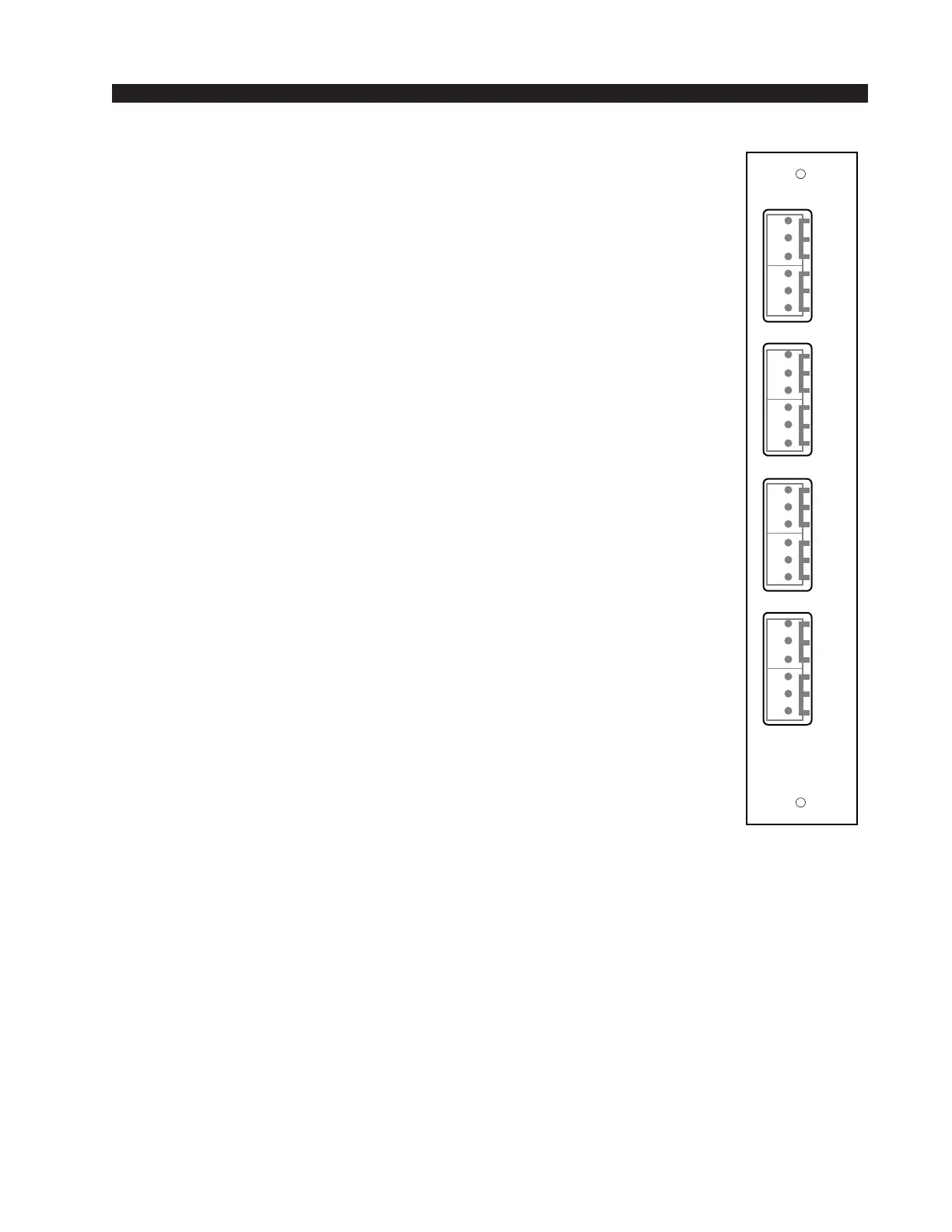

OMD-70
Rear Panel
DIGITAL
OUT
PGM
L
S
H
AUD
L
S
H
L
S
H
L
S
H
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
AUX
1
AUX
2
