LINE SELECT MODULE
Line Select Module-Analog
(LSR-70; optional)
Overview
This optional module electronically selects one of seven stereo line
sources and routes it to one stereo output, allowing you to expand the
source capability of an input channel or monitor module.
All audio input and output signals are made via eight six-conductor
connectors mounted on the module’s rear panels (LSR-70/1 and
LSR-70/2.)
Internal Programming Options
There are no internal programming options on the LSR-70 module.

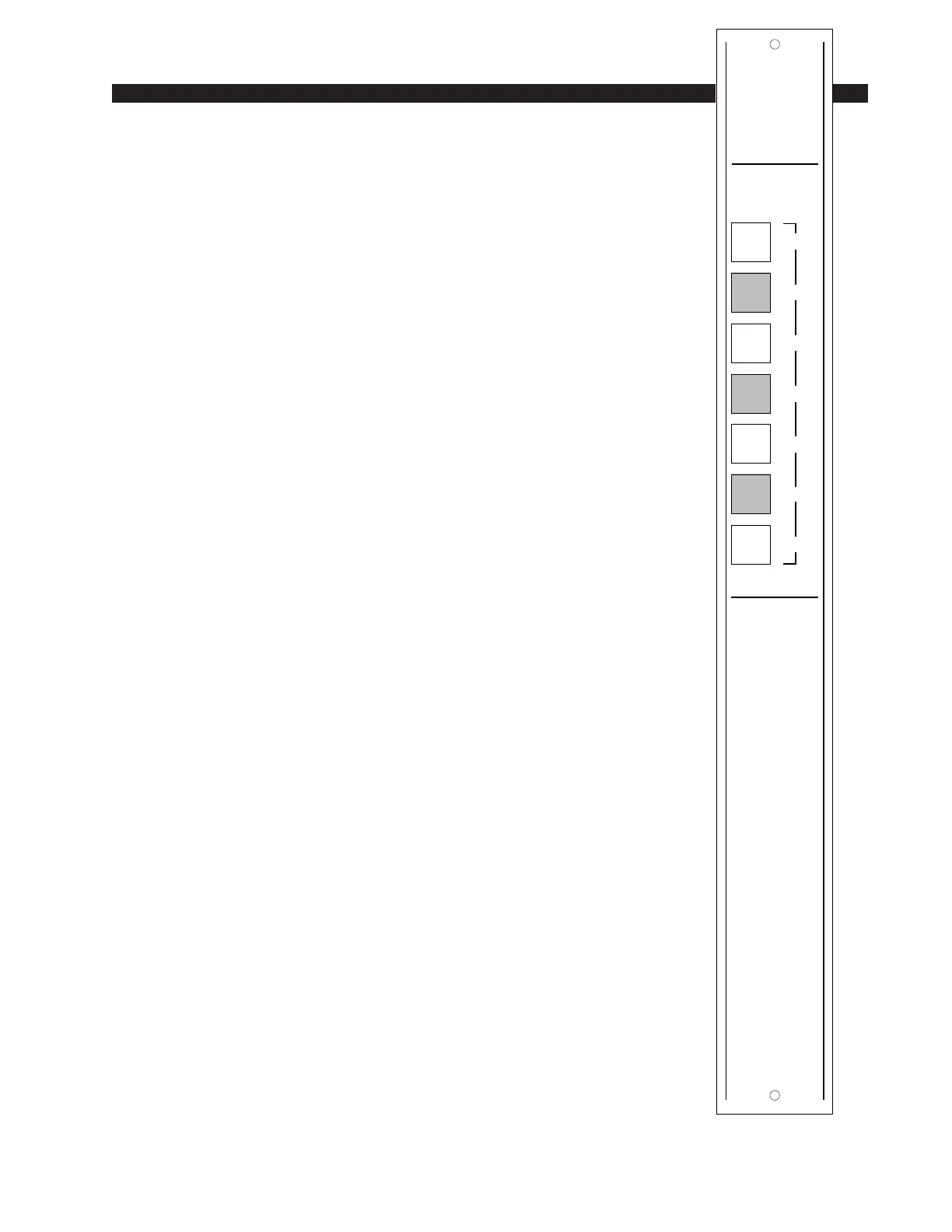

SOURCE
1
2
3
4
5
6
7
