VIRTUAL DIP SWITCH

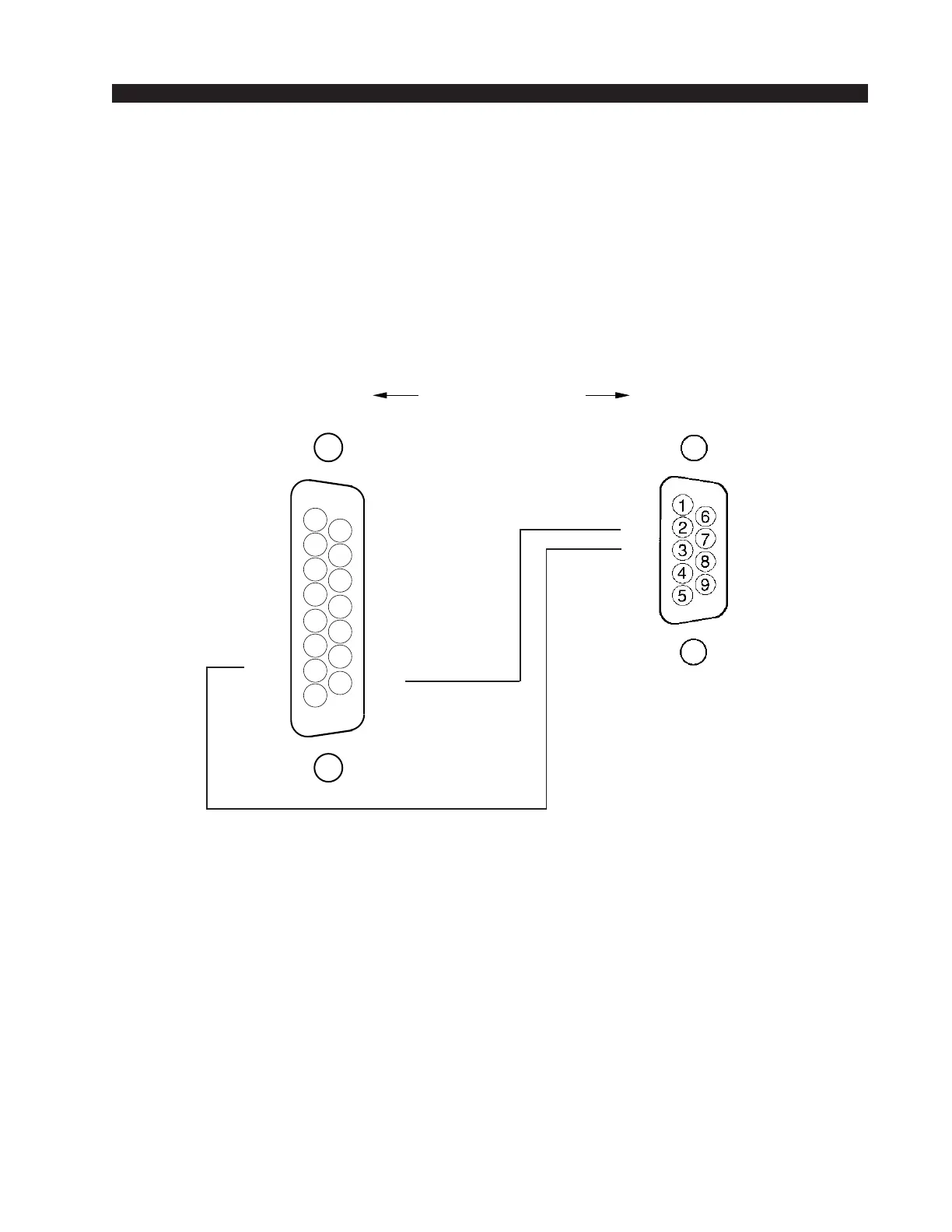

Serial Interface Cable
(for use with Virtual Dipswitch
)
DB Connector Pinouts
6
7
8
14
15
4
5
11
12
13
1
2
3
9
10
N / C
N / C
N / C
N / C
N / C
N / C
RX
GND
N / C
N / C
N / C
N / C
N / C
N / C
TX
OMD
DB-15
(male)
GND
N / C
N / C
N / C
N / C
N / C
TX
RX
N / C
PC RS-232
DB-9
(female)
CABLE CONNECTOR
