Installation and Configuration Manual 5. Connecting Analog Devices to Lync 2010
SBA for Microsoft Lync 101 December 2010
5.1.3 Step 3: Configure Trunk Group Table
This step defines how to enable the Media Gateway’s FXS port PSTN trunk channels. The 'Trunk
Group Table' page allows you to enable the device's channels by assigning them telephone
numbers and other attributes (e.g., Trunk Groups and Profiles).
¾ To configure the Trunk Group table:
1. Open the 'Trunk Group Table' page (Configuration tab > Protocol Configuration menu >
Trunk Group submenu > Trunk Group).

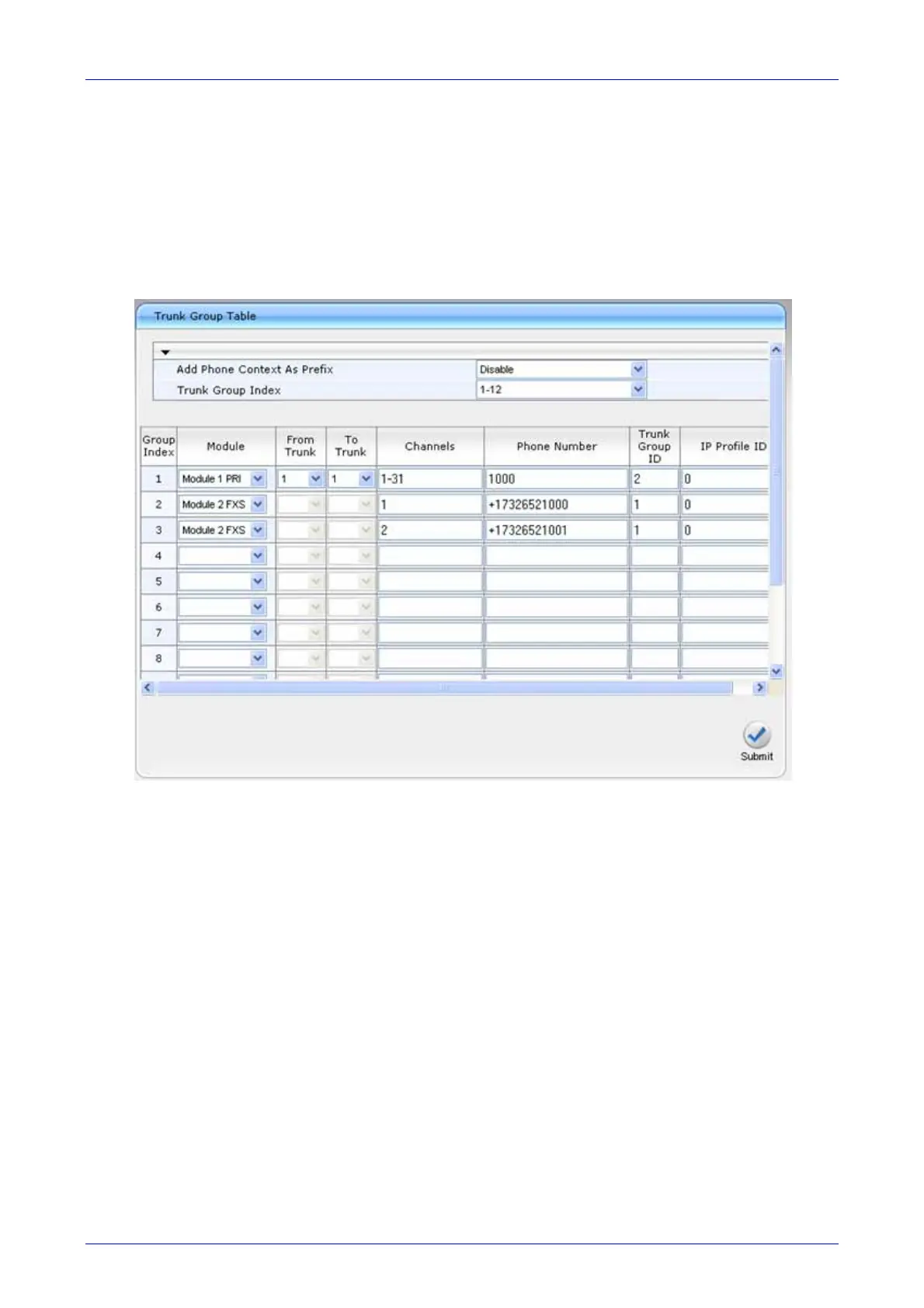

Figure 5-4: Trunk Group Table Page
2. Configure the Trunk Group according to the figure above. To ensure correct routing of IP-to-
Tel calls, assign a different Trunk Group ID for the digital trunk and the FXS module.
