5.1.9 Step 7: Configure IP Group Table
The 'IP Group Table' page allows you to create up to nine logical IP entities called IP Groups.
These IP Groups are used for call routing. This step describes how to configure the IP Group
table for the Mediation Server.
¾ To configure IP Groups:
1. Open the 'IP Group Table' page (Configuration tab > Protocol Configuration menu >
Proxies/IpGroups/Registration submenu > IP Group Table).

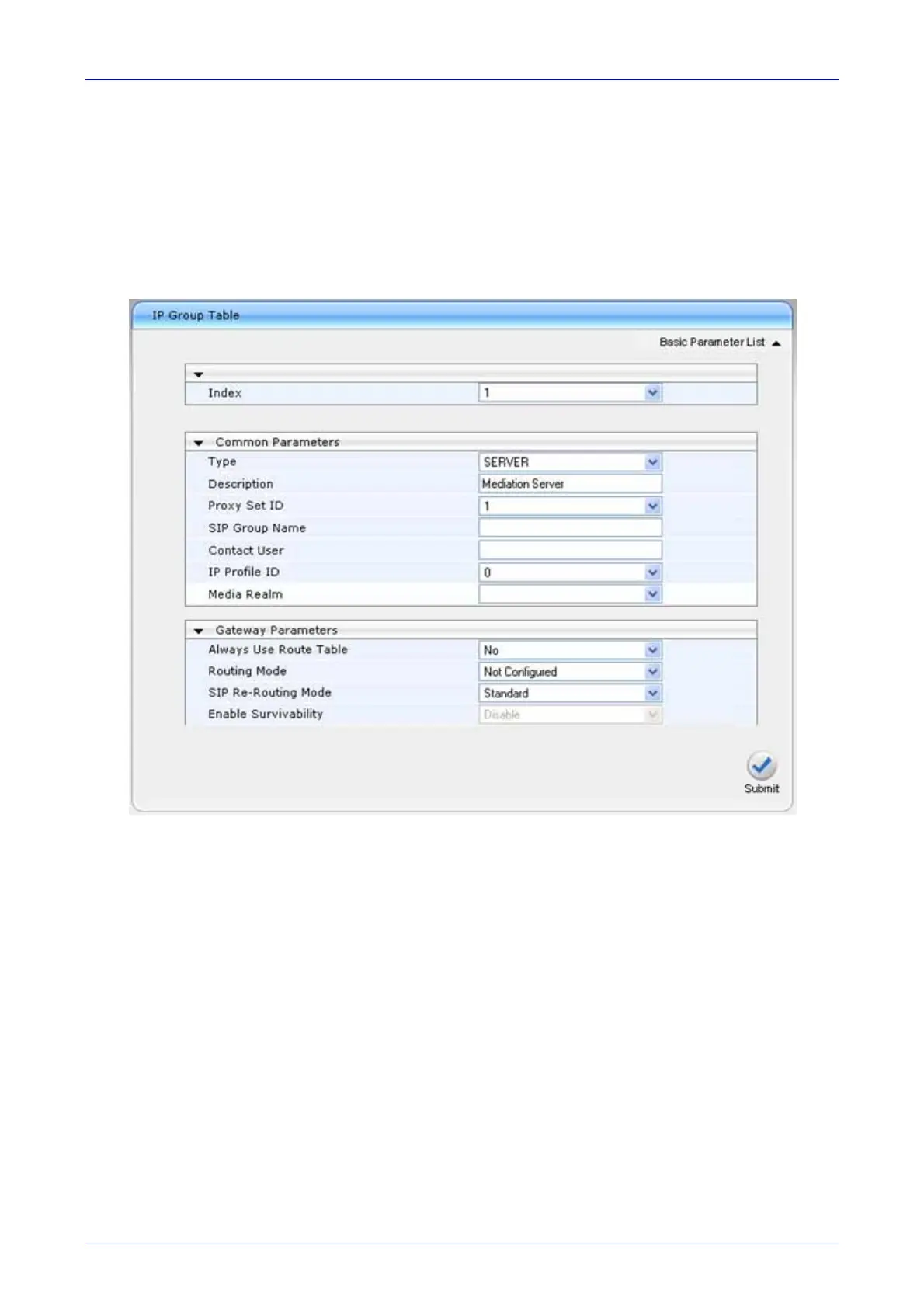

Figure 5-8: IP Group Table Page
2. Define IP Group #1 for Mediation Server as follows:
• Index = “1” - represent the ID for this IP Group.
• Type = “SERVER” - used when the destination address (configured by the Proxy Set in
Step 7, Section 5.1.10) of
the IP Group is known.
• Description = "Mediation Sever" - arbitrary name.
• Proxy Set ID = “1” - represents the IP address (configured in Step 7, Section 5.1.10) for
comm
unicating with this IP Group.

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
