Survivable Branch Appliance
AudioCodes Enhanced Media Gateway 76 Document #: LTRT-18206
4.6.2 Configuring the Trunk Group setting Table
The 'Trunk Group Settings' page is used to select the method for which IP-to-Tel calls are
assigned to channels within each Trunk Group.
¾ To configure the Trunk Group settings:
1. Open the 'Trunk Group Settings' page (Configuration tab > Protocol Configuration menu
> Trunk Group submenu > Trunk Group Settings).

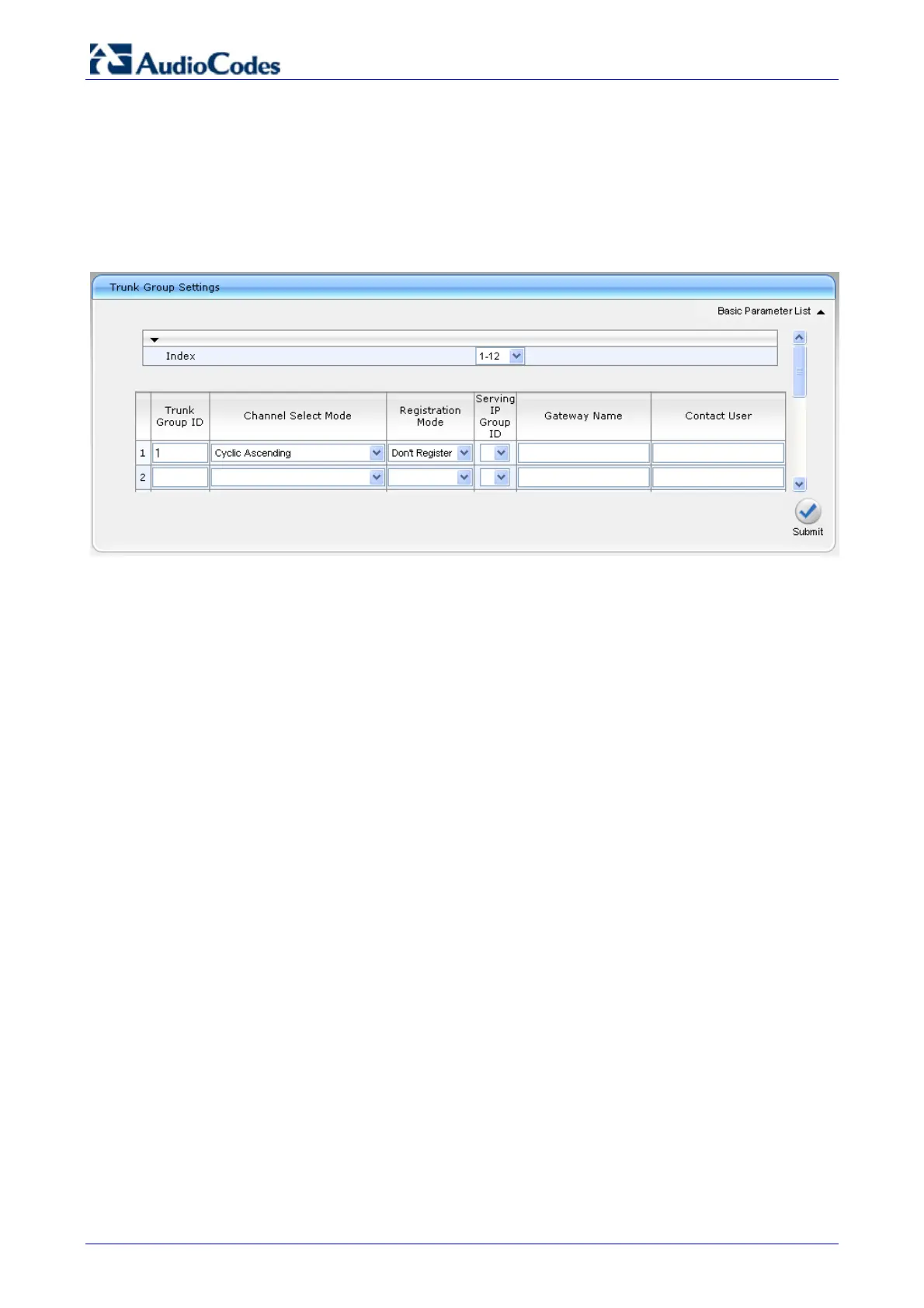

Figure 4-21: Trunk Group Settings Page
2. In the ‘Trunk Group ID’ column, enter the Trunk Group ID that you want to configure.
3. From the ‘Channel Select Mode’ drop-down list, select the method for which IP-to-Tel calls
are assigned to channels pertaining to the Trunk Group (i.e. Cyclic Ascending).
4. From the ‘Registration Mode’ drop-down list, select ‘Don’t Register’.
