Installation and Configuration Manual 4. Configuring the Enhanced Media Gateway
SBA for Microsoft Lync 89 December 2010
4. From the ‘Forking Handling Mode’ drop-down list, select ‘Sequential handling’. The Media
Gateway opens a voice stream toward the first 18x SIP response that includes an SDP and
disregards any 18x response with an SDP received thereafter.
5. Click Submit to save your changes.
6. Open the 'Admin" page, by appending the case-sensitive suffix ‘AdminPage’ to the Media
Gateway's IP address in your Web browser's URL field (e.g., http://10.15.4.15/AdminPage).

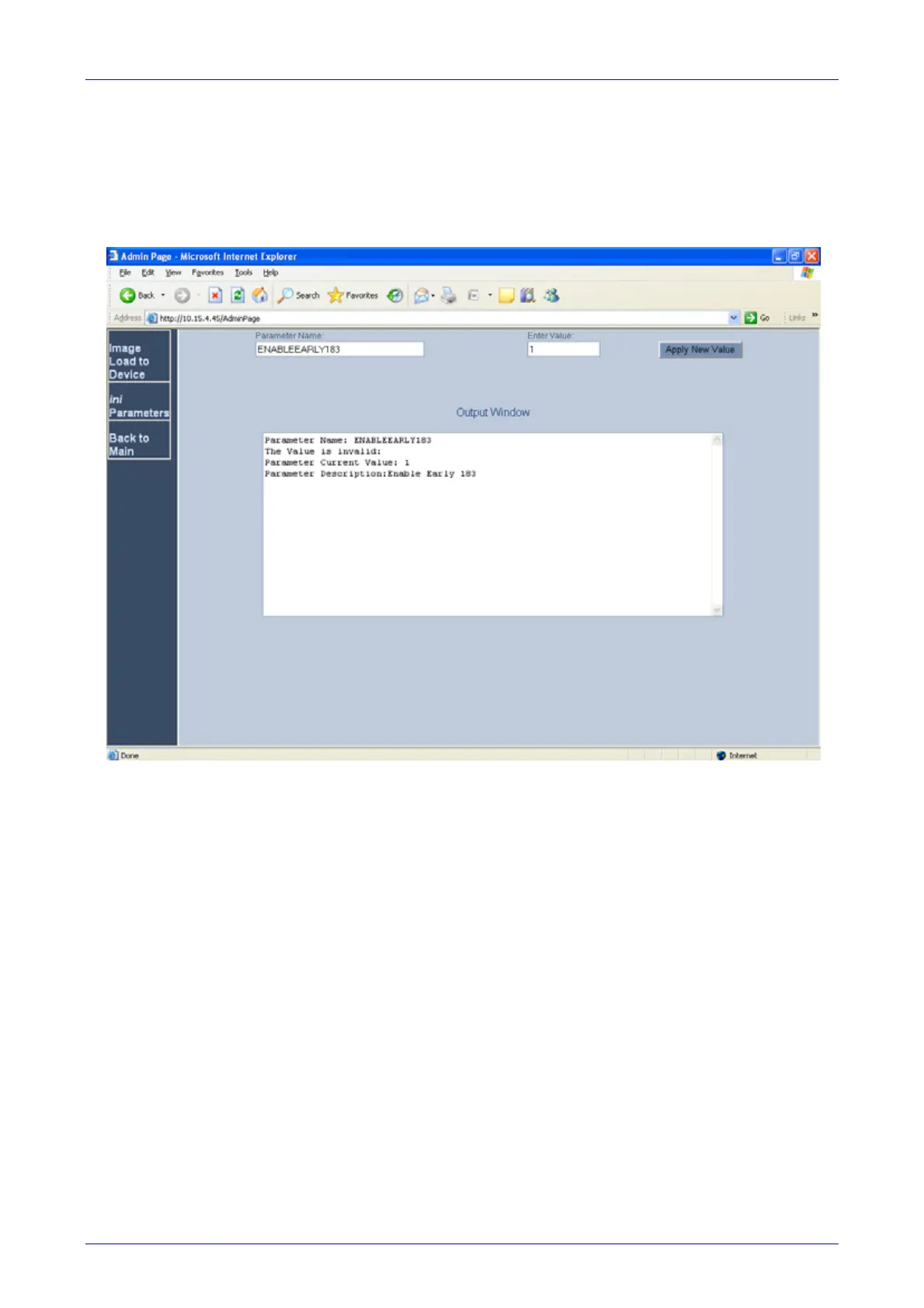

Figure 4-33: Admin
Page Settings
7. In the Admin Page, on the left pane, click ini Parameters.
8. In the 'Parameter Name' field, enter the parameter "ENABLEEARLY183”.
9. In the 'Enter Value' field, enter “1”.
10. Click Apply New Value.
11. Save the changes to flash memory, by clicking the Burn button on the toolbar.

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
