Installation and Configuration Manual 5. Connecting Analog Devices to Lync 2010
SBA for Microsoft Lync 111 December 2010
5.2.2 Step 2: Configure Tel to IP Routing Table
This step describes how to configure the Tel-to-IP routing rules to ensure that the MP-11x sends
all calls to AudioCodes central Media Gateway.
¾ To configure the Tel to IP Routing table:
Open the 'Tel to IP Routing' page (Configuration tab > Protocol Configuration menu>
Routing Tables submenu > Tel to IP Routing).

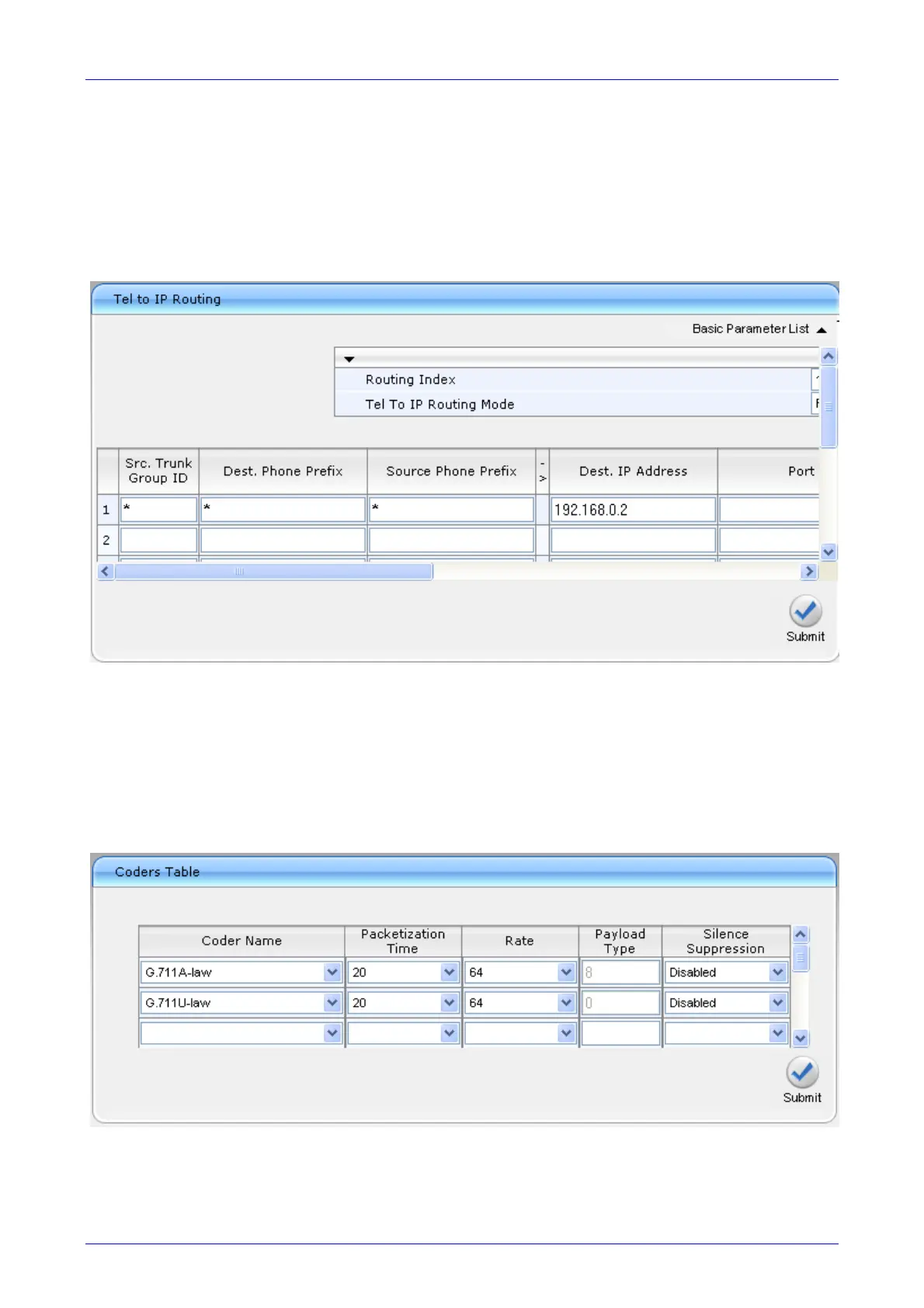

Figure 5-14: Tel to IP Routing Page
5.2.3 Step 3: Configure Coders Table
This step describes how to configure the coders for MP-11x.
¾ To configure MP-11x coders:
Open the 'Coders' page (Configuration tab > Protocol Configuration menu > Coders And
Profile Definition submenu > Coders).
Figure 5-15: Coders Table Page
