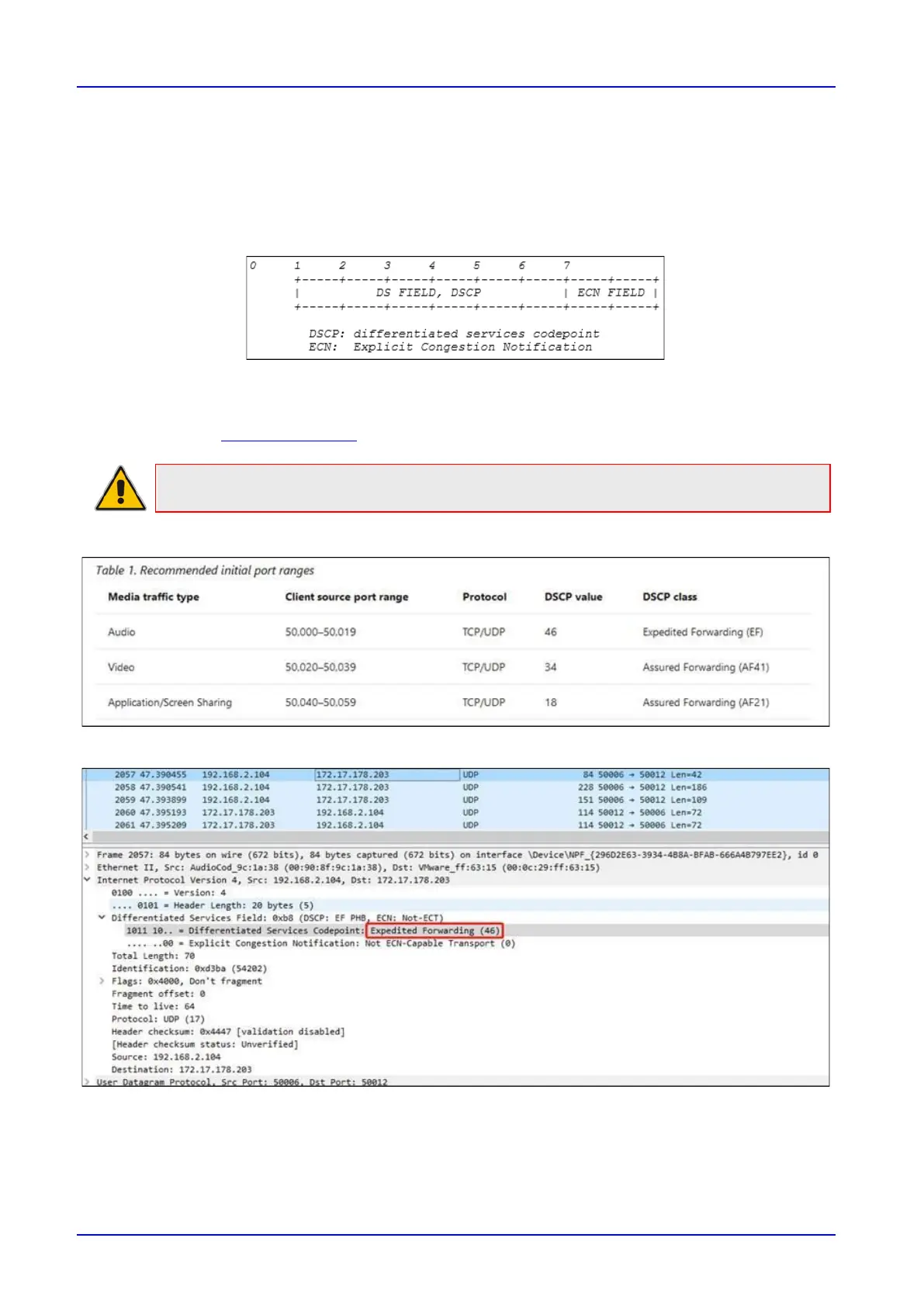

4.1.10 Configuring DSCP for QoS
RXV81 Teams application supports DS (Differentiated Services) containing a differentiated Services
Code Point (DSCP) value and an ECN (Explicit Congestion Notification) value, for monitoring Quality
of Service (QoS).
DSCP is part of the IP header that defines the type of routing service to tag outgoing voice packets
originated from the device. It informs routers that this packet must receive a specific QoS. Values
can be set in decimal (e.g., 184) or hexadecimal (e.g., 0xb8). The default value is 0xb8 (184).
The DSCP value for audio is 0x46.
The DSCP value for video is 0x34 (screen sharing is not supported).
See also Microsoft's website for more information.
The figure below shows the recommended port ranges.
The figure below shows the recommended DSCP setting for Audio.
