3. BIT ONE AND DRC INSTALLATION

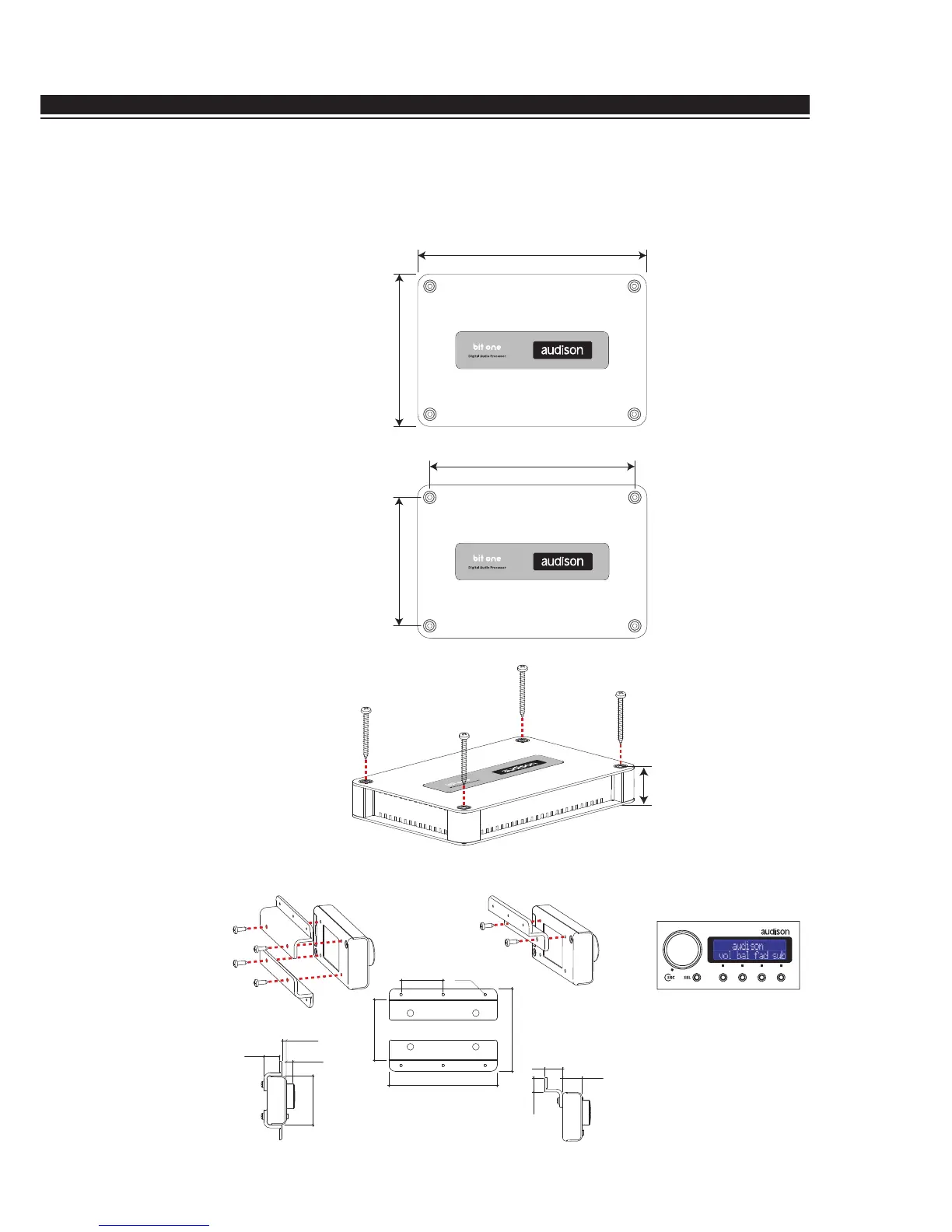

External dimensions
How to install the DRC
Mounting dimensions
(provided)
BIT ONE:
DRC:
WARNING: do not use
aggressive cleaning
agents or abrasive
cloth to clean the
display. Simply use a
soft cotton cloth lightly
damped with water.
225 mm / 8,85”
150 mm / 5,90”
201 mm / 7,91”
126 mm / 4,96”
4.2 x 38 mm
32.3 mm
1,27”
68 mm / 2.68”
90 mm / 3.54”
35 mm / 1.38” Ø 2 mm / 1/8”
50 mm / 2”
16 mm / 0.63”
17 mm / 0.67”
12.5 mm / 0.49”
43.5 mm / 1.71”
13.5 mm / 0.53”
3.5 mm / 0.14”
6 mm / 0.23”
