ADVANCED MANUAL / Bit One /
5
1. PRE IN low-level MASTER inputs (see section 5.4.1-2)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6
Connect here the RCA cables coming from the main analog signal source.
If these inputs are used, the MASTER SPEAKER IN inputs can not be used.
2. AUX1 – AUX2 auxiliary low-level STEREO inputs
(see section 5.4.3-4)
Connect here the RCA cables coming from additional analog signal sources.
3. DIGITAL IN S/PDIF digital inputs
(see section 5.4.5-6)
The applicable signal must be a 48 kHz/24bit max. STEREO signal.
COAXIAL. Connect a 75 ohm shielded cable.
OPTICAL. Connect an optical fibre cable with TOSLINK connector.
4. SPEAKERS IN hi-level MASTER input
(see section 5.5.1-2)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - Ch7 - Ch8
Connect here the specific cables coming from the power output of the main signal source.
If these inputs are used, the MASTER PRE IN inputs can not be used.
Ch1 features AUTO TURN ON (ART), providing the ability to automatically turn on/off the Bit One through the
connection with the source speaker outputs. In the Bit One.1 version (check label on the bottom of the product)
this feature can be disabled
(see section 5.5.1).
5. PHONE input for phone hands-free kits (see section 5.5.3)
SIGNAL. Connect the audio output cables coming from the hands-free kit system in use.
MUTE. Connect the hands-free kit remote control (MUTE/PHONE MUTE).

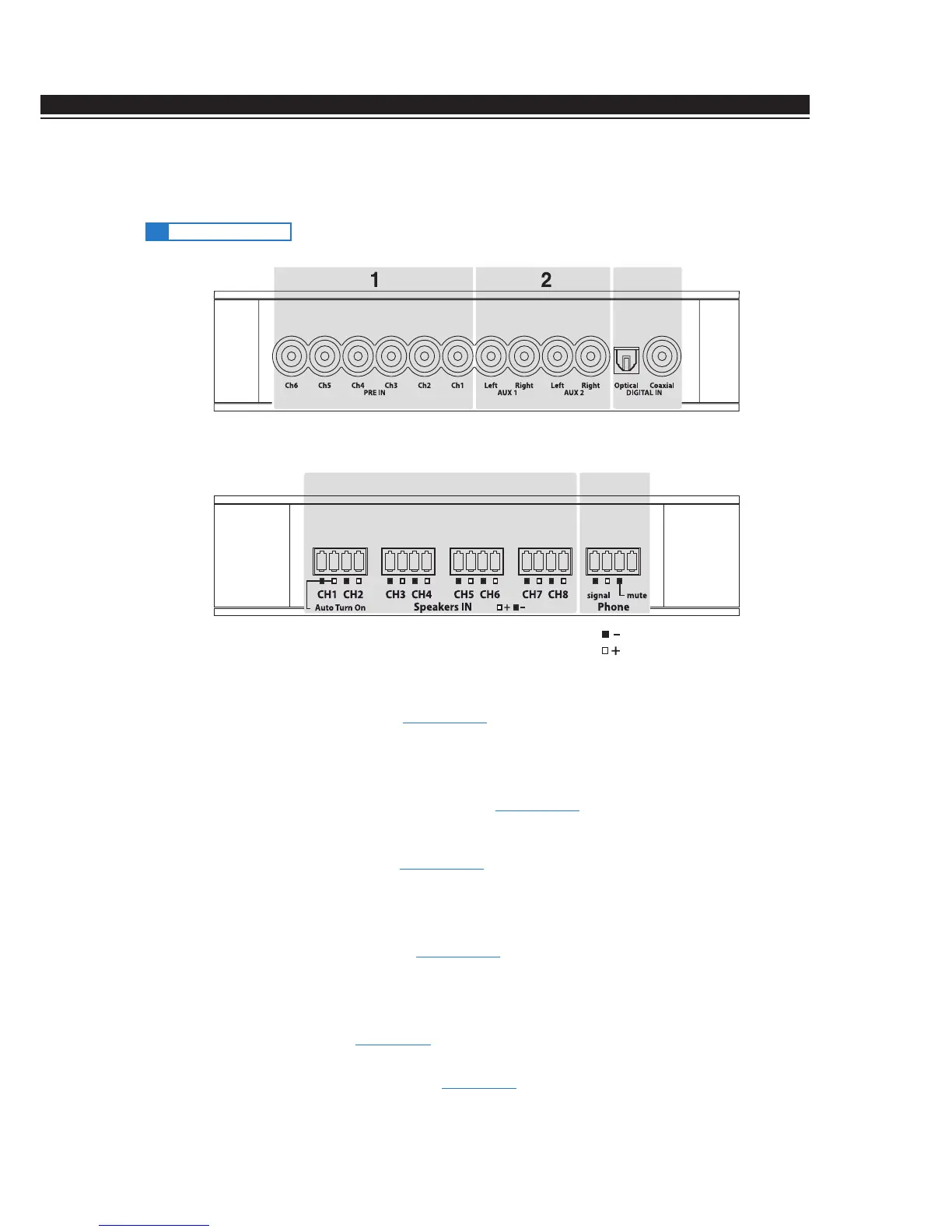

4. CONNECTION PANELS - DESCRIPTION
negative pole (ground)
positive pole
Remark: Ch1 Auto Turn ON can be
excluded in the Bit One.1 version.
4.1 INPUT SIGNALS
