ADVANCED MANUAL / Bit One /
8
3. AUX 1 - Left/Right - analog STEREO signal
5. DIGITAL IN OPTICAL
Digital S/PDIF STEREO signal
6. DIGITAL IN COAXIAL
Digital S/PDIF STEREO signal
2. PRE IN - Ch1/Ch 6 - analog Audio Car Theatre
4. AUX 2- Left/Right – analog STEREO signal
1. PRE IN - Ch1/Ch6 analog STEREO signal
(select 2 signals from Ch1 and Ch6)
DIGITAL IN - WARNING: the digital inputs accepts
up to 48 kHz / 24 bit stereo PCM signals. So
DOLBY DIGITAL (AC3) multi-channel signals
coming from audio/video sources (such as
the audio of a film in DVD) or DTS can not be
reproduced. The output of these devices will
therefore be set in STEREO mode for the signal
to be reproduced. If digital signals at frequency
higher than 48 kHz (96 - 192 kHz) are supplied,
the Bit One locks up. In that case, turn the Bit
One off, supply the adequate signal and turn it
on again.

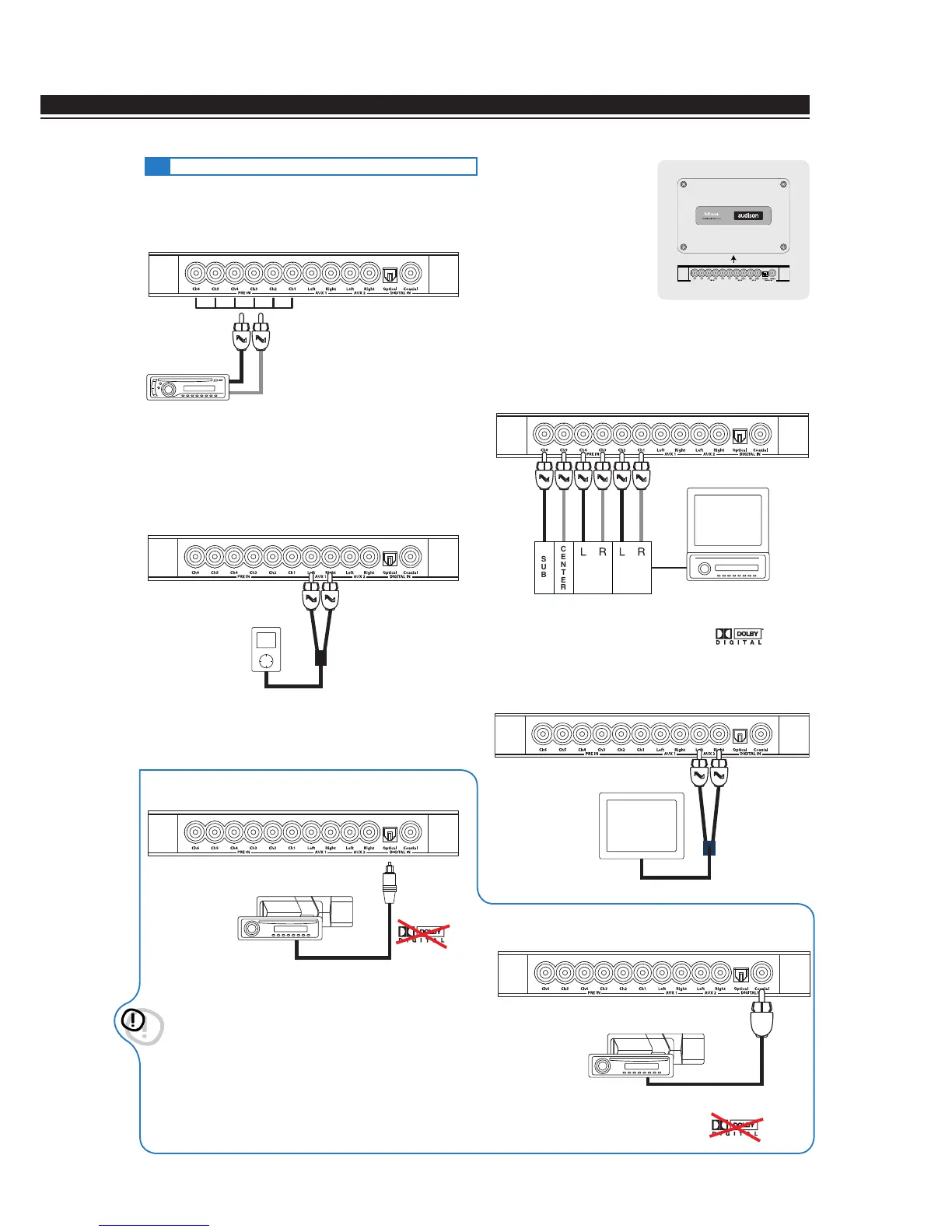

5.4 LOW-LEVEL AND DIGITAL INPUT SIGNALS
Pre Out
Source (MAX 6 PRE OUT)
LR
Multi Channel Source
Analog Preamplified Signal
SUB
CENTER
REAR FRONT
Auxiliary Stereo
Preamplifier Source
Auxiliary Stereo
Preamplifier
Source
Signal: STEREO Max 48 kHz / 24 bit
Stereo Source
Digital Signal
75 ohm coax cable
Signal: STEREO Max 48 kHz / 24 bit
BIT ONE
Bottom Side
TOSLINK
connector
Optical fiber
5

Audison bit one Specifications

General

Number of Channels	8
Output Channels	8
Crossover	Yes
Time Alignment	Yes
THD	0.005 %
Type	Digital Signal Processor
DSP Resolution	32-bit
Crossover Slope	6/12/18/24 dB/octave
