10. Opening the switch
compartment
To be able to make the following settings (clause 11. to 17.) the switch
compartment must be opened and, if installed, the indicator disc must be
removed.
These settings are only valid for “clockwise closing”, i.e. driven shaft turns
clockwise to close the valve.
Work on the electrical system or equipment must only be
carried out by a skilled electrician himself or by specially
instructed personnel under the control and supervision of
such an electrician and in accordance with the applicable
electrical engineering rules.
10.1 Removal of the switch compartment cover
.
Remove 4 bolts and take off the cover at the switch compartment
(figure H) .
10.2 Pulling off the indicator disc (option)
.
If installed, pull off indicator disc (figure J). Open end spanner
(approx. 14 mm) may be used as lever.
13
Multi-turn actuators SA 07.1 – SA 16.1
Operation instructions with actuator controls AMB 01.1/AMB 02.1

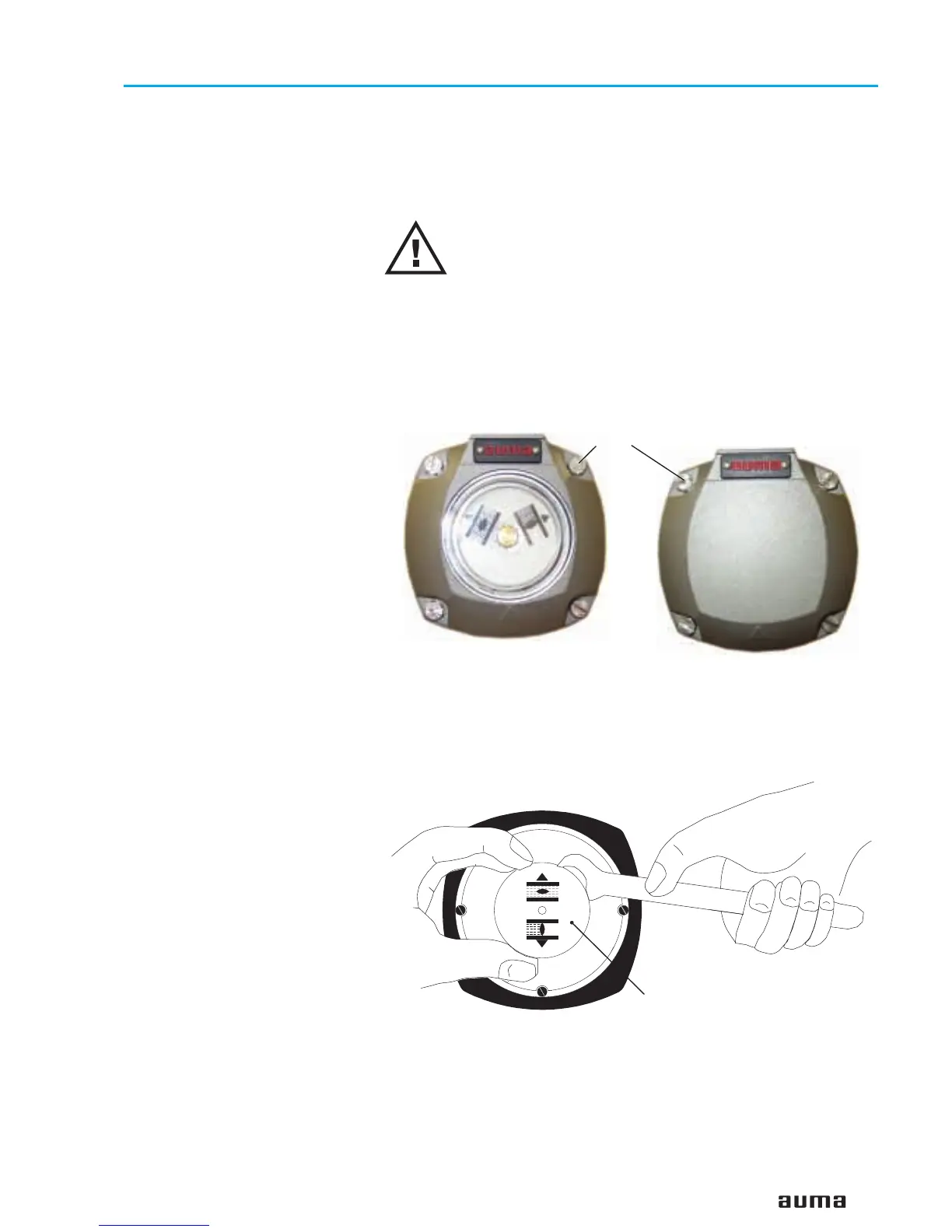

Figure H-2: Cover without indicator
glass
DSR
WDR
Figure J: Pulling off the indicator disc
Indicator disc
Figure H-1: Cover with indicator glass
Bolts
