AUMA SAEx Series User Manual

6. Fasten screws crosswise to a torque according to table.
Table 11:
Tightening torques for screws
Tightening torque [Nm]Threads
Strength class A2-80/A4–80
10M6
24M8
48M10
82M12
200M16
392M20
4.5. Accessories for assembly
4.5.1. Stem protection tube for rising valve stem

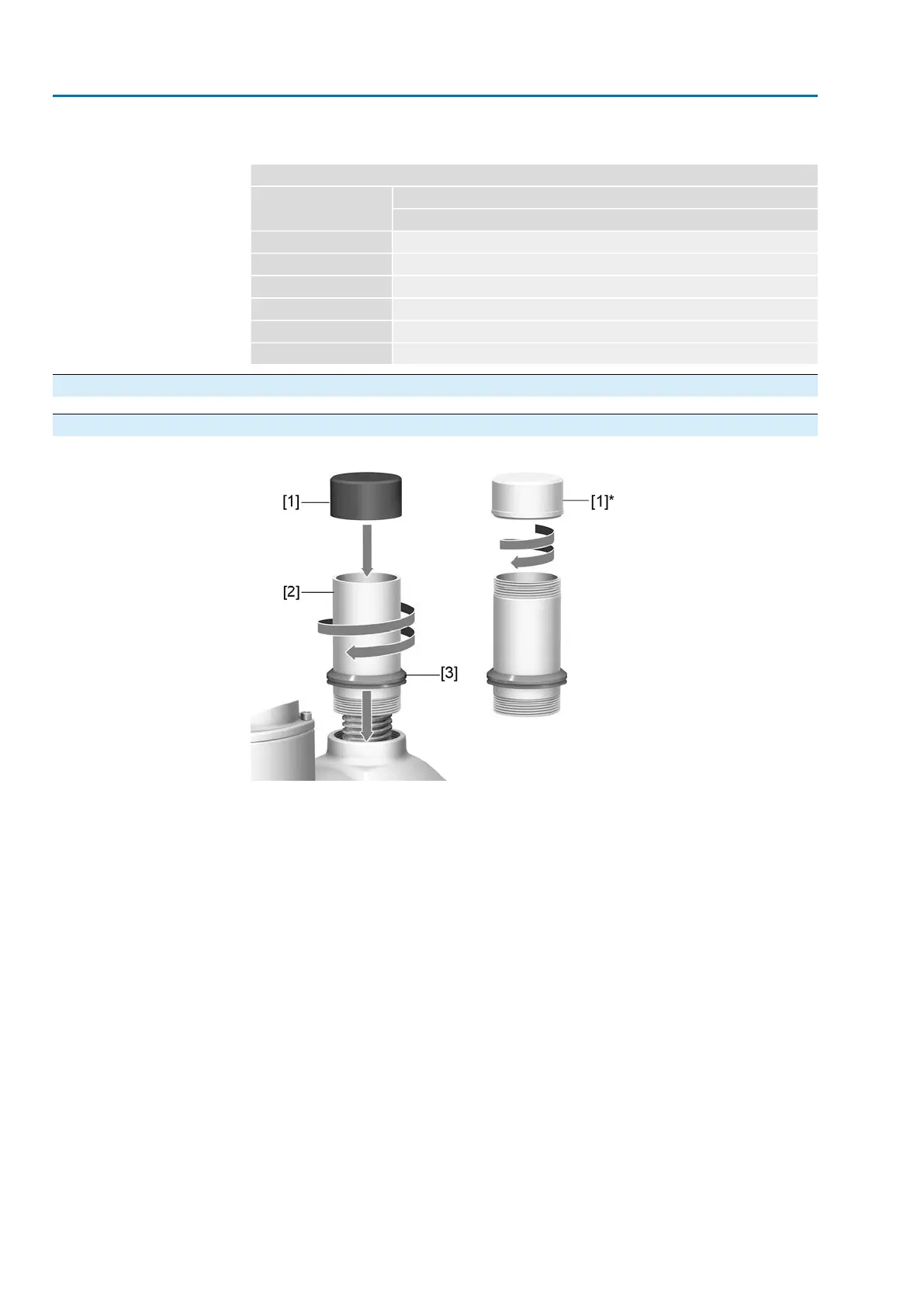

Figure 15: Assembly of the stem protection tube
[1] Protective cap for stem protection tube (fitted)
[1]* Option: Protective cap made of steel (screwed)
[2] Stem protection tube
[3] V-seal
Procedure
1. Seal all threads with hemp, Teflon tape, or thread sealing material.
22
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Assembly ACExC 01.2 Non-Intrusive Profinet

AUMA SAEx Series Specifications

General

Explosion protection	ATEX, IECEx
Ingress protection	IP66 / IP68
Communication interfaces	Modbus, Foundation Fieldbus
Display	LCD
Control Signal	4-20 mA
Type of controller	Electric actuator controller
