AUMA SAEx Series User Manual

2.

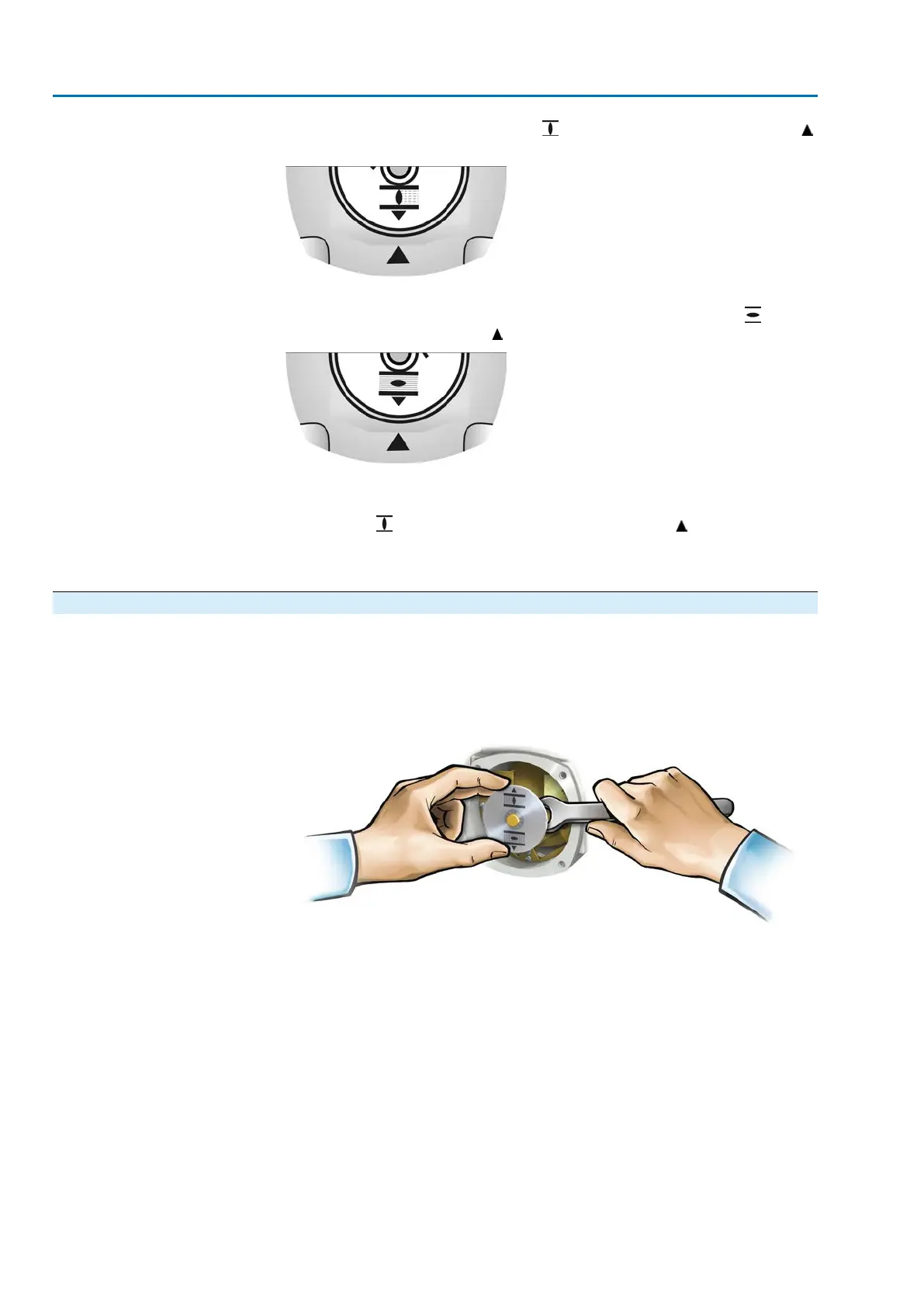

Turn lower indicator disc until symbol (CLOSED) is in alignment with the
mark on the cover.
3. Move actuator to end position OPEN.
4.
Hold lower indicator disc in position and turn upper disc with symbol (OPEN)
until it is in alignment with the mark on the cover.
5. Move valve to end position CLOSED again.
6. Check settings:
If the symbol (CLOSED) is no longer in alignment with mark on the cover:
6.1 Repeat setting procedure.
6.2 Test/set gear stage of the reduction gearing.
10.3.2. Gear stage of the reduction gearing: test/set
This test/setting is only required if the turns/stroke of the actuator were changed at
a later date.The control unit may possibly have to be exchanged:
Information The adjustable stroke range is indicated on the order data sheet (e.g. “1 – 500
turns/stroke”).
1. Pull off indicator disc using a spanner as lever if required.
70
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Commissioning (settings/options in the actuator) ACExC 01.2 Non-Intrusive Profinet

AUMA SAEx Series Specifications

General

Explosion protection	ATEX, IECEx
Ingress protection	IP66 / IP68
Communication interfaces	Modbus, Foundation Fieldbus
Display	LCD
Control Signal	4-20 mA
Type of controller	Electric actuator controller
