10. Commissioning (settings/options in the actuator)
For actuators without mechanical position indicator (cover without indicator glass),
no settings are required within the actuator when commissioning.

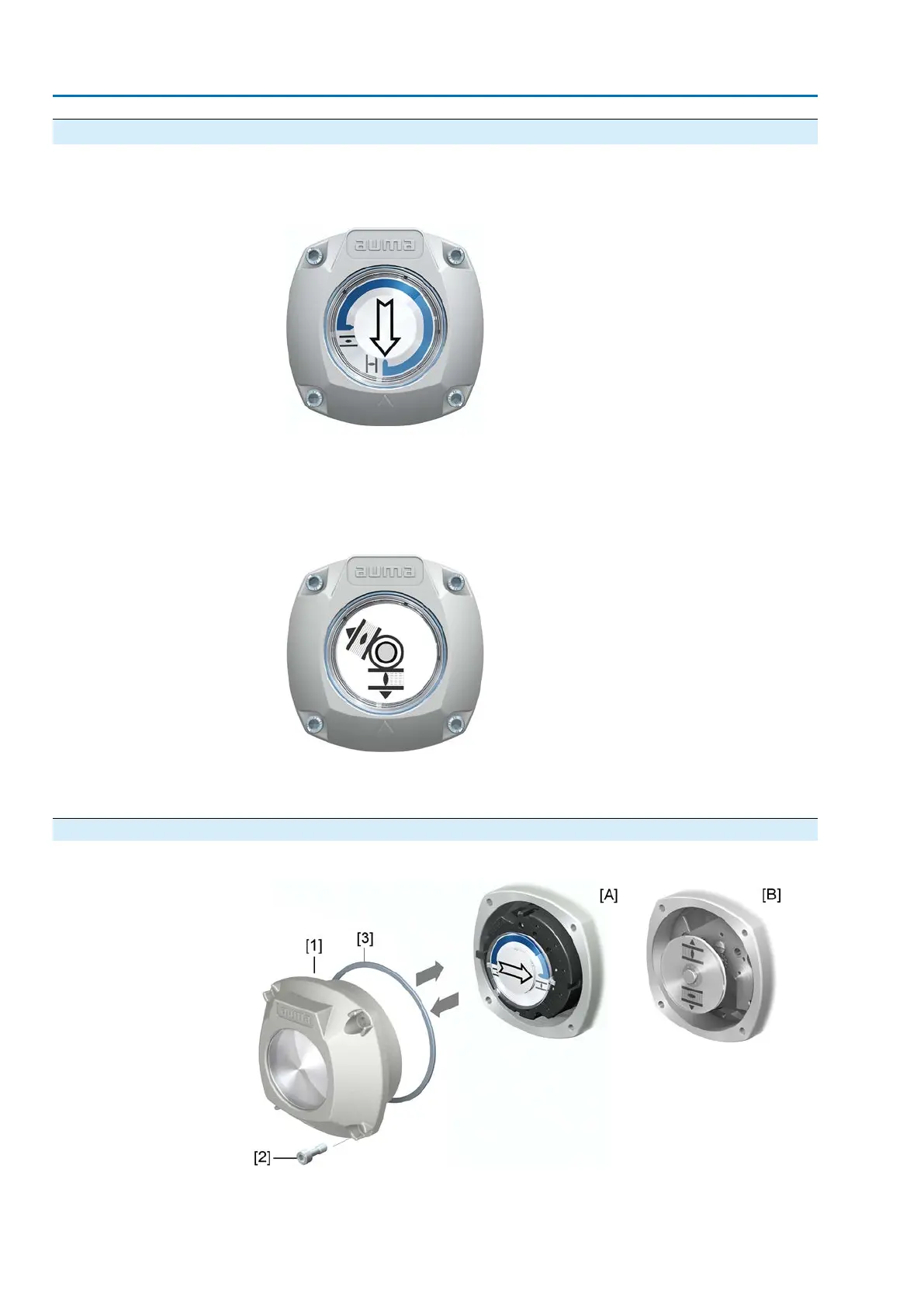

Figure 66: Mechanical position indicator (self-adjusting)
When equipped with the self-adjusting mechanical position indication, the position
indication automatically adjusts upon the initial operation (e.g. from CLOSED to
OPEN).This self-adjustment is generally performed when setting the limit switches
(approaching the end positions). Manual setting and consequently opening the switch
compartment is not necessary when commissioning.
Figure 67: Mechanical position indication via indicator mark (not self-adjusting)
In case the mechanical position indicator integrated within the actuator is NOT
self-adjusting [B], the switch compartment must be opened for mechanical position
indication adjustment when commissioning.
10.1. Switch compartment: open/close
Figure 68: Open/close switch compartment
[A] Mechanical position indication (self-adjusting)
[B] Mechanical position indication via indicator mark
66
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Commissioning (settings/options in the actuator) ACExC 01.2 Non-Intrusive Profinet
