AUMA SAEx Series User Manual

In case of a fault: Hazardous voltage while protective earth conductor is NOT
connected!
Risk of electric shock.
→
Connect all protective earth conductors.
→
Connect PE connection to external protective earth conductor of connecting
cables.
→
Start running the device only after having connected the protective earth con-
ductor.
8.
Firmly tighten protective earth to PE connection (M6 ).

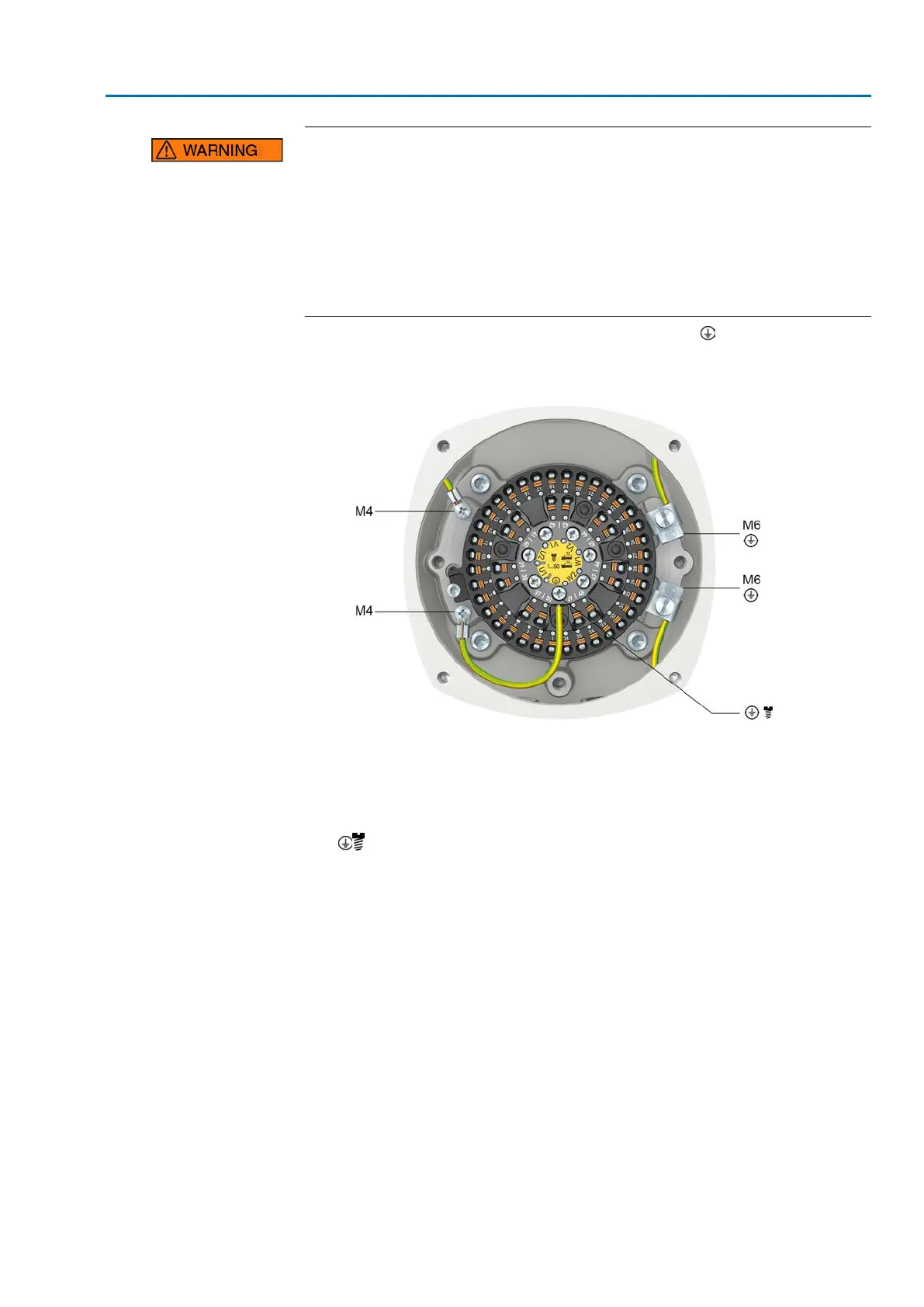

Figure 24: Protective earth connections within connection frame
M6 Customer protective earth connection for M6 ring lug or with U-bracket
for up to two wires.
M4 Internal protective earth connections via M4 ring lug (to cover and terminal
carrier) connected in the factory
Protective earth connection to terminal carrier (power terminals); connec-
ted in the factory.
9. Assemble mounting frame [2] with screws [1] within connection frame.
33
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
ACExC 01.2 Non-Intrusive Profinet Electrical connection

AUMA SAEx Series Specifications

General

Explosion protection	ATEX, IECEx
Ingress protection	IP66 / IP68
Communication interfaces	Modbus, Foundation Fieldbus
Display	LCD
Control Signal	4-20 mA
Type of controller	Electric actuator controller
