AUMA SG 05.1 - Page 41

5.
Press .
➥

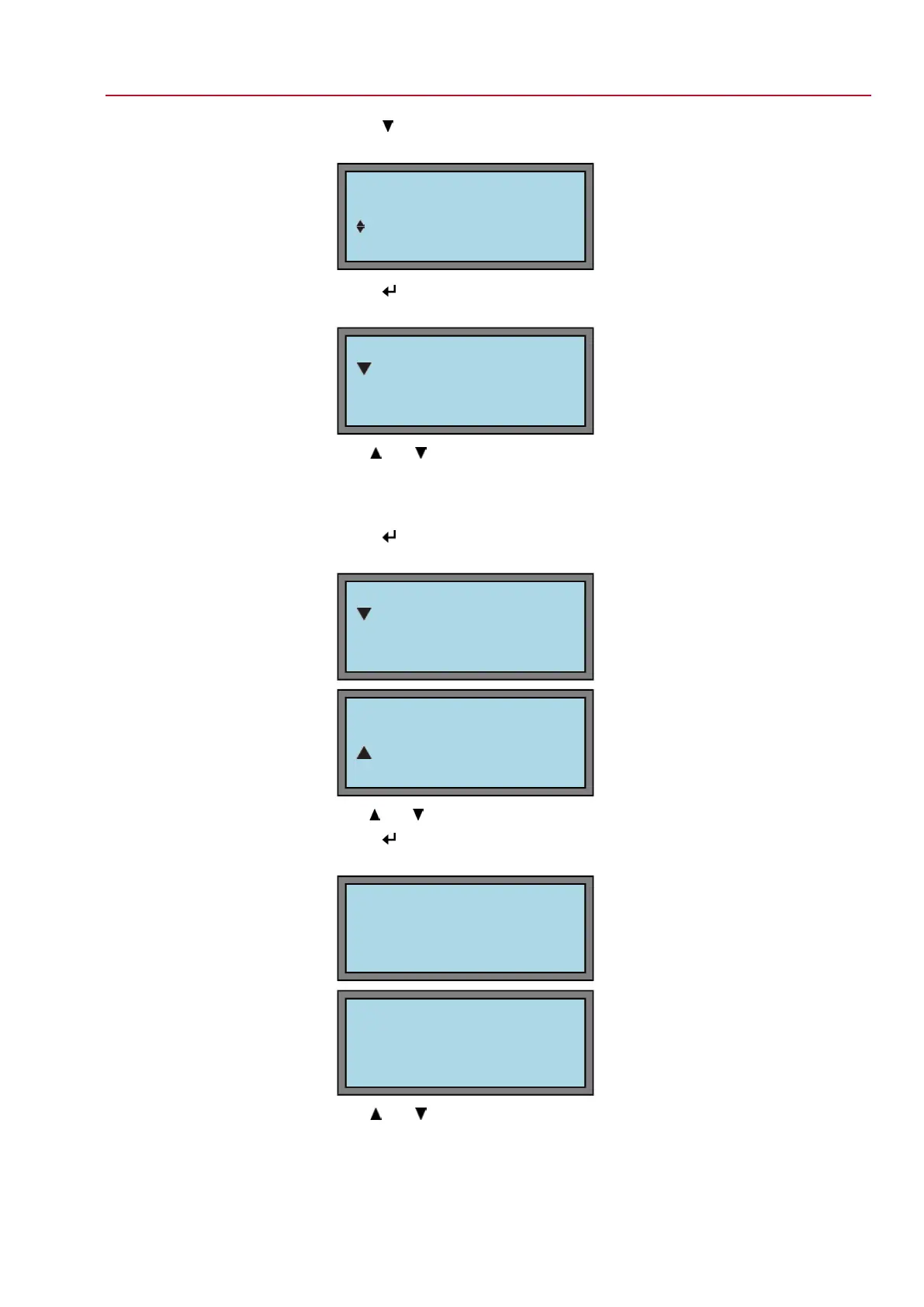

Display indicates:
SETTINGS M11
SET LIMIT SWITCHES
SEATING MODE
TORQUE
6.
Press .
➥
Display indicates:
SEATING MODE M110
VIEW
EDIT
Use and to select between VIEW and EDIT.
7. View or edit?
Display seating mode: continue with 8.
Change seating mode: continue with 11.
Display type of seating:
8.
Press .
➥
Display indicates:
VIEW M1100
OPEN POSITION
CLOSED POSITION
VIEW M1101
OPEN POSITION
CLOSED POSITION
Use and to select between OPEN POSITION and CLOSED POSITION.
9.
Press .
➥
Display indicates:
VIEW
OPEN POSITION
LIMIT
C:ESC
VIEW
CLOSED POSITION
LIMIT
C:ESC
Use and to also select here between OPEN POSITION and CLOSED
POSITION.
10.
Return to the VIEW/EDIT menu:
→
Press C twice.
41
