Axess Pro Series 3000 Owner Installation Instructions
Menu 9.0 Memory Tools
The Memory Tools accessed from within Menu 9 are used to clear the transmitter codes from the openers memory and
clear the controller’s memory. Once selected the PREV or NEXT buttons can be used to view the Memory Tool options.
To execute the displayed option simply press SET.
Menu 9.1 Clear Control
This option will clear the shutter control memory and reload the factory set defaults for parameters such as the lock time,
light time, Auto-Close times etc. It will also clear the travel limits.
Menu 9.2 Clear Transmitters (Tx’ers)
This option will clear the transmitter storage memory.
Appendix
D - Diagnostic Tools
Appendix
E - Memory Tools
Service Counter
(Cycles) 60000
1: Open Cycles
(Cycles) 500
Menu 8.5 Service Counter
The opener provides a periodic service counter which can be set
to expire after a number of drive cycles. When expired, the opener
will beep three times at the beginning of each drive cycle and a
message will be displayed on the MAIN SCREEN (Fig. D.7). This
tool displays the current value of the service counter and allows the
user to set its value using the normal parameter editing techniques
(See Appendix B). If the service counter is not to be used, it can be
set to the maximum number (60,000).
Menu 8.6 Event Counters
The opener keeps a count of number of times a particular event
occurs. The list of event counters kept is shown below. When this
tool is selected, the first event counter is shown (Fig. D.8). Press
NEXT or PREV to step through the list. The example shows the
OPEN CYCLE event counter with a value of 500. When finished
viewing press STOP.
1: Open Cycles 2: Close Cycles
3: PED Cycles 4: Setup Limits
5: Warranty Cycles 6: Open O/LS
7: Close O/LS 8: Open Stalls
9: Close Stalls 10: Direction Faults
11: Position Sensor faults 12: Drive Memory Faults
13: Position Wrap Faults 14: Console Volt Faults
15: PCB Temp Fault 16: Comms Compat Faults
17: INV logic faults 18: Low DC Bus Volt Faults
Menu 8.7 Install Data
i. Open Position: Shows the fully open position door counter.
ii. PED Position: Shows the pedestrian position counter.
iii. Open Time:Time taken for the opener to drive the door to
open position.
iv. Close Time: Time taken for the opener to drive the door
to the close position.
Menu 8.8 Parameters
Position of the limit counter, frequency, current used by
the motor, overload graph, PCB temperature and DC bus
voltage are displayed under this menu.
All the parameters mentioned above can also be viewed
while the opener is running. By default, the current used by
the motor will be displayed on the LCD screen. This can be
useful to check the condition of the shutter. Scroll through
other parameters by pressing NEXT or PREV buttons while
the shutter is running
Menu 8.9 Version Info
Firmware information for the Axess
®
Pro Series 3100’s drive
and console are shown here.

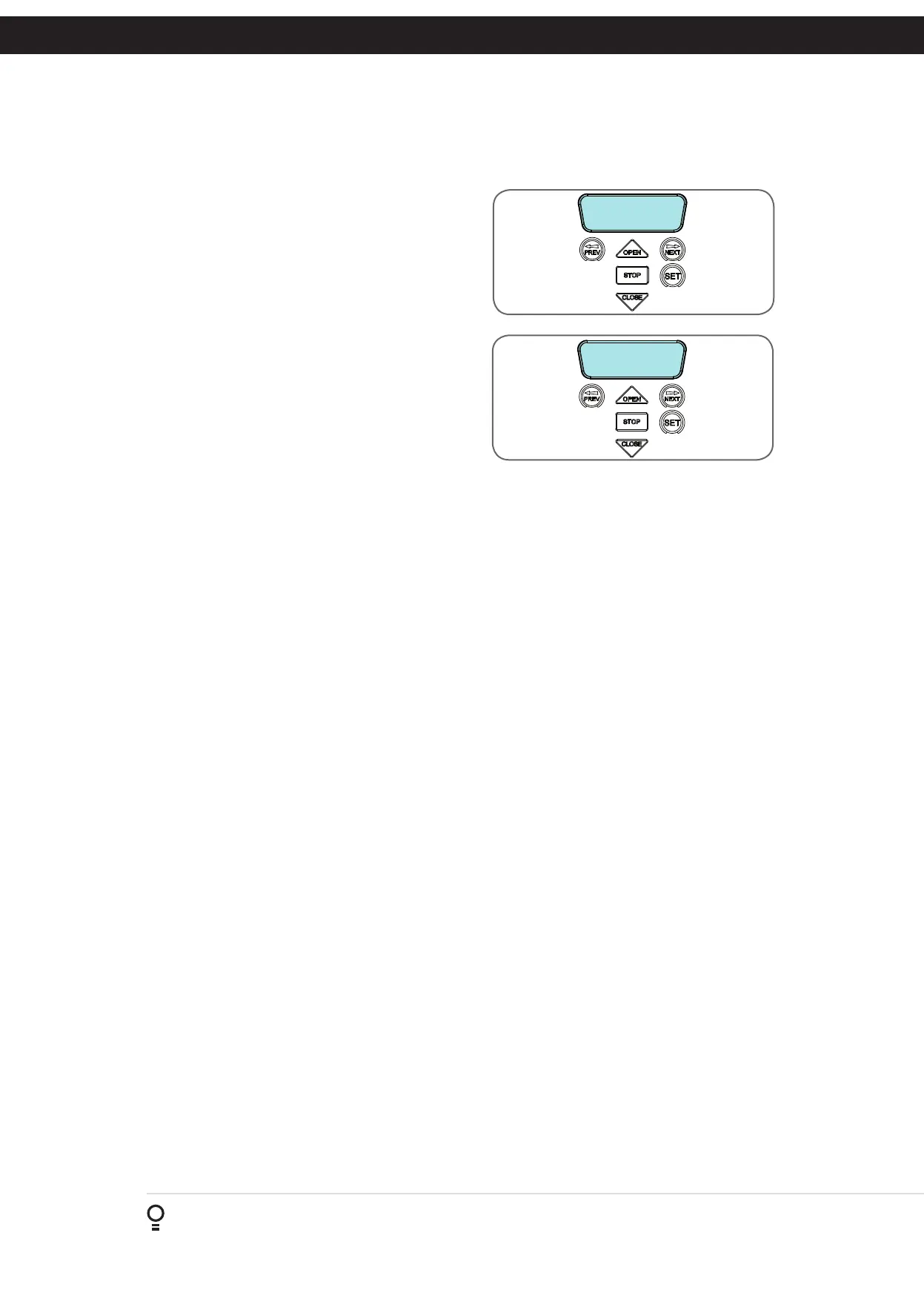

Fig D.7
Fig D.8
