Automatic Technology Axess Pro Series - Controller Input and Outputs

6
Axess Pro Series 3000 Owner Installation Instructions
3. Controller Input And Outputs
Motor identification harness connector
Clutch interlock microswitch connector
Serial interface connector
Position sensor connector
10 Amps slow blow mains fuse
03
04
02
01
05
01
02
03
04
05

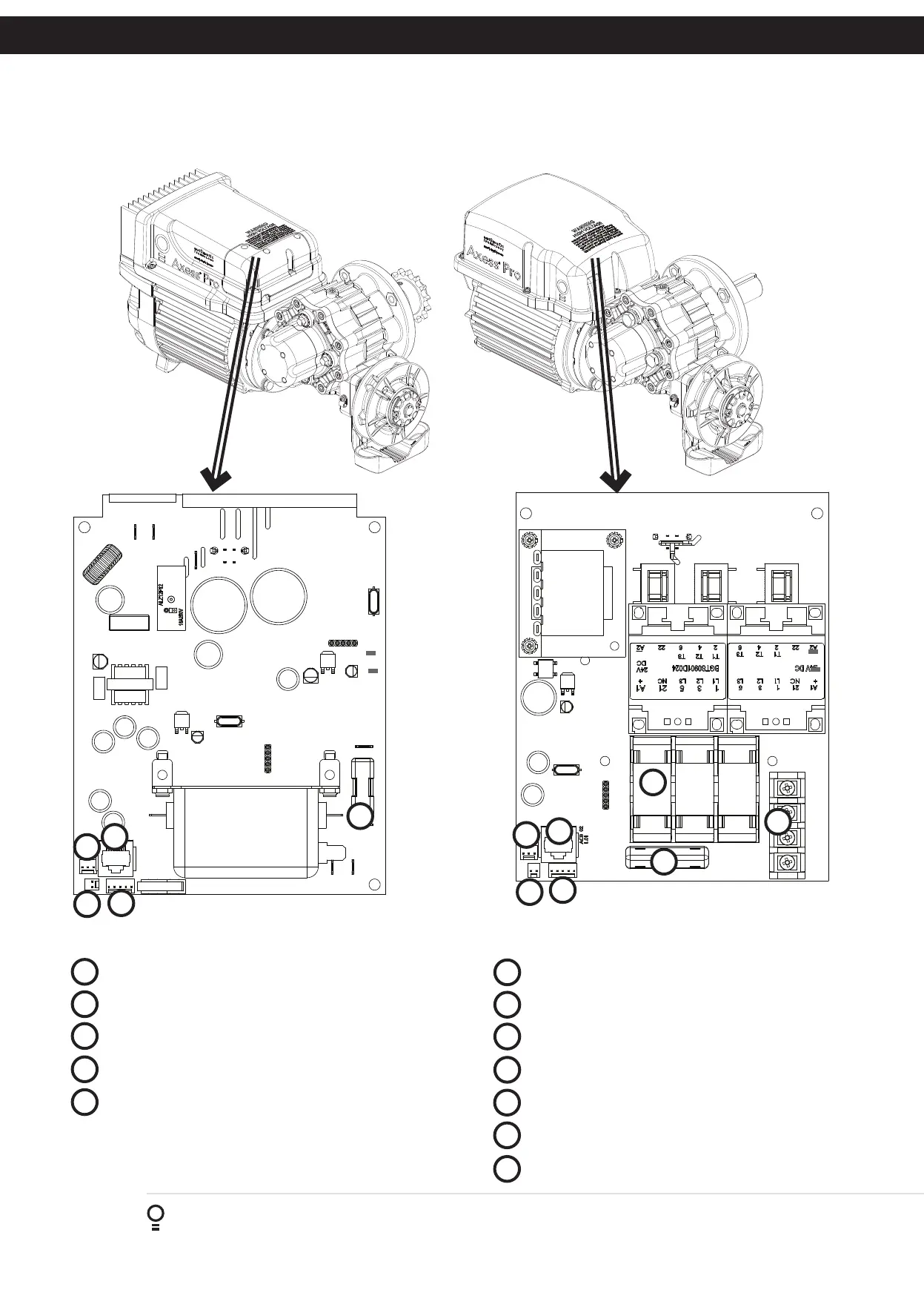

Fig 3.1
Fig 3.2 - AX3105 & AX3110
03
04
02
01
05
L1 L2
L3
EARTH
07
06
Fig 3.3 - AX3305, AX3310 & AX3315
Motor identification harness connector
Clutch interlock microswitch connector
Serial interface connector
Position sensor connector
FLQ10 - 500Vac time delayed fuse x 3
TDC11- 250mA 1000Vac slow blow fuse
3-phase 415Vac mains input terminal
01
02
03
04
05
06
07
