Axess Pro Series 3000 Owner Installation Instructions
This section illustrates how to locate, view and
adjust parameters in the logic console unit.
Locating parameters
Refer to MENU STRUCTURE on Page 15 or the preceding section for
CONTROL BOARD ADJUSTMENTS. Locate the required parameter

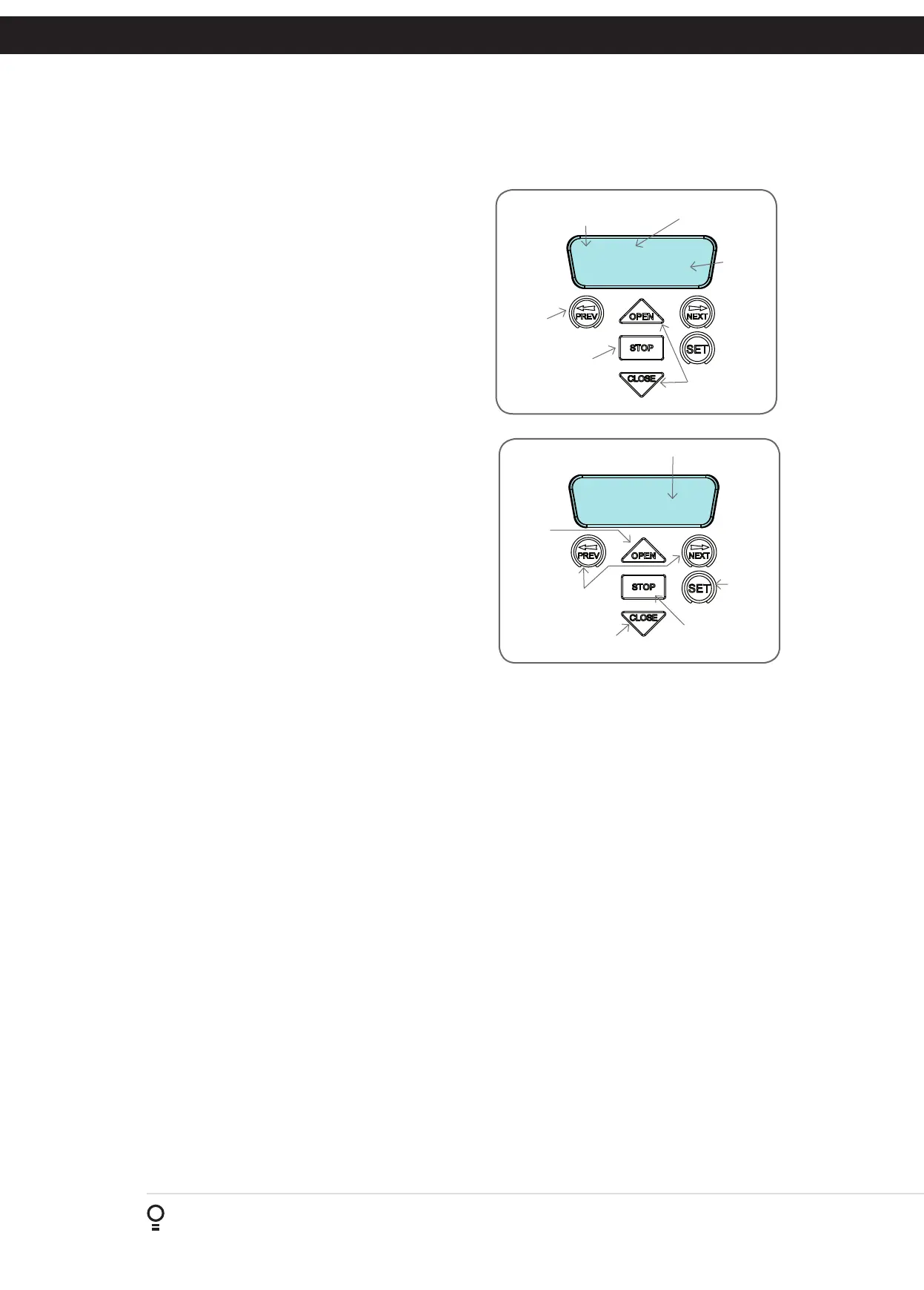

and note the MENU number. The example used in (Fig. B.1) displays
Menu 2.2 “100% O/L Time”
Changing Settings
a. Press NEXT/PREV to navigate to the required menu.
b. Press SET to show the sub-menu.
c. Press NEXT/PREV to go to the required sub-menu.
d. Press OPEN/CLOSE to change the parameter setting.
i. Holding the button down causes the parameter’s value to
change rapidly.
ii. The longer the button is held, the faster the value changes.
e. Press SET to SAVE the setting.
Reload Default Setting
a. Press NEXT/PREV buttons to display the LOAD DEFAULT screen.
b. Press SET to load the default value.
Return To Menu
If the parameter’s value is not to be changed, press STOP to return
to the sub menu. Press STOP again to return to the MAIN SCREEN.
2: 100% O/L Time
(sec) 10
(sec) 1∆
2: 100% O/L Time
Parameter name
Parameter
value
Displays next
parameter
in list
Parameter number in sub menu
Displays
previous
parameter in list
Returns back to menu
Enter Edit Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays “Load
Default?” screen,
giving option of
loading default value
Exits back to View Mode
Decrease
value
Saves new
value
Fig B.1
Fig B.2
Appendix
B - Viewing & Editing Logic Console Parameters
