Axess Pro Series 3000 Owner Installation Instructions
5. Set up Requirements

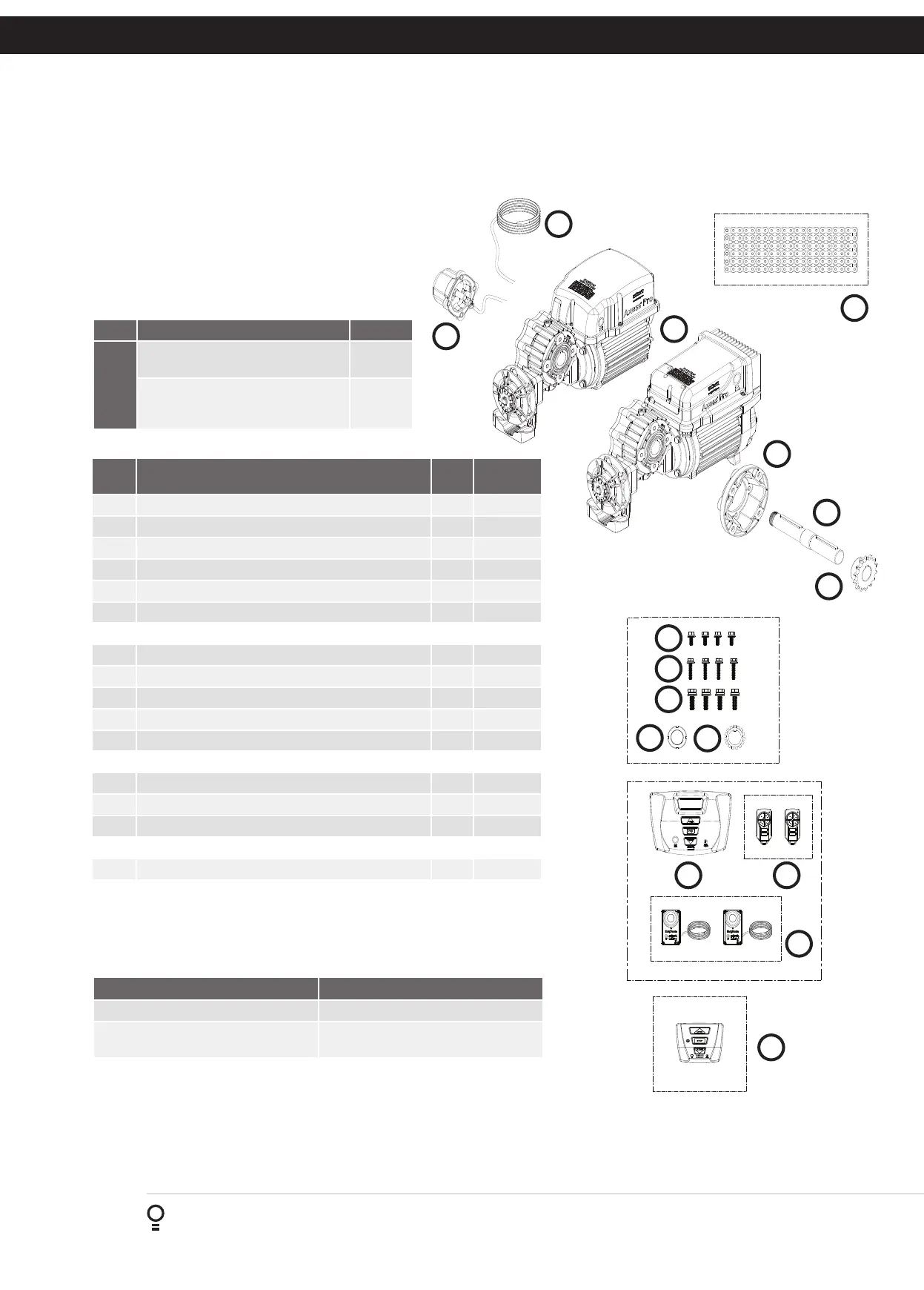

Fig 5.1
1
2
3
4
5
6
7
8
9
10
11
12
ITEM DESCRIPTION QTY ORDER
CODE
2 COMMUNICATION CABLE 1 61909
3 TIMING ASSEMBLY 1 61868
4 MOUNTING FLANGE 1 18026
5 OUTPUT DRIVE SHAFT ASSEMBLY 1 64536
6 SPROCKET 14T (0.625”) 1 64703
7 CHAIN 10B (0.625’) 1 63026
AX30 FASTENER PACK (61703)
8 HEX BOLT DW M8 X 20 AND WASHERS 4 10116
9 HEX HEAD SCREW M8 X 38 AND WASHER 4 10105
10 HEX HEAD SCREW ZP (M12 X 35) AND WASHERS 4 10068
11 LOCK NUT KM6 1 10935
12 LOCKING WASHER MB6 1 10985
AUTOMATED FULL LOGIC SET UP
13 LOGIC CONSOLE 1 18050
14 TRICODE
TM
128 KEYRING TRANSMITTERS 2 61160
15 SAFETY BEAMS WITH WIRES AND BRACKETS 1 61903
DEAD MAN SET UP
16 MANUAL CONSOLE 1 18051
13 14
15
16
5.2 Choosing your Set up
The Axess Pro 3000 can be set up in two ways and therefore may require additional
items. Set ups are as follows;
Set Up Items Required
Dead Man Set Up Drive Unit, Manual Console
Automated Full Logic Set Up with
Safety Beams
Drive Unit, Logic Console, transmitter
and safety beams.
5.1 Kit Contents
ITEM DESCRIPTION MODEL
1
AXESS 3100 POWER DRIVE UNIT
(Single Phase Power)
AX3105
AX3110
AXESS 3300 POWER DRIVE UNIT
(Three Phase Power)
AX3305
AX3310
AX3315
