MENU 1
Code Transmitter
PR E S S
Display Transmitter Record
Using one of the methods below, you can display the required
transmitters details.
Navigating To “Edit Transmitter” Menu
a. Press NEXT to navigate to Menu 1 (Fig. F.1) .
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
a. Press NEXT or PREV to move the cursor to the left or right and
between the top and bottom lines to select the desired field.
b. Press OPEN or CLOSE to change the displayed value (Fig. F.2).
The available functions are shown below. Selecting OFF will
prevent the opener responding to that button.
Available functions
OSC (Open/Stop/Close)
PED (Pedestrian access)
SWP (Swipe)
CLS (Close)
OPN (Open)
STP (Stop)
LGT (Courtesy Light)
VAC (Vacation Mode)
AUX (Auxiliary )
OFF (No action)
NOTE: OSC will change to OS and CLS (Close) function is not
available in the case where PE Beams are not installed.
c. Press SET to save changes or press NEXT or PREV to move to
the next field.
i. The example in (Fig. F.3) shows that PED is assigned to the
transmitter button two.
ii. The transmitter in the example is transmitter number 14
which has the ID label AB Smith.
NOTE: If all button functions are set to OFF, when SET is pressed,
the opener will prompt to confirm if the transmitter is to be deleted.
Press SET to delete or STOP to continue editing.
Appendix
F - Transmitter Editing

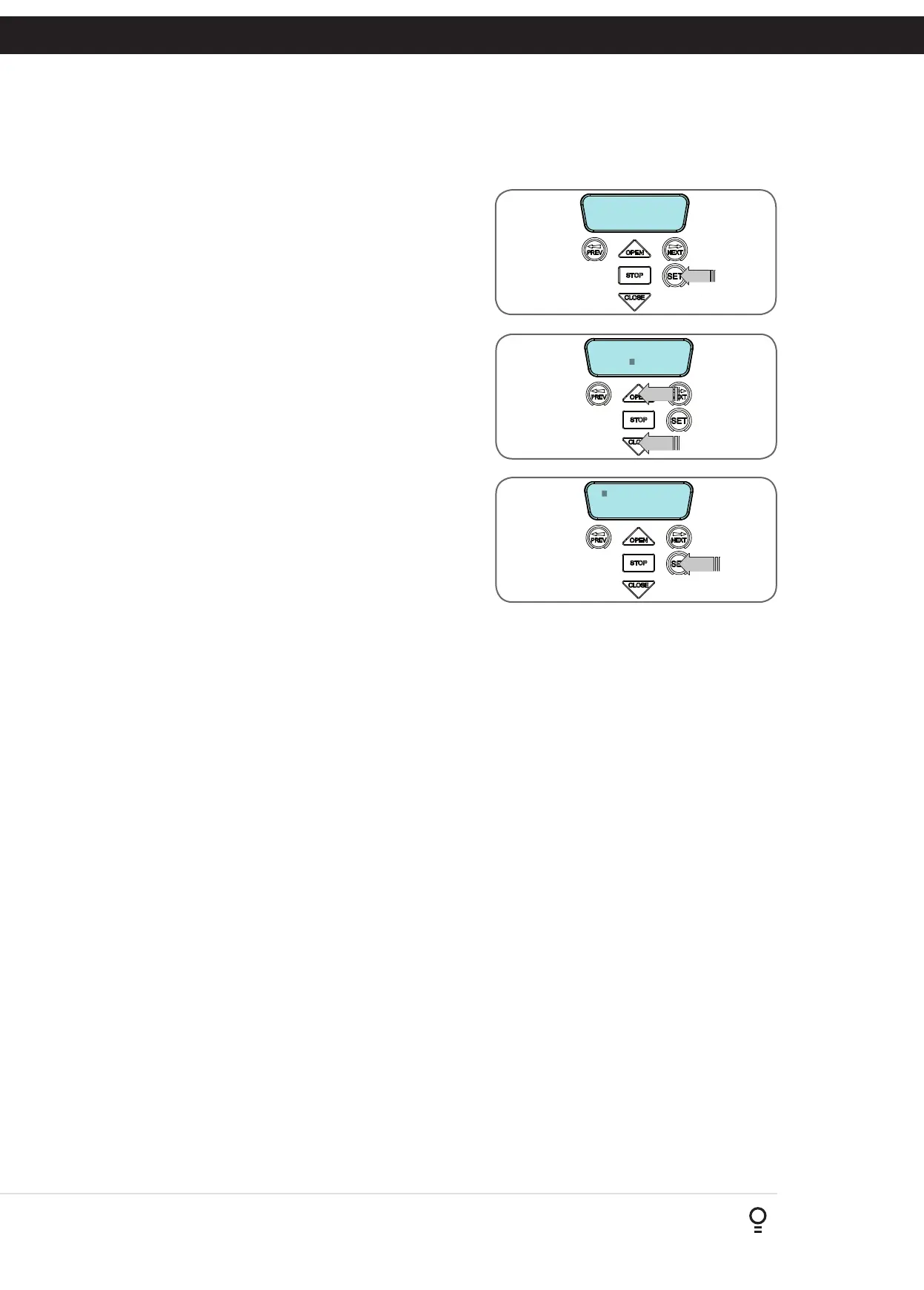

Fig F.1
