Chapter 6: Accessories
Page 6–3Stellar
®
SR55 Series Soft Starter User Manual – 1st Ed, Rev F – 09/18/2019

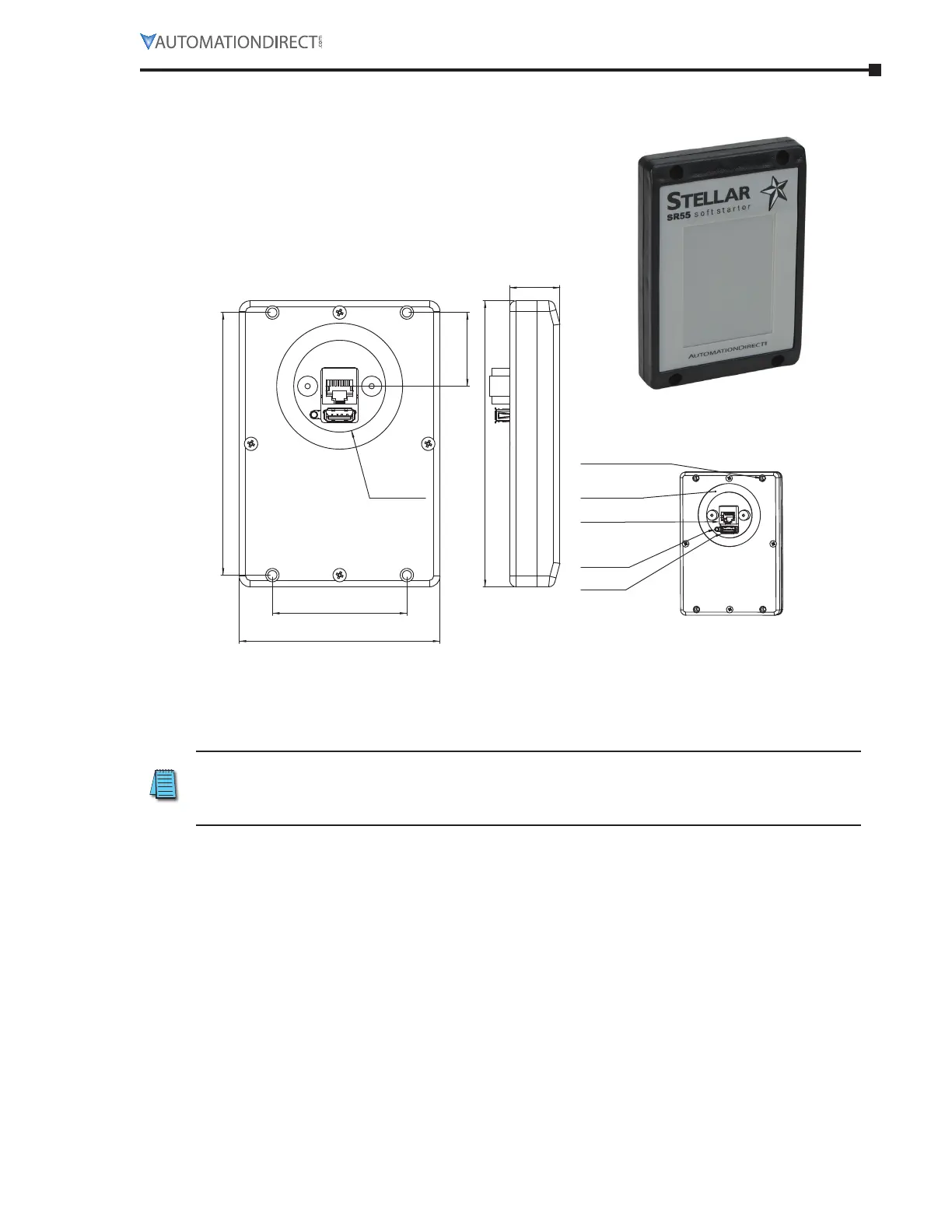

remoTe TouChsCreen
sr55-kpd-rem
1.36
[34.5]
5.30
[134.0]
0.90
[23.5]
Neoprene Gasket
RJ45 Socket
(for connecting to
starter)
Reset Switch
USB Socket
(for firmware
updates only)
4x Mounting Holes
No.6 self tapping screws
or M3.5 Machine screws
Ø1.69
[Ø43.0]
Diameter hole
cut in panel
2.50
[63.0]
3.70
[94.0]
[123.0]
The optional remote touchscreen allows remote monitoring, configuration, and control of
SR55 soft starters. Since the touchscreen is a master RS-485 device, it can control multiple
SR55 soft starters. Includes a 3m (9.8ft) Cat5e cable and an SR55-RJ45-RJ12 adapter cable.
hoW To ConneCT and use remoTe TouChsCreen
The SR55-REM-KPD Remote Keypad is a Modbus master. If the Remote Keypad is connected to
an SR55, that starter will not be able to communicate with a PLC or other 3rd party Modbus
master (only one master is allowed on a Modbus network). For similar reasons, the Remote
Keypad also cannot be used with the Modbus TCP or Ethernet IP communication modules.
