Autonics Digipower 2000 - Part descriptions

1.Productintroduction
13
©CopyrightReservedAutonicsCo.,Ltd.

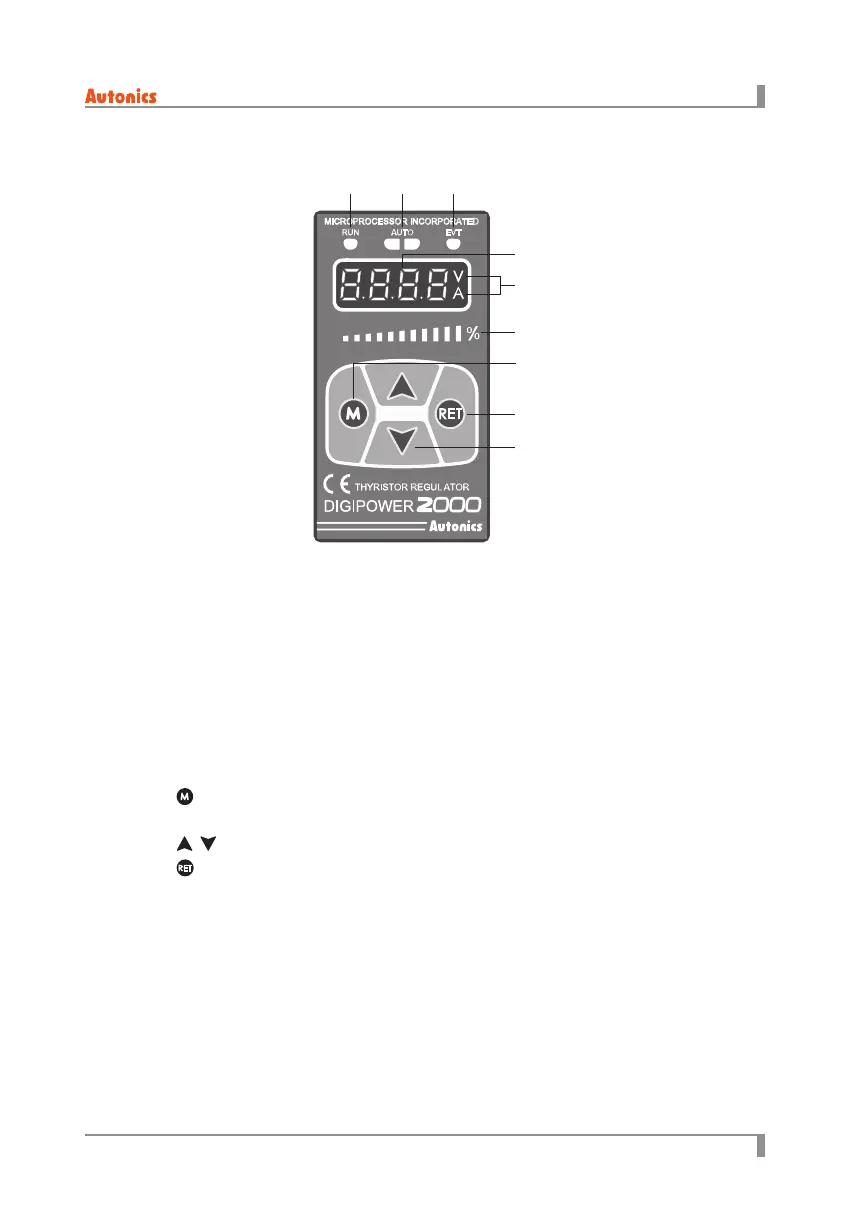

1.3 Partdescriptions
①
RUN indicator: Turns ON in RUN, turns OFF in STOP.
②
AUTO indicator: Turns ON in AUTO, turns OFF in MANUAL.
③
EVT indicator: Turns ON in Digital Input (DI-1 to 3) ON, ashes in alarm output.
④
Display part: Displays selected display value content in RUN mode,
Displays parameter and set value in SET mode.
⑤
V, A indicators: The V indicator turns ON when displaying voltage,
The A indicator turns ON when displaying current,
The V, A indicators turn ON when displaying power,
The V, A indicators turn OFF when displays resistance and input value.
⑥
Bar display: Turns ON as 0 to 100% ratio for selected display value.
⑦
key: Used to enter parameter mode, monitoring mode and to move between
parameters.
⑧
, key: Used to move setting modes and to set parameters.
⑨
key: Used to return to RUN mode from SET mode
① ② ③
④
⑦
⑤
⑥
⑨
⑧
