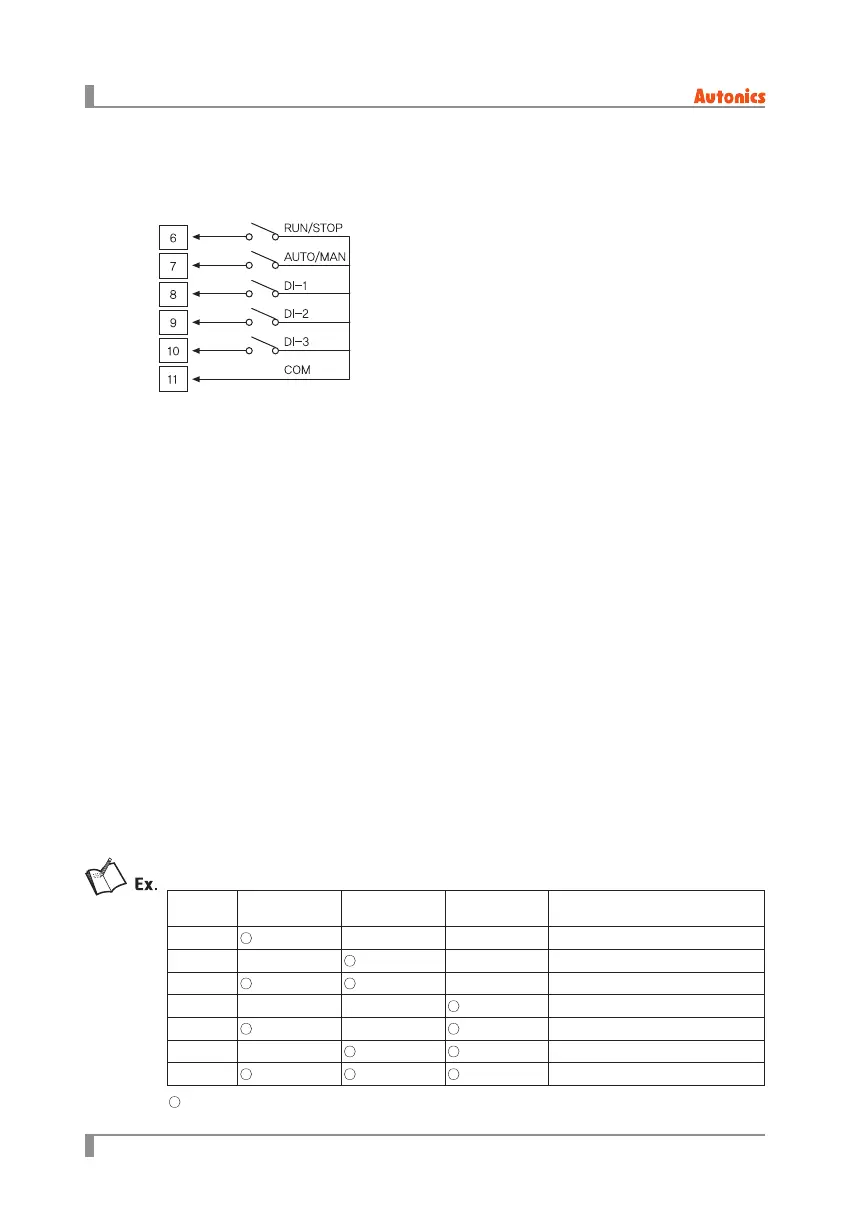

6.2.9 Digitalinput(DI)
Below functions are available by terminal input.
Digital input has ve terminals; AUTO/MANUAL terminal, RUN/STOP terminal, and DI-1 to 3
terminals. Select the function for each input terminal of DI-1 to 3.
(1)AUTO/MANUALselection[no.7–no.11terminals]
Select AUTO(close)/MANUAL(open) input by terminal input.
AUTO mode controls output according to control input as analog input (voltage, current) or ON/
OFF input (including SSR pulse input).
MANUAL mode controls according to control input as the internal VR adjustment or the external
VR adjustment.
When selecting AUTO (close), the front AUTO indicator turns ON or selecting MANUAL(open), the
front AUTO indicator turns OFF.
(2)Run/Stopswitchingdigitalinput[no.6–no.11terminals]
Select RUN(close)/STOP(open) operation status by terminal input.
RUN mode operates as the set contents by control input. STOP mode is standby status.
When selecting RUN(close), the front RUN indicator turns ON or selecting STOP(open), the front
RUN indicator turns OFF.
(3)Digitalinput(DI1toDI3)settings
Select the each function for each digital input.
When setting ON(close) to DI input, the front EVT indicator turns ON or setting OFF(open), the
front EVT indicator turns OFF.
• Multi SP[
SP-M
]
It is available to set total 6 SPs. When selecting [
SP-M
] at [
DI-1
], [
DI-2
] and [
DI-3
]
parameters are not displayed and 6 parameters SP1 to SP6 to set SPs are displayed in
operating mode.
DI-1 DI-2 DI-3
Operating mode SP value set
parameter
A
X X
SP-1
(20%)
B X
X
SP-2
(40%)
C
X
SP-3
(60%)
D X X
SP-4
(80%)
E
X
SP-5
(100%)
F X
SP-6
(0%)
G
-
: Close, X: Open
