6.Parametersettingandfunctions
34
©CopyrightReservedAutonicsCo.,Ltd.

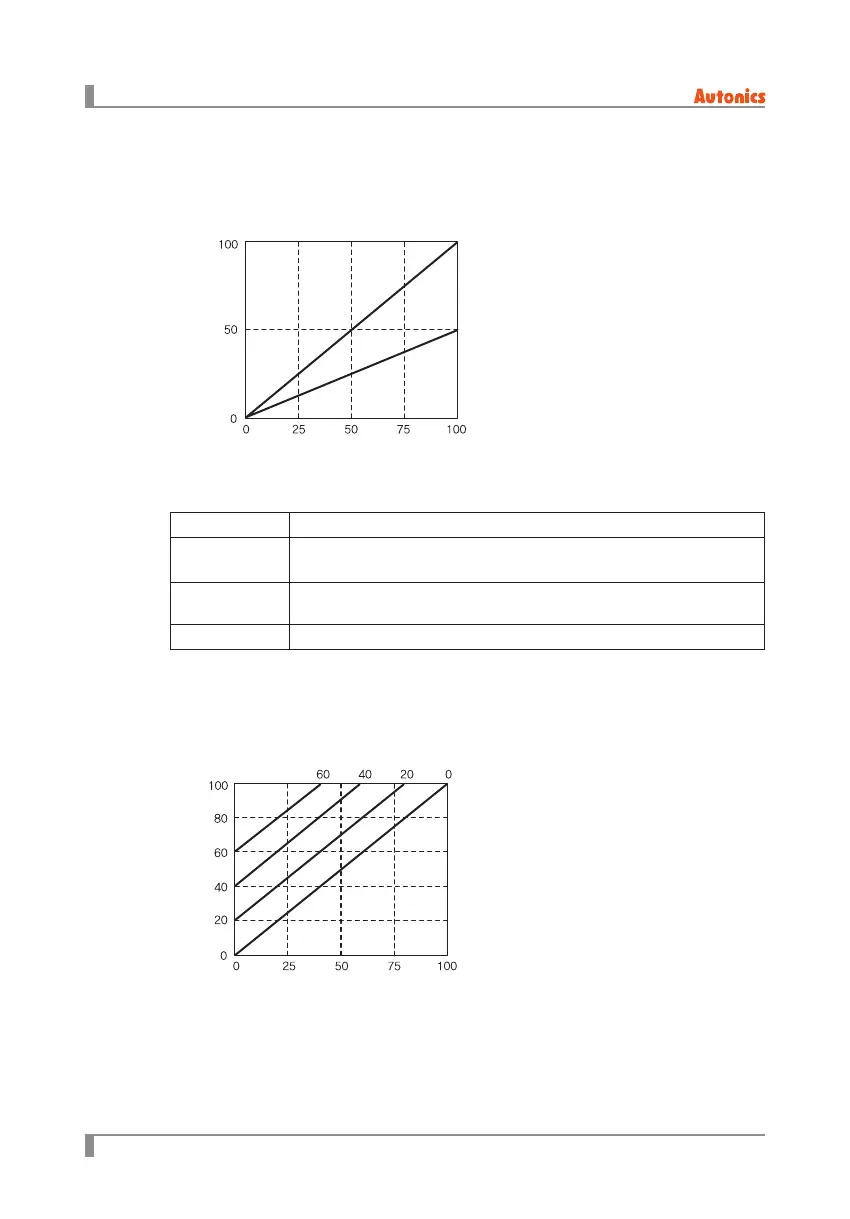

6.2.5 Outputslopemanualadjustment[
A-GA
]
This function is to adjust manually (internal or external VR) output value ratio for control input.
When setting AUTO GAIN function as ON in AUTO operation, [
SLOP
] is not displayed. It displays
slope value by the internal or external VR input.
6.2.6 Base-up[
B-UP
]
This function is to add base-up set value to input signal.
It is available only when output low-limit value is 0%.
When setting base-up, output value is input (%) X slope value + base-up set value. It is limited by
start limit value at initial start.
• Set range: Base-up set value (%) < Output high-limit value
• Output slope manual adjustment [
A-GA
] setting as ON: Set output slope by the inner 3- level
slide switch
100% of internal or
external VR
50% of internal or
external VR
Control input signal(%)
Output(%)
Type Description
MAN
INT
Adjust output slope with the internal VR
MAN
EXT
Adjust output slope with the external VR
AUTO No function
BASE-UP SV(%)
Control input signal(%)
Output(%)
