Autonics Digipower 2000 - Input slope correction [ SPAN ]; Display value content selection [ DISP ]; Bar graph content selection [ BAR ]

6.Parametersettingandfunctions
39
©CopyrightReservedAutonicsCo.,Ltd.

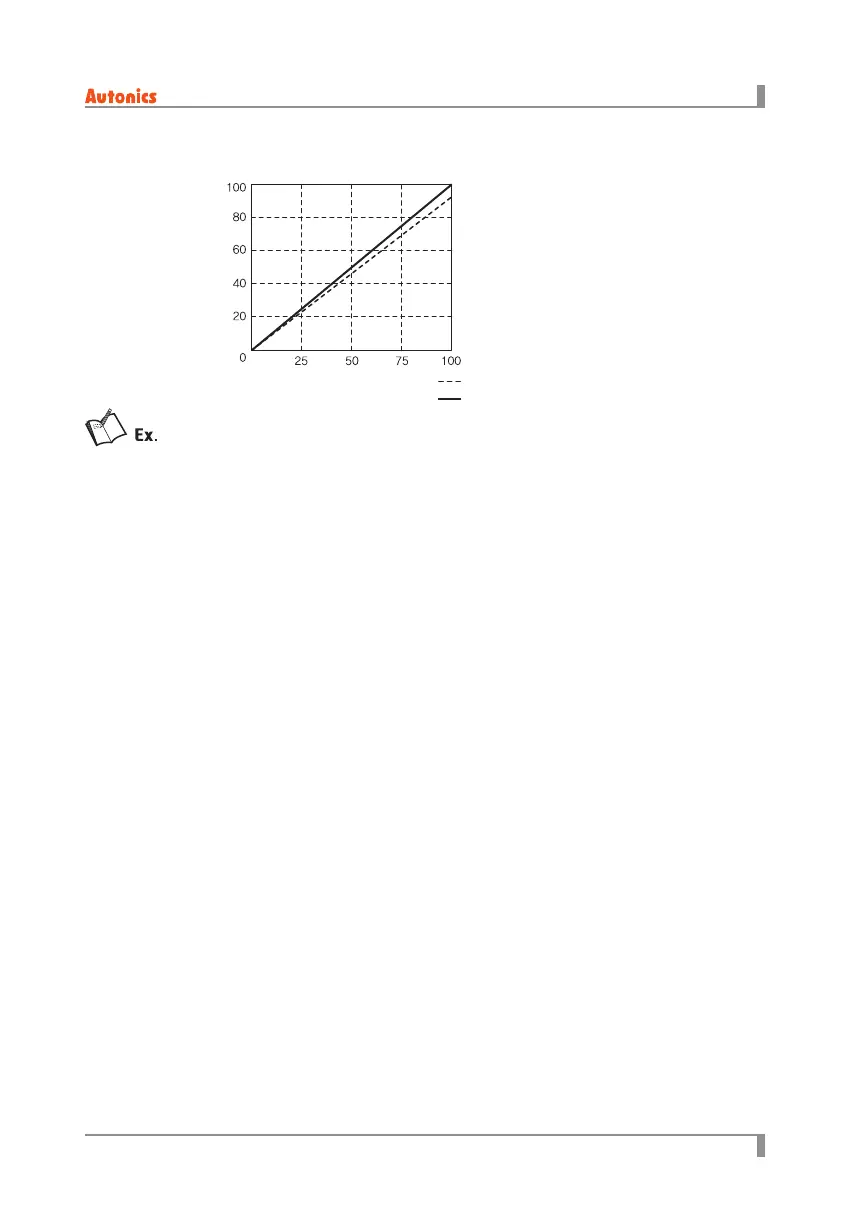

6.2.12 Inputslopecorrection[
SPAN
]
It compensates the slope of the measured 100% input for actual 100% input value.
Input type is 4 to 20mA.
When 20mA is applied and the input monitor value displays 99.5%, set
SPAN
as
0.5
and the input
monitor value is 100.0%.
• Set range: -99.9 to 99.9 (unit: %)
6.2.13 Displayvaluecontentselection[
DISP
],
 bargraphcontentselection[
BAR
]
You can select display value content for the display part and bar graph in RUN mode.
• Display range: load voltage [
LD-U
], load current[
LD-A
], power [
YK
], control input [
REF
]
Actual input signal(%)
Input corrected signal(%)
Output
input signal
(%)
Actual input signal (%)
