• Single SP[
SP-1
,
SP-2
,
SP-3
]
For single SP, set
SP-1
,
SP-2
,
SP-3
to each digital input for output to reach to the relevant SP.
It is available to set individually and duplicated and it is relevant with setting point [
SP1
to
SP3
].
• RESET[
RST
]
After selecting RESET function, turn digital input ON(close) and open, this unit resets and re-
starts.
• HOLD[
HOLD
]
After selecting HOLD function and digital input is ON(close), output and display value of this unit
is hold. (it operates hold when digital input maintains ON(close) status.)
※

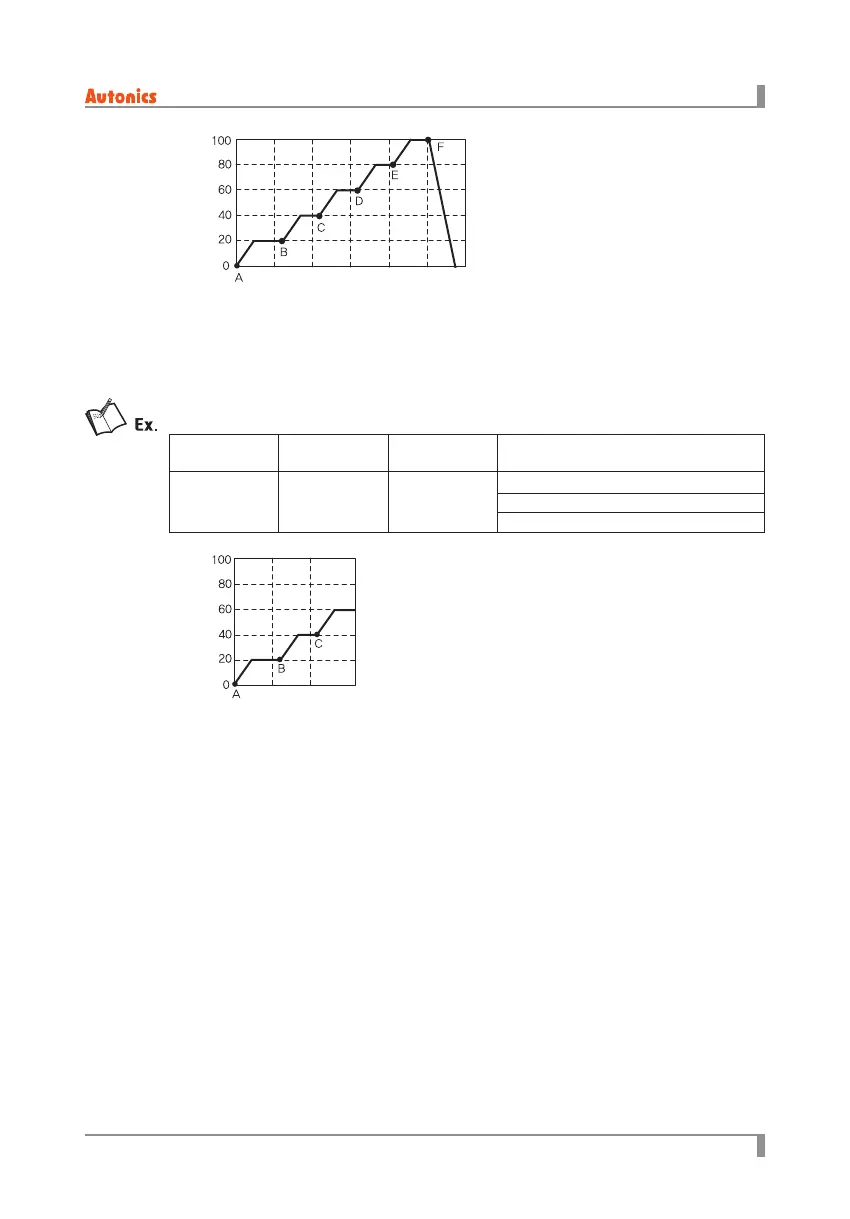

A, B, C, D, E, F
: Close/Open status of Digital Input
Output
(%)
DI-1 DI-2 DI-3
Operation Mode
Setting point1 to 3 [
SP1
to
SP3
] parameter
SP-1 SP-2 SP-3
SP-1
(ex:20%)
SP-2
(ex:40%)
SP-3
(ex:60%)
A: DI-1 is ON
B: DI-2 is ON
C: DI-3 is ON
Output
(%)
