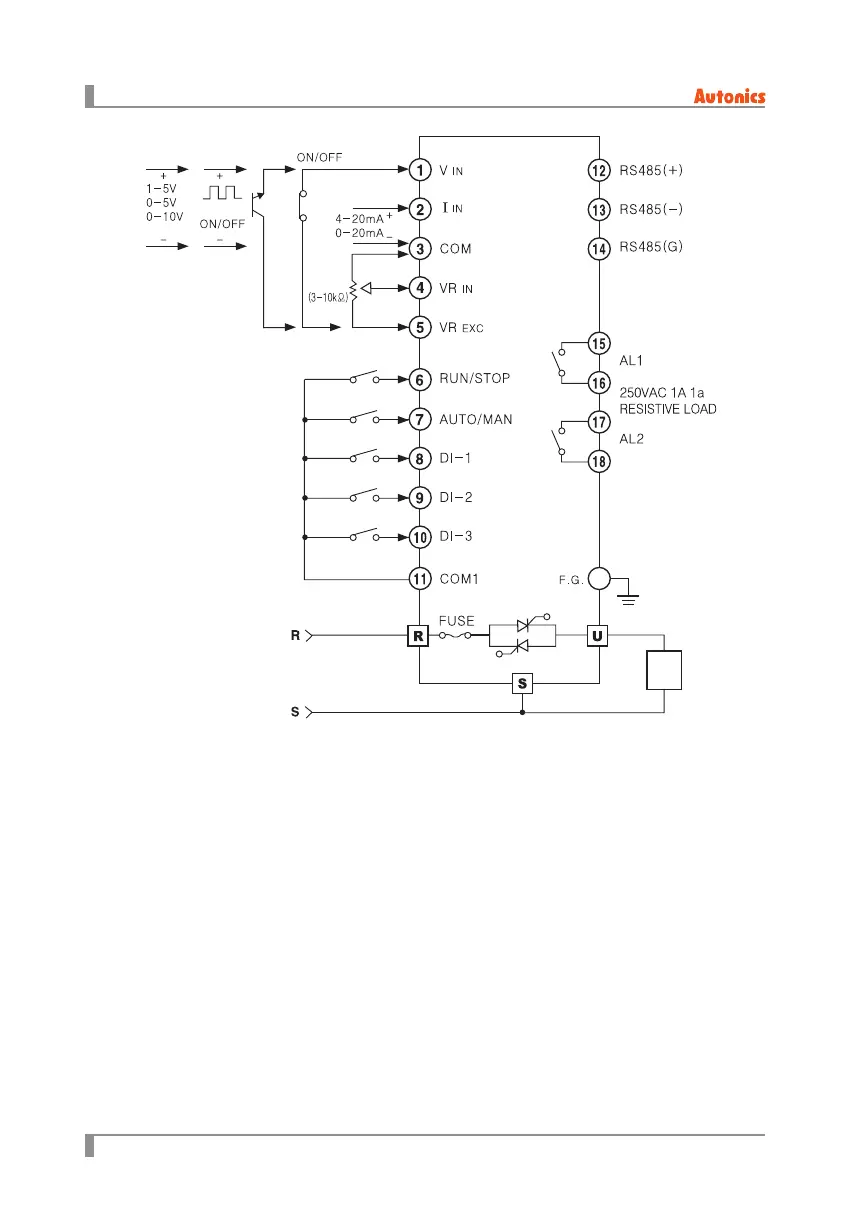

4.Connections
20
©CopyrightReservedAutonicsCo.,Ltd.
※
1. Do not mix noise to input cable.
It is recommended to use shield cable,
twisted cable as input cable for effective noise.
※
2. If there is possible to affect inductive noise,
it is recommended to use shielded cable at high-frequency power for effective noise.
※
3. DI input switch should be for low current and ON resistance should be max. 20Ω (including cable
resistance).
※
4. DI input terminals are COM, DI-1 to 3, RUN, AUTO.
※
5. For remote display unit option model,
use connection cable as our standard cable.
※
6. When connecting
⑥
,
⑪
, it operates as MANUAL. When connecting,
⑥
,
⑦
,
⑪
,
it operates AUTO.
Voltage Input
External VR
Voltage
Input
AC POWER IN
LOAD
To Next Page
