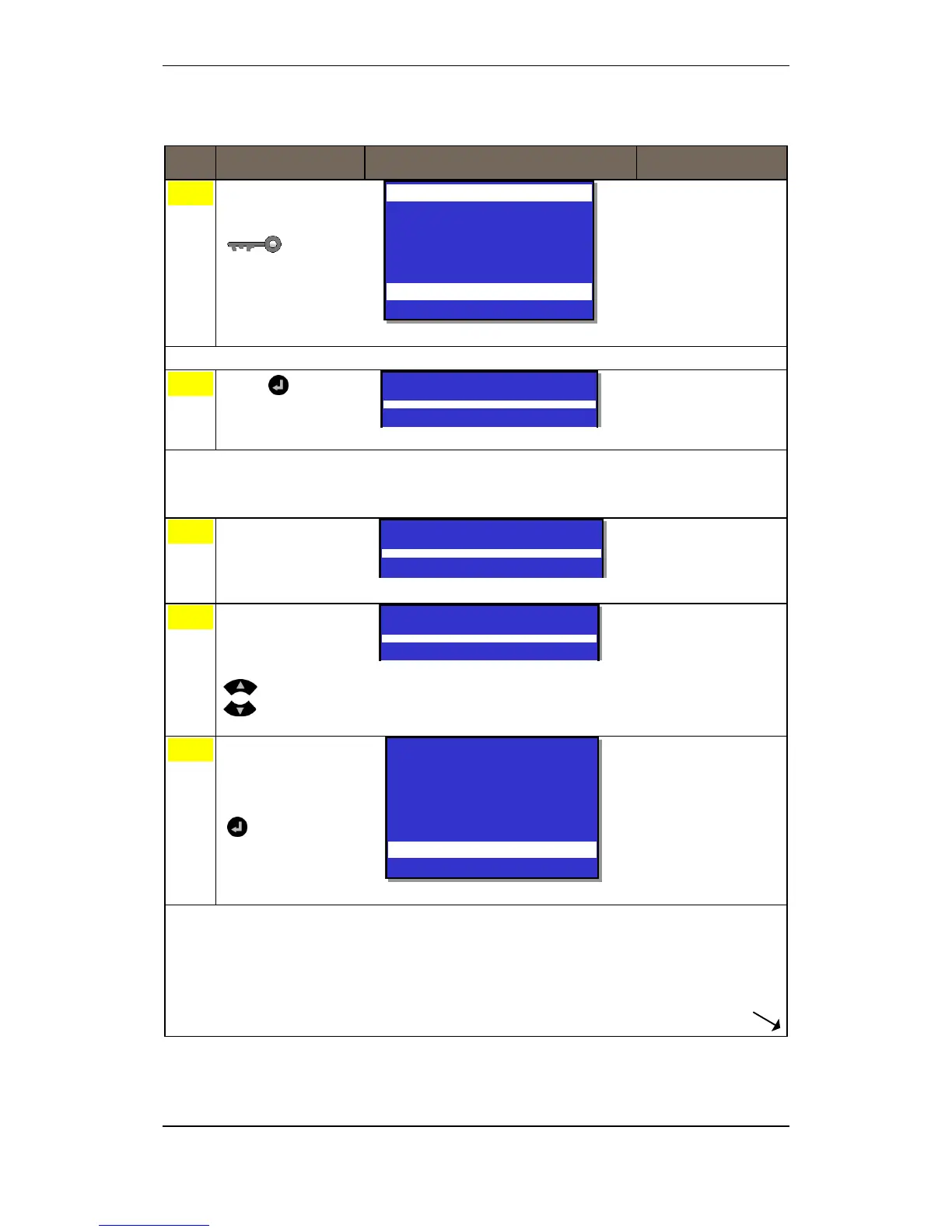

8.2 Actions to be Taken in the Event of Faults
Step Actions to be taken Display Indication Audible Indication
1
Notify
service/technical
personnel.
The internal buzzer on
the operator panel is
turned on.
Comments: The yellow FAULT indicator starts to blink.
2
Press and
observe the fault
warnings in the
display.
Comments: In this example, points in detection zone (1 OFFICES) are in fault warning
state. Both the detection zone and the related loop, are registered as fault
warnings (Total 2).
NOTE: An audible indication of loss of POWER cannot be silenced.
3
Make service/technical
personnel investigate
the scene(s) and carry
out the necessary
actions.
4
To select a fault
warning
(if there are several
fault warnings), scroll
with the arrow buttons
5
To view detailed
information for the
selected fault warning
(in this example,
«OFFICES»), press
Comments: Note that other types of faults are operated differently than what is described
in this example. A Fire Alarm Device (FAD) in fault warning state, for example,
can be accepted at this stage by pressing Action Digit 3 (ACCEPT FAULT
WARNING).
If you want to view detailed information on other fault warnings, you have to
press the CLOSE WINDOW button, then repeat step 5 and 6. If you want to
accept each fault warning in turn, go directly to step 7.
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT WARNINGS
19:23
Total: 2
Total: 1
Total: 1
DZ FAULTS
1 OFFICES
OTHER FAULTS
1 LOOP (2)
FAULT INFO
UNIT IN FAULT: OFFICE
TYPE:
DATA
OPERABILITY
DATA: 0
(REPORTED BY (F/L/S): 30001/687/0
19:23
1: SHOW POINTS
FAULT INFO
UNIT IN FAULT: OFFICE
TYPE:
DATA
OPERABILITY
DATA: 0
(REPORTED BY (F/L/S): 30001/687/0
19:23
1: SHOW POINTS
