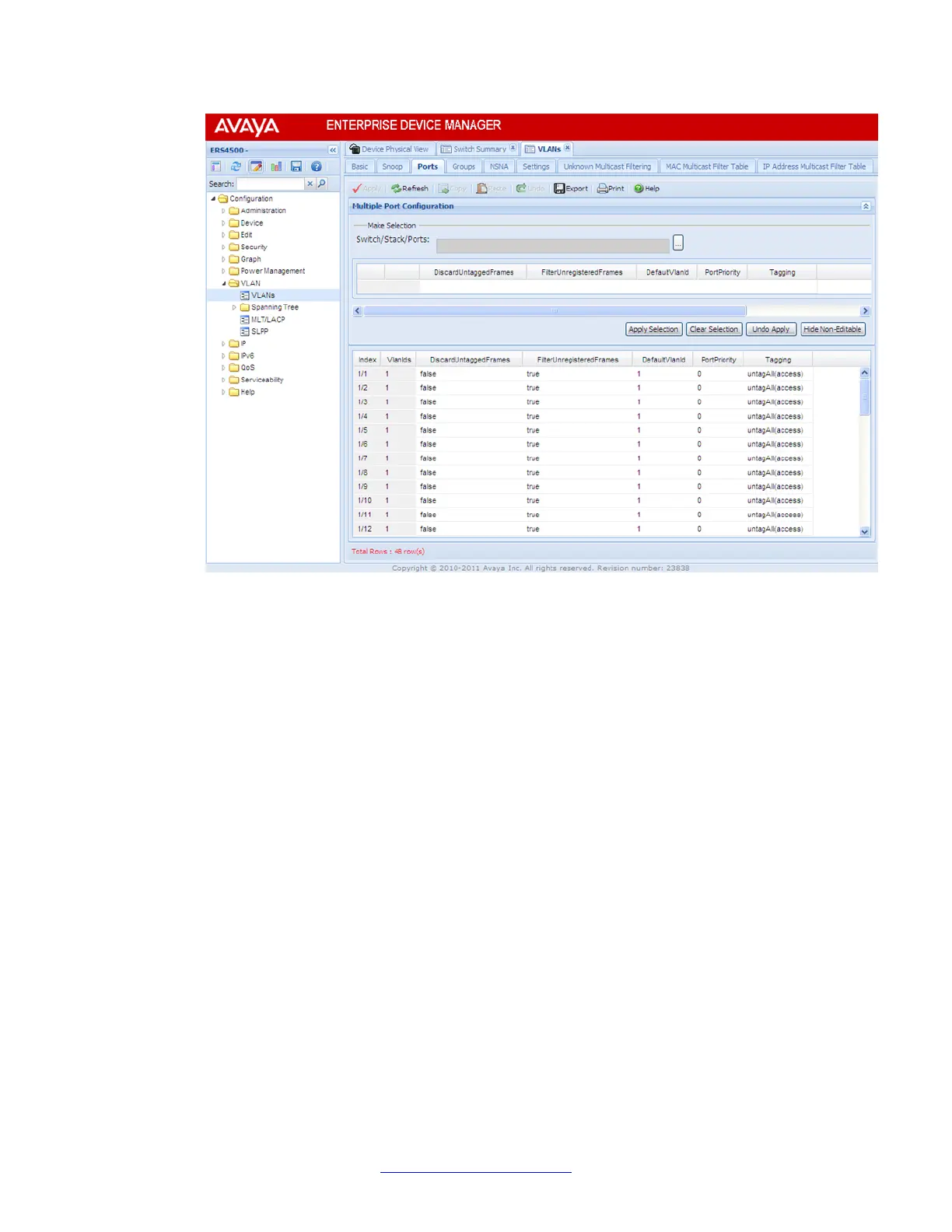

Figure 10: VLAN, VLANs - Ports tab
Multiple Port Configuration for EDM
When you need to apply the same configuration changes to more than one port, you can use
the Multiple Port Configuration function in any the following ways:
• In the Device Physical View, hold down the Ctrl key and click the ports. Then select the
appropriate tab in the Edit > Chassis > Ports work area to configure the ports.
• In the Device Physical View, hold down the Ctrl key and click the ports you want to
configure. Then right-click and select Edit from the menu.
• In the Device Physical View click and drag to surround a group of related ports. Then
select the appropriate tab in the Edit > Chassis > Ports work area to configure the
ports.
• In the Device Physical View, click and drag to surround a group of related ports. Then
right-click and select Edit from the menu.
The system can generate error messages if you apply a change to all ports when some ports
in the list do not support the change. The error messages provide only the error information
and do not list individual ports.
The following sections use the Edit > Chassis > Ports > Interface tab work area to describe
the available Multiple Port Configuration functions.
