Scenario 1
A business requiring 180 Display Telephones and 96 Digital lines with 20 Analog lines for fall back
purposes in the event of the T1 service failing.

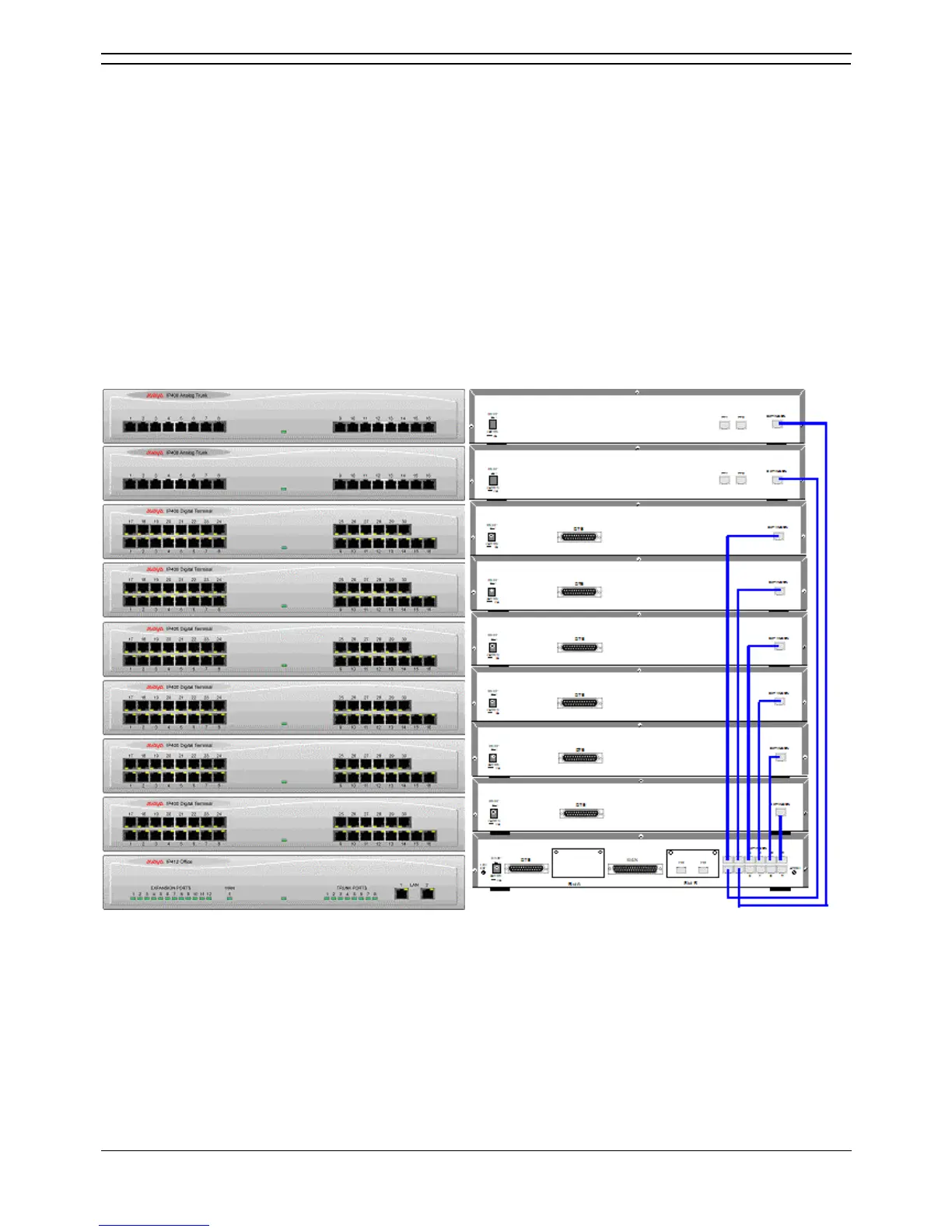

The configuration illustrates a fully configured IP412 Office providing 180 extensions and 96 digital
trunks (4 x T1) and two IP400 Office Analog Trunk 16 modules offering capacity of up to 32 analog trunk
lines. Factory shipped with a single Dual PRI T1 interface, the system is fitted with an extra trunk card in
its spare slot to provide the additional 48 lines.
Kit List
• IP412 Office PRI 48 T1
• 6 X IP400 Office Digital Station 30 Module
• 2 x IP400 Office Analog Trunk 16
• 180 x Avaya 6412 Digital Terminals
