IP401 Compact Office Wall Mounting

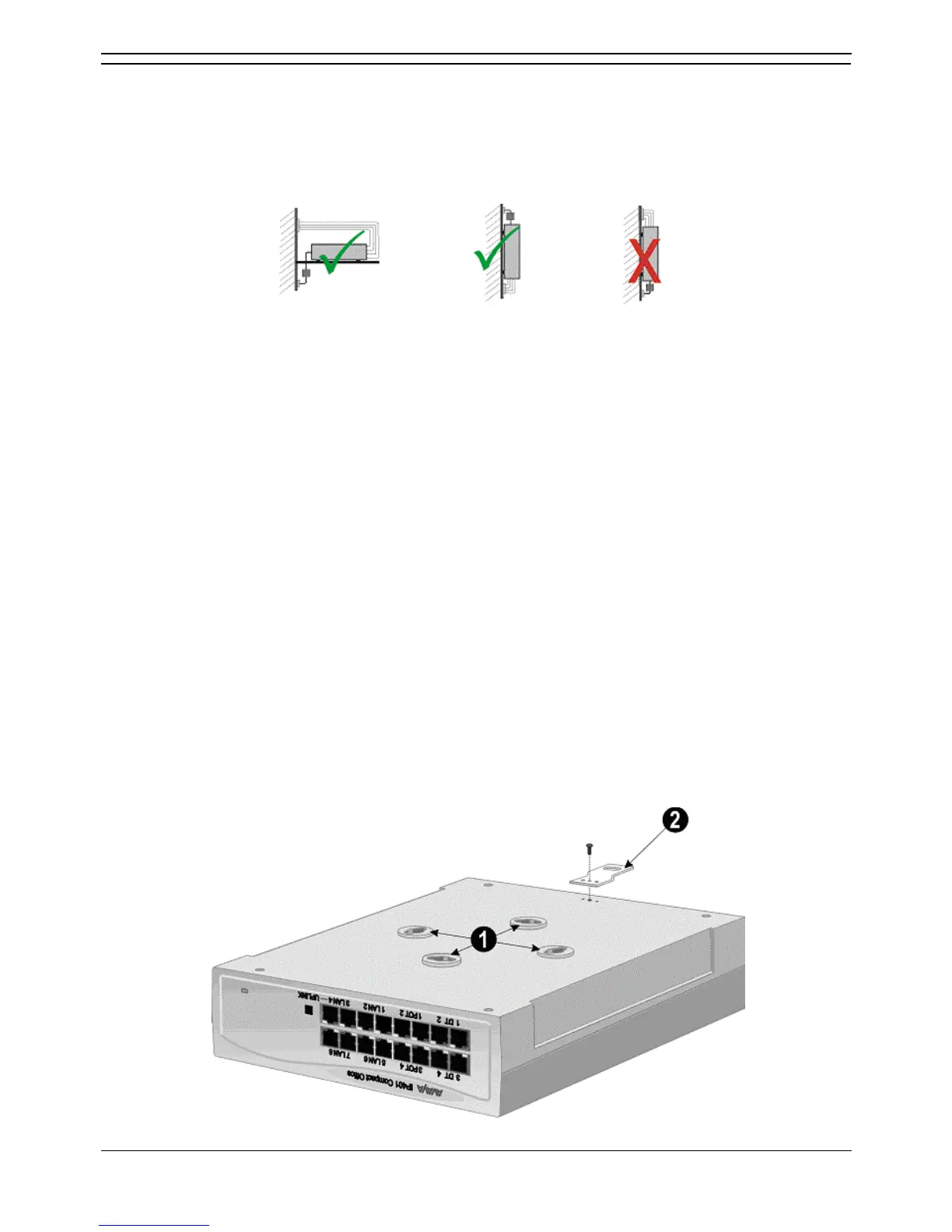

All variants of the IP401 Compact Office can be either shelf or wall mounted. Four retaining slots (item
(1) below) enable the IP401 Compact Office unit to be mounted and secured either:
• Horizontally on a shelf - leaving sufficient space for the cabling at both front and rear
of the unit.
• Vertically from a wall – with the front panel facing down only.
A Z-bracket (item (2) below, supplied with unit) is used to retain the Small unit in position.
Cautions:
1. The Z-bracket must not be used as the sole mounting fixture.
2. When mounting vertically, the weight of the IP401 Compact Office must be held by the two No 8
Panhead screws located into the retaining slots.
3. When mounted vertically, the air vents (on the rear panel of the IP401 Compact Office) must be
on the top surface. E.g. item (2) below must be fitted above the unit.
Procedure:
1. Drill two holes 16cm apart (horizontally or vertically – see Caution 3 above). Using suitable wall
fixings (wall plugs), insert two No.8, Panhead screws (25mm long min. - not supplied) into wall
leaving approximately 1cm proud of wall.
2. Fit the Z-bracket (item (2) below) onto the base of the unit using the M3 Plastite self tapping
screw supplied.
3. Slide the IP401 Compact Office unit onto the two screws, locating them into the two retaining
slots (item (1) below).
4. Mark the position of the retaining screw (No. 8 Panhead or similar – not supplied) that is to be
used through the slot of the Z-bracket .
5. Remove the unit from the wall and, using suitable wall fixings, drill a hole for the Z-bracket
retaining screw.
6. Re-position the IP401 Compact Office unit and secure with a No. 8 Panhead (or similar) through
the slot of the Z-bracket.
