IP Office Installation
Installation Manual Page 52
IP Office 2.1 40DHB0002USCL Issue 10c (11th May 2004)
Dual Modem Module
An optional Dual Modem Module is fitted to an IP Office base unit as follows:
1. CAUTION - While installing, ensure that you wear a ground wrist strap that is connected to a
suitable grounding point.
2. Remove the three fixing screws on the rear of cover.
3. Turn the unit over and remove the four fixing screws from the base.
4. Slide the cover from the unit.

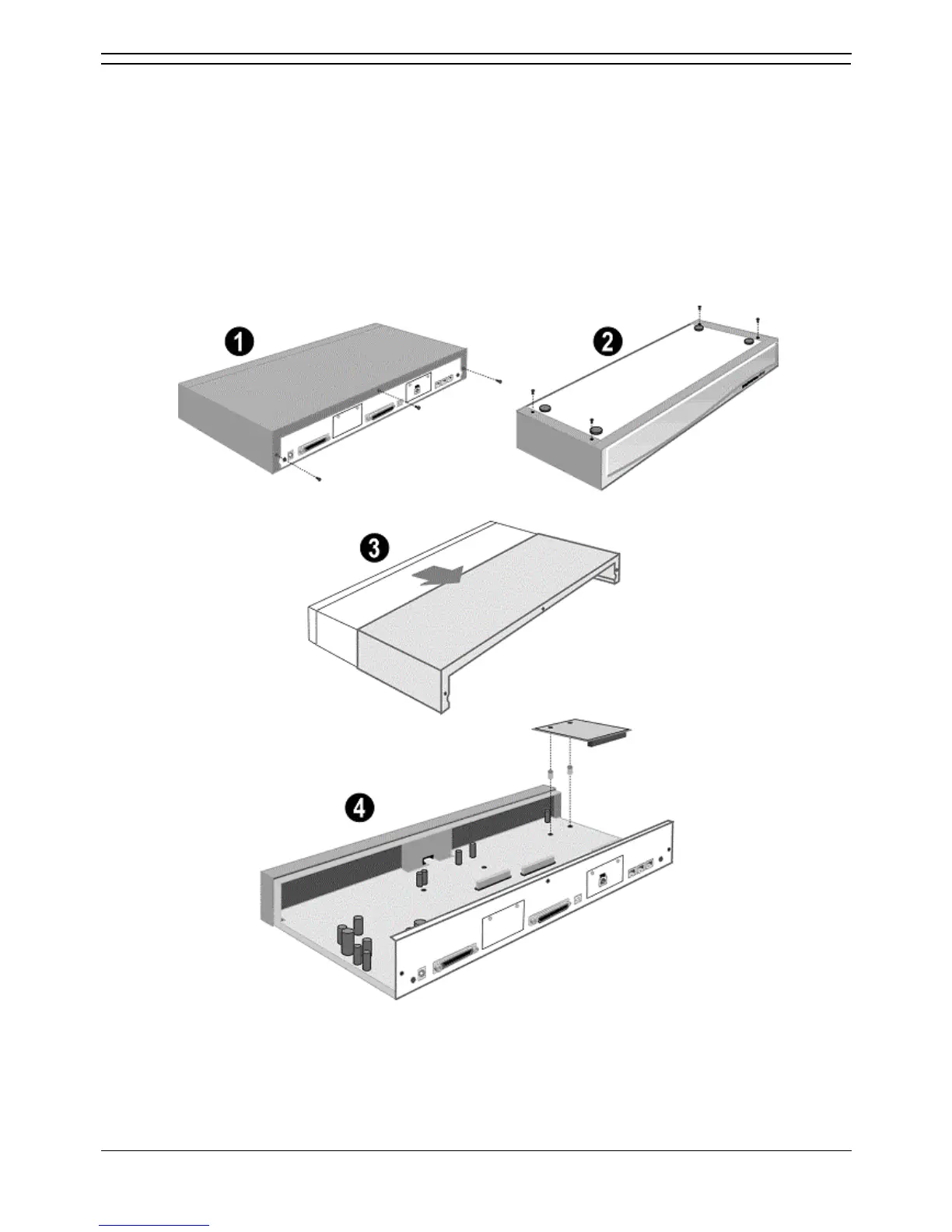

5. Mount the module in position as shown below and secure with the two snap-in spacers.
6. Replace the cover and secure with the seven fixing screws.
