Avaya IP401 - LAN Crossover Cable

Technical Data
Installation Manual Page 89
IP Office 2.1 40DHB0002USCL Issue 10c (11th May 2004)
LAN Crossover Cable
SAP Code:- 700213473

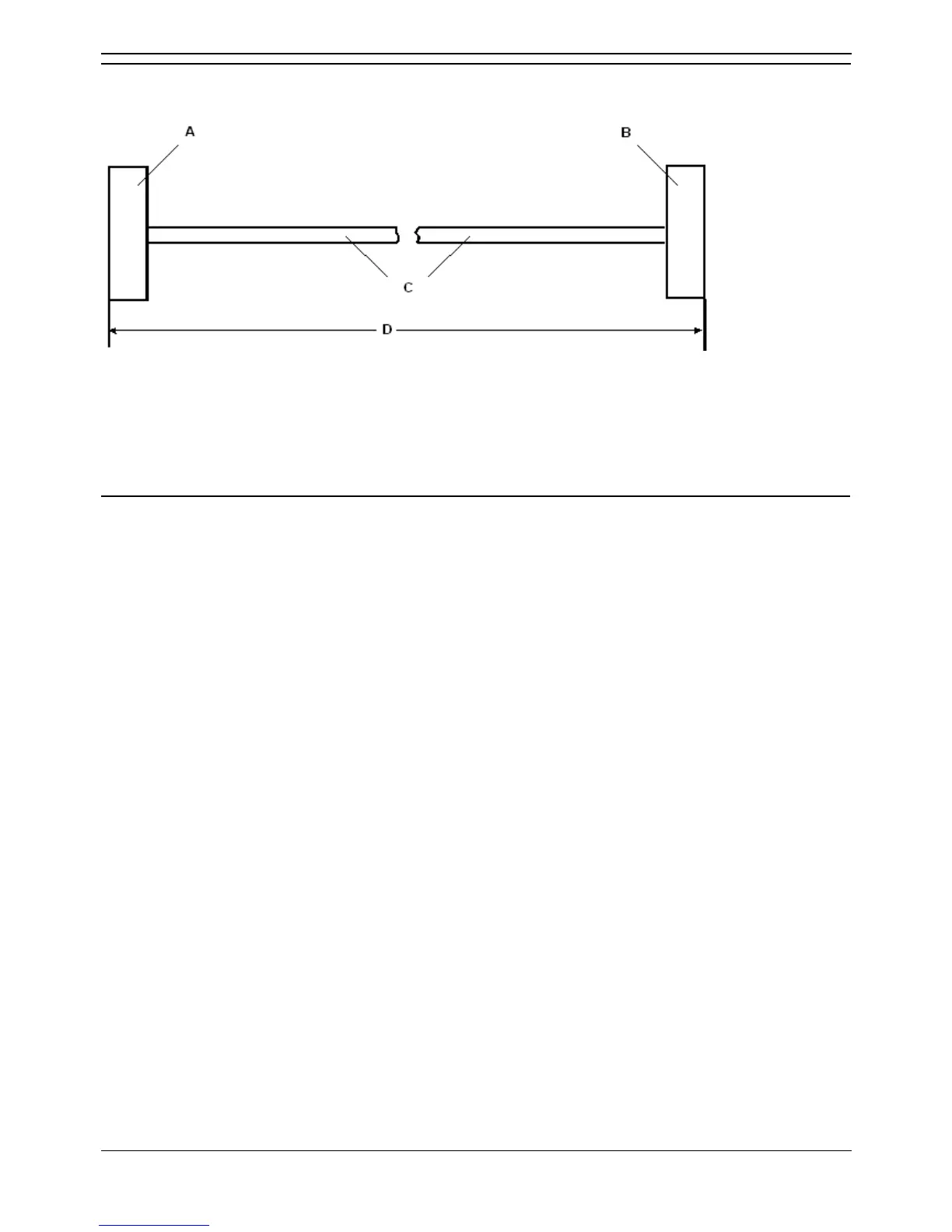

A. RJ45 Plug.
B. RJ45 Plug.
C. Cat 5 UTP cross-over cable - BLACK.
D. 3 meters/9.84ft.
Pin Connections
End A Color Cable Notes End B
1 White/Orange 3
2 Orange/White
Twisted Pair
6
3 White/Green 1
6 Green/White
Twisted Pair
2
• This cable is used when connecting Hub Ports 1-7 directly to another Hub and for connecting a
WAN3 to an IP412.
