Technical Data
Installation Manual Page 87
IP Office 2.1 40DHB0002USCL Issue 10c (11th May 2004)
LAN Interconnect Cable
SAP Code:- 700213465
Supply: The cable is supplied with the WAN3 Expansion Module.

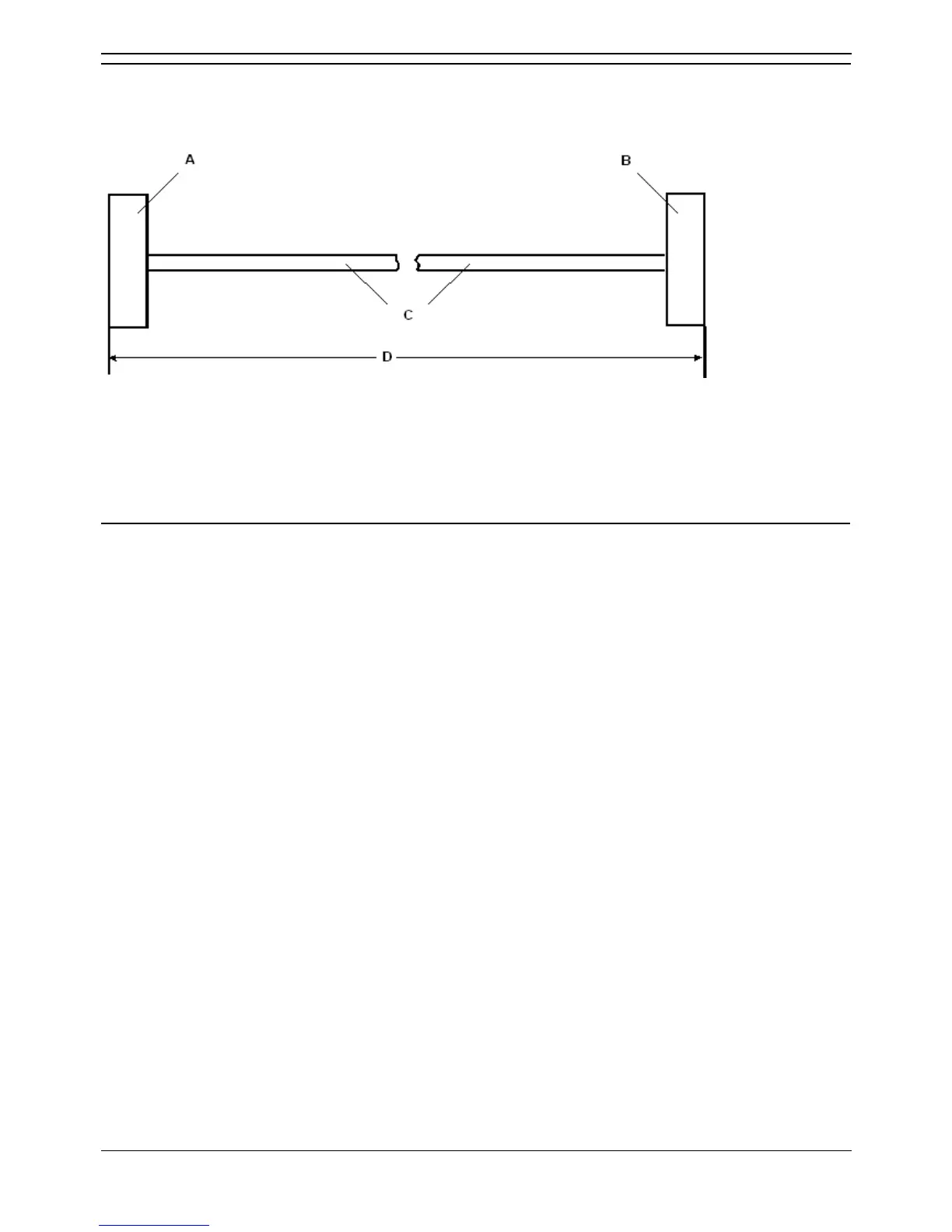

A. RJ45 Plug.
B. RJ45 Plug.
C. Cat 5 UTP cable - GREEN.
D. 1 meter/3.28ft.
Pin Connections
End A Color Cable Notes End B
1 White/Orange 1
2 Orange/White
Twisted Pair
2
3 White/Green 3
6 Green/White
Twisted Pair
4
4 Blue/White 5
5 White/Blue
Twisted Pair
6
7 White/Brown 7
8 Brown/White
Twisted Pair
8
• This cable is used:
• When connecting IP Office hub ports 1 - 7 directly to a PC.
• When connecting a WAN3 to an IP403/406 hub port which is located in the same cabinet
as the IP Office.
• Pins 4,5,7 and 8 are through connected for ease of construction. They are not actually used.
