Rack Mounting Barrier Boxes
Where more than three Avaya IP400 Phone Barrier Boxes are to be used they must be rack mounted.
Rack mounting kits are available (SAP Code 700293905) for mounting eight Avaya IP400 Phone Barrier
Boxes. A maximum of 16 Avaya IP400 Phone Barrier Boxes (using two Rack kits) can be connected to
one IP400 Phone 30 module. To rack mount up to eight Avaya IP400 Phone Barrier Boxes into a rack,
perform the following:

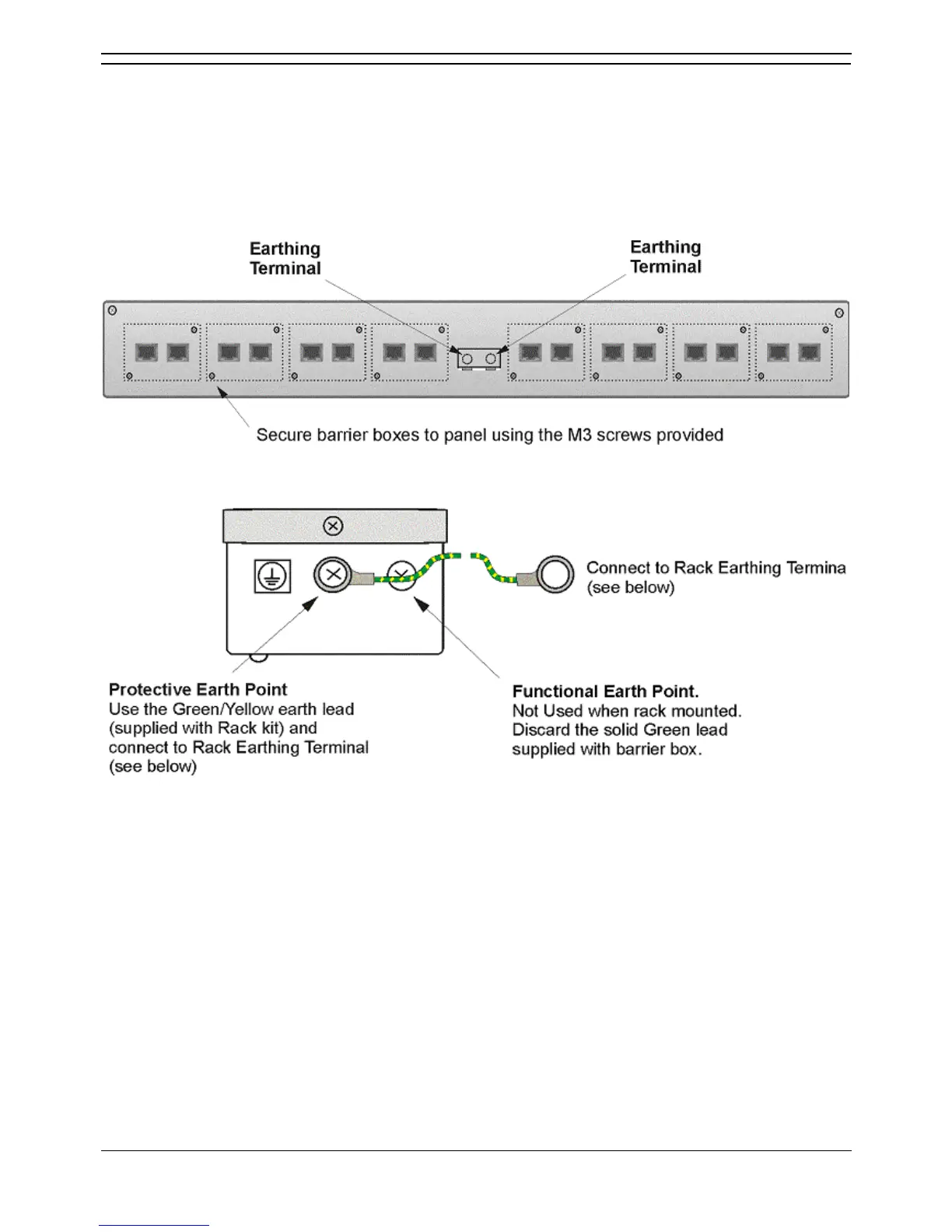

1. Mount the Barrier boxes in the rack as shown below.
2. For each Barrier Box, discard the solid green earth wire and connect the green/yellow earth wire
to the Protective Earth Point on the back of the Barrier Box.
