AVer CAM520 Pro - Page 22

14

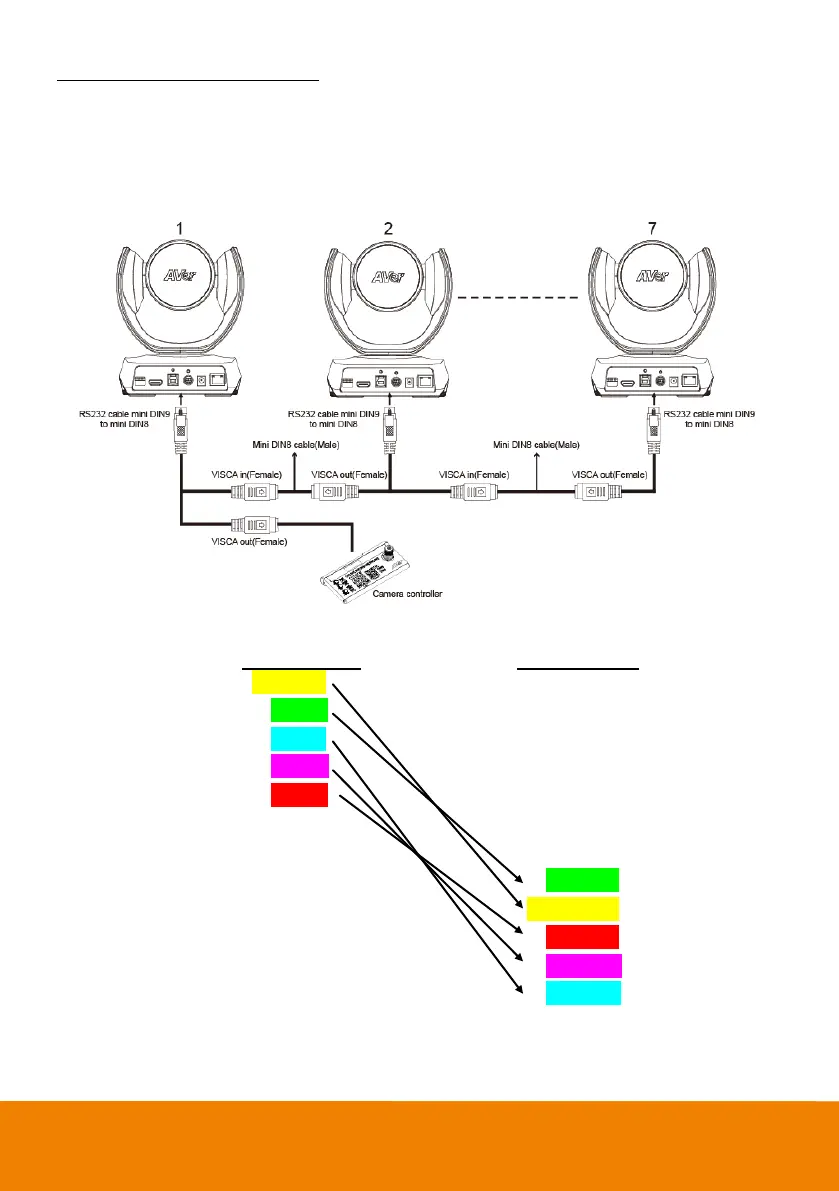

Us e the RS232 DIN9 to DIN8 cable
Total can connect up to 7 cameras.
To facilitate the camera cascade, users can purchase AVer RS232 adaptor cable.
Connect camera w ith AVer mini DIN9 to mini DIN8 adaptor cable. Connect the mini DIN8 female side
to male mini DIN8 Visca cable (Users have to buy it in the market) and then connect AVer mini DIN9 to
mini DIN8 adaptor cable again to connect to next camera.
Camera 1
(Mini DIN8)
Camera 2
(Mini DIN8)
1. DTR(IN)
1. DTR(IN)
2. DSR(IN)
2. DST(IN)
3. TXD(IN)
3. TXD(IN)
4. GND(IN)
4. GND(IN)
5. RXD(IN)
5. RXD(IN)
6. GND(IN)
6. GND(IN)
1. DTR(OUT)
1. DTR(OUT)
2. DSR(OUT)
2. DST(OUT)
3. TXD(OUT)
3. TXD(OUT)
4. GND(OUT)
4. GND(OUT)
5. RXD(OUT)
5. RXD(OUT)
6. GND(OUT)
6. GND(OUT)
