RS232 Connection

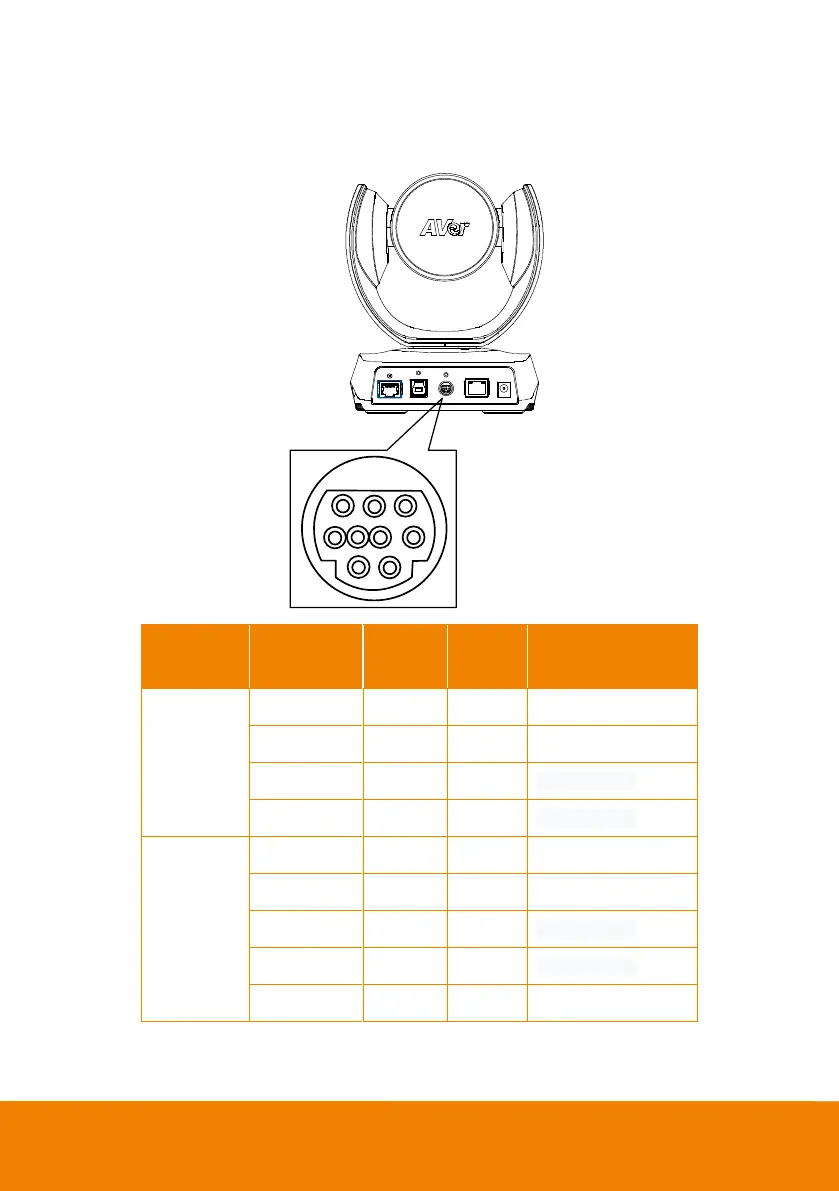

 Camera RS232 Port Pin Definition
1
2
3456
789
Function
Mini DIN9
PIN #
I/O Type
Signal
Description
VISCA IN
1
Output
DTR
Data Terminal Ready
2
Input
DSR
Data Set Ready
3
Output
TXD
Transmit Data
6
Input
RXD
Receiver Data
VISCA OUT
7
Output
DTR
Data Terminal Ready
4
Input
DSR
Data Set Ready
8
Output
TXD
Transmit Data
9
Input
RXD
Receiver Data
5
---
---
Not connect

