 Computer/Keyboard Controller and Camera Connection

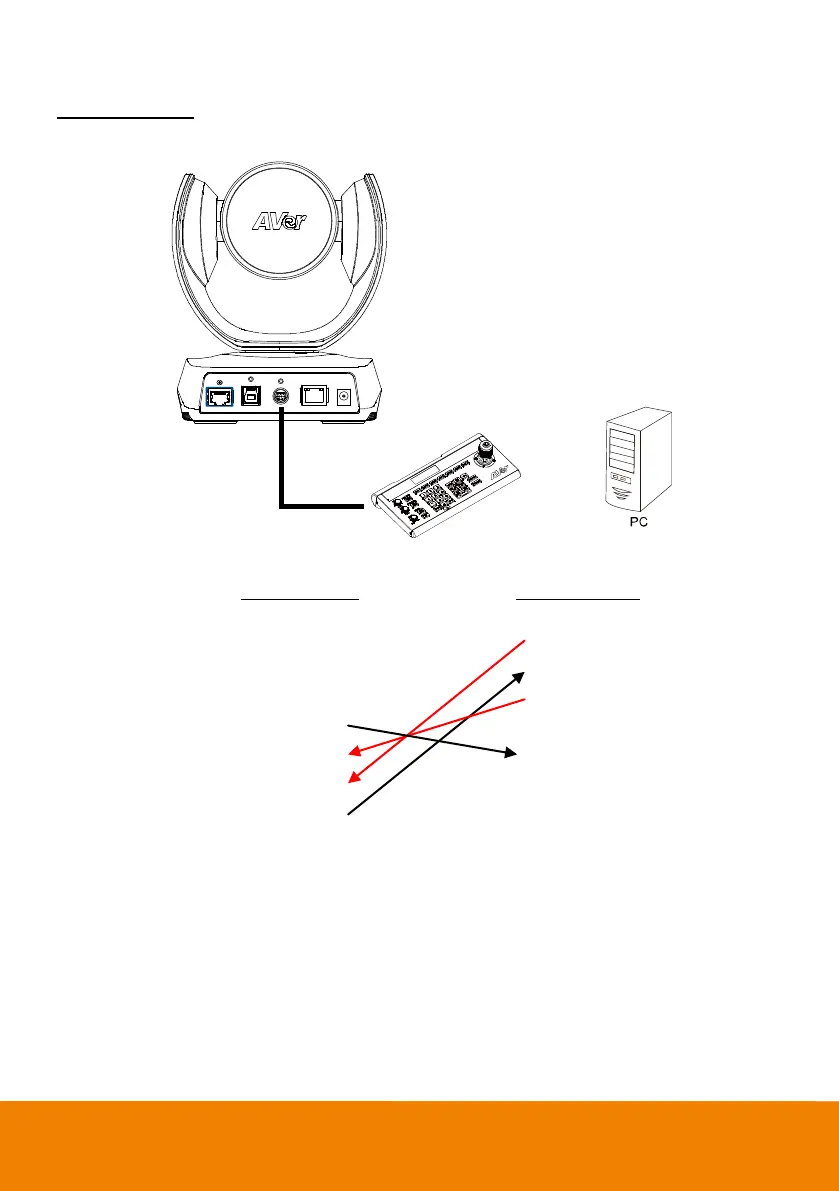

Direct Connection
If users don’t buy AVer RS232 adaptor cable, please refer to the pin connection shown below.
Camera controller
or
Mini DIN9 Cable
Camera
(Mini DIN9)
Controller/PC
(DB9)
1. DTR(IN)
1. DCD
2. DSR(IN)
2. RXD
3. TXD(IN)
3. TXD
6. RXD(IN)
4. DTR
7. DTR(OUT)
5. GND
4. DSR(OUT)
6. DSR
8. TXD(OUT)
7. RTS
9. RXD(OUT)
8. CTX
9. RI
