13

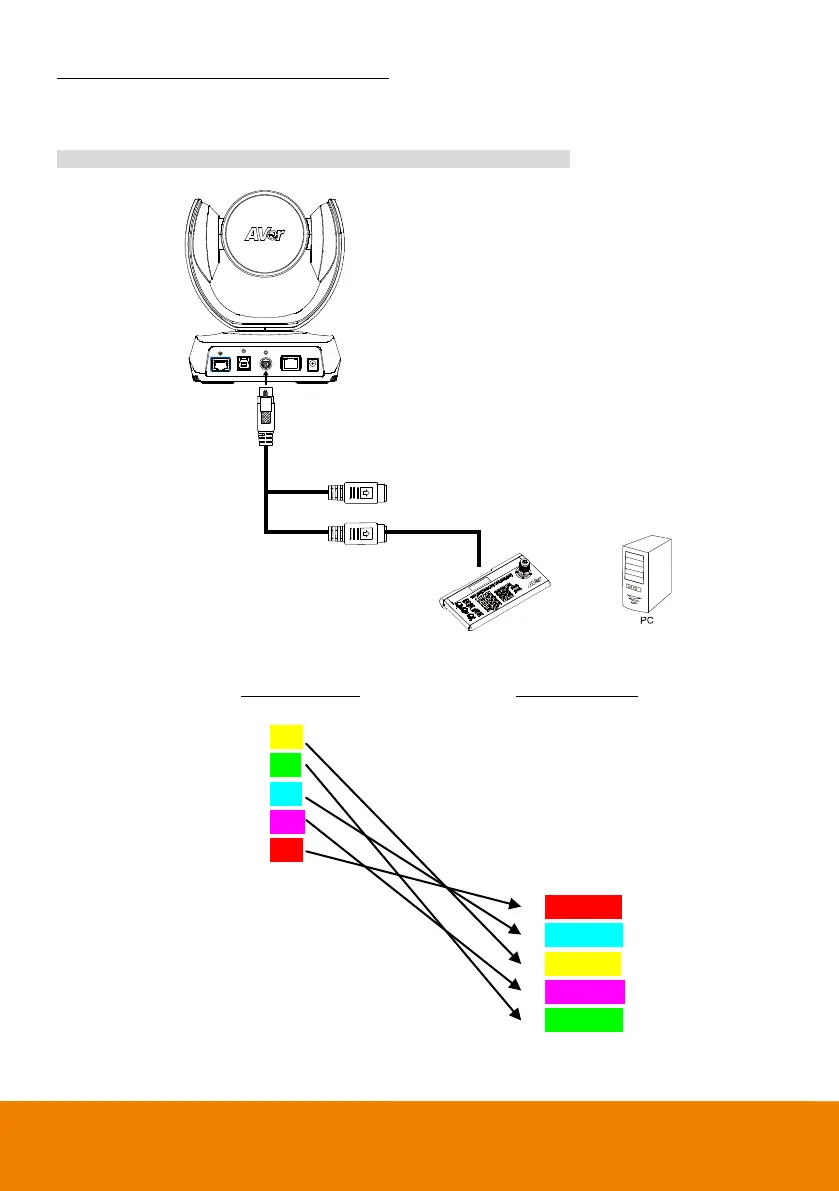

Use the RS232 mini DIN9 to mini DIN8 cable (Sold separately. Please purchase from AVer.).
Users can purchase AVer RS232 min DIN9 to mini DIN8 adaptor cable* to connect with Computer or
keyboard/controller.
* RS232 (mini DIN9 to mini DIN8) adaptor cable (PN: 064AOTHERCDC)
VISCA out(Female)
VISCA in(Female)
Camera controller
RS232 mini DIN9
to mini DIN8 cable
or
Mini DIN8
to DB9 cable
Controller/PC
(DB9)
Camera
(Mini DIN8)
1. DCD
1. DTR(IN)
2. RXD
2. DSR(IN)
3. TXD
3. TXD(IN)
4. DTR
4. GND(IN)
5. GND
5. RXD(IN)
6. DSR
6. GND(IN)
7. RTS
8. CTX
1. DTR(OUT)
9. RI
2. DSR(OUT)
3. TXD(OUT)
4. GND(OUT)
5. RXD(OUT)
6. GND(OUT)
